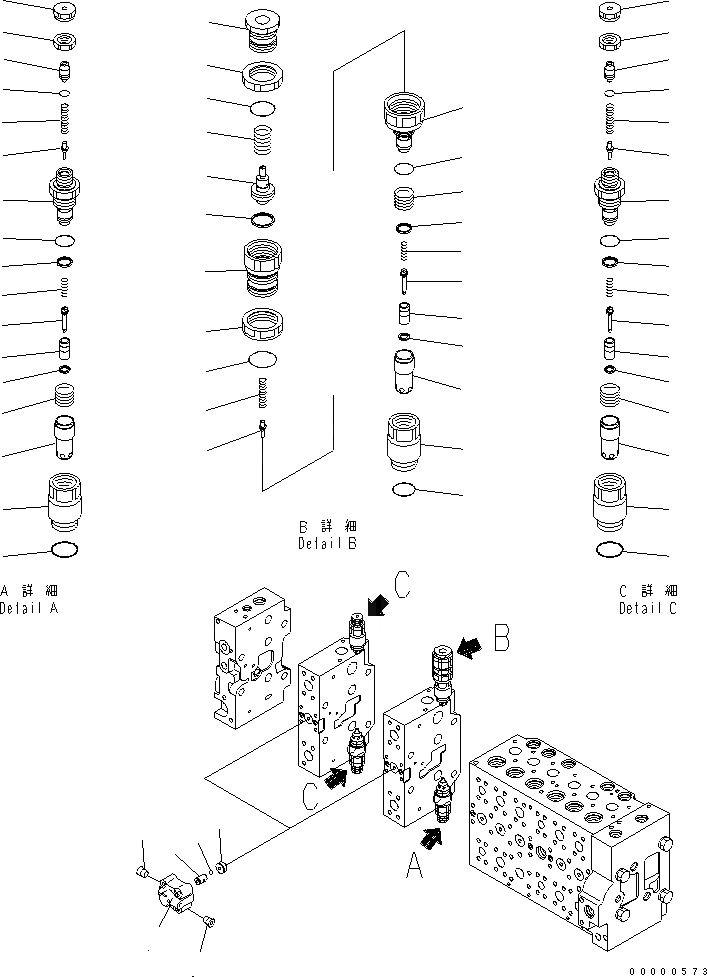

Запчасти Komatsu PC210NLC-7K ОСНОВН. КЛАПАН (-АКТУАТОР) (/) (ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ)(№K-K) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-48-23600

VALVE ASS'Y

|1

723-40-66300

VALVE ASS'Y

1

CASE

2

SEAT

3

SEAT

4

BALL

5

PLUG

|6

723-40-91300

VALVE ASS'Y,SUCTION AND SAFETY

6

SLEEVE

7

SLEEVE

8

POPPET

9

PISTON

10

PLUG

11

POPPET

12

SPACER

13

SPRING

14

SPRING

15

SPRING

16

SEAL

17

SEAL

18

709-25-11390

O-RING

19

O-RING

20

O-RING

21

NUT

22

NUT

|23

723-90-76101

VALVE ASS'Y,SUCTION AND SAFETY

23

SLEEVE

24

SLEEVE

25

POPPET

26

SEAL

27

PISTON

28

SLEEVE

29

POPPET

30

UNION

31

PISTON

32

SPRING

33

SPRING

34

SPRING

35

SEAL

36

SEAL

37

07000-13024

O-RING

38

O-RING

39

NUT

40

NUT

41

HOLDER

42

O-RING

43

SPRING

44

O-RING

|45

723-40-91200

VALVE ASS'Y,SUCTION AND SAFETY

45

SLEEVE

46

SLEEVE

47

POPPET

48

PISTON

49

PLUG

50

POPPET

51

SPACER

52

SPRING

53

SPRING

54

SPRING

55

SEAL

56

SEAL

57

709-25-11390

O-RING

58

O-RING

59

O-RING

60

NUT

61

NUT
