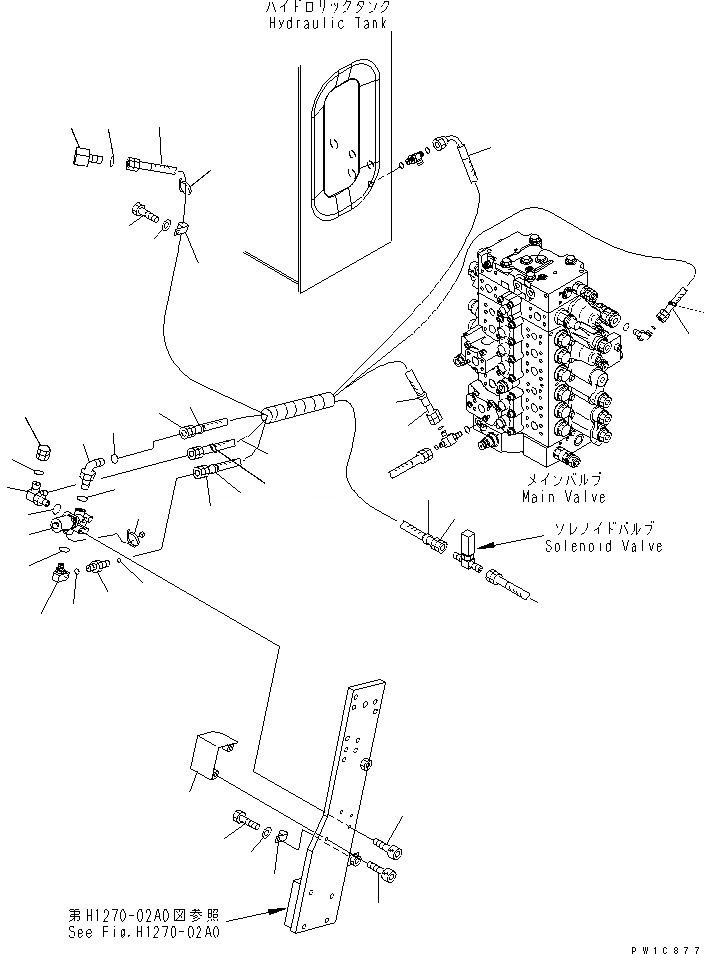

Запчасти Komatsu PC210MH-8 НАВЕСНОЕ ОБОРУД-Е (СОЛЕНОИДНЫЙ КЛАПАН) TABLE OF CONTENTS PCMH-8

1

07376-70210

PLUG

2

02896-11008

O-RING

3

08034-20834

BAND

4

02789-10210

PLUG

10

20Y-60-32110

VALVE ASSEMBLY

11

01252-80825

BOLT

12

21W-62-43960

ELBOW

13

02896-11008

O-RING

14

07002-11423

O-RING

15

20Y-62-43580

ELBOW

16

02896-11008

O-RING

17

07002-11423

O-RING

18

20F-61-12460

ELBOW

19

07002-11423

O-RING

20

11Y-62-12130

NIPPLE

21

02896-11008

O-RING

22

07002-11423

O-RING

23

20Y-62-43263

FRAME

23

20Y-62-43530

COVER

24

01252-80825

BOLT

25

04434-50612

CLIP

26

01010-81225

BOLT

27

01643-31232

WASHER

29

02760-002A6

HOSE

30

02760-00212

HOSE

31

02760-00216

HOSE

32

02761-00221

HOSE

33

20Y-62-22790

BAND, RED

34A

20Y-62-22820

BAND, BLUE

34B

20Y-62-22850

BAND, GREEN

35

04434-51212

CLIP

36

01010-81225

BOLT

37

01643-31232

WASHER

38

08034-20536

BAND
