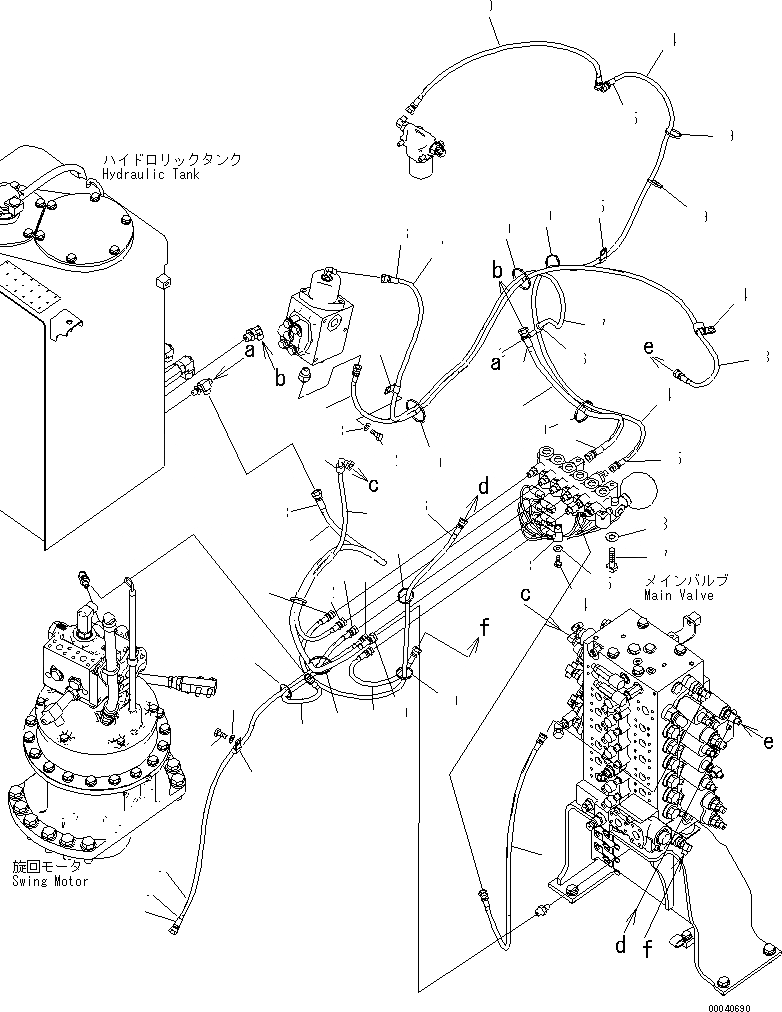

Запчасти Komatsu PC210LC-8K СОЛЕНОИДНЫЙ КЛАПАН (ПАТРУБКИ И КОРПУС) H ГИДРАВЛИКА

1

208-62-72310

HOSE, 950MM

2

20Y-62-22790

BAND, RED

3

20Y-62-22810

BAND, YELLOW

4

20Y-62-51930

HOSE

5

20Y-62-58230

HOSE

6

08034-20823

BAND

7

20Y-62-51980

HOSE, 550MM

|7

20Y-62-51872

HOSE, 600MM

8

08034-20823

BAND

9

20Y-62-51910

HOSE

10

20Y-62-51260

HOSE

11

20Y-62-22860

BAND, BROWN

12

20Y-62-51960

HOSE

13

20Y-62-22810

BAND, YELLOW

14

20Y-62-52110

HOSE

15

08034-20823

BAND

16

208-62-72480

HOSE, 1080MM

17

01010-81085

BOLT

18

01643-31032

WASHER

19

08034-20536

BAND

20

04434-51010

CLIP

21

01010-81020

BOLT

22

01643-31032

WASHER

23

04434-51512

CLIP

24

01010-81225

BOLT

25

01643-31232

WASHER

26

20Y-62-22820

BAND, BLUE

27

02761-00218

HOSE

28

02760-00219

HOSE, 1900MM

29

08034-20823

BAND

30

208-62-71670

HOSE, 550MM

31

04434-51212

CLIP

32

01010-81225

BOLT

33

01643-31232

WASHER

34

04434-52512

CLIP

|34

04434-52212

CLIP

35

04434-51212

CLIP

|35

04434-51012

CLIP
