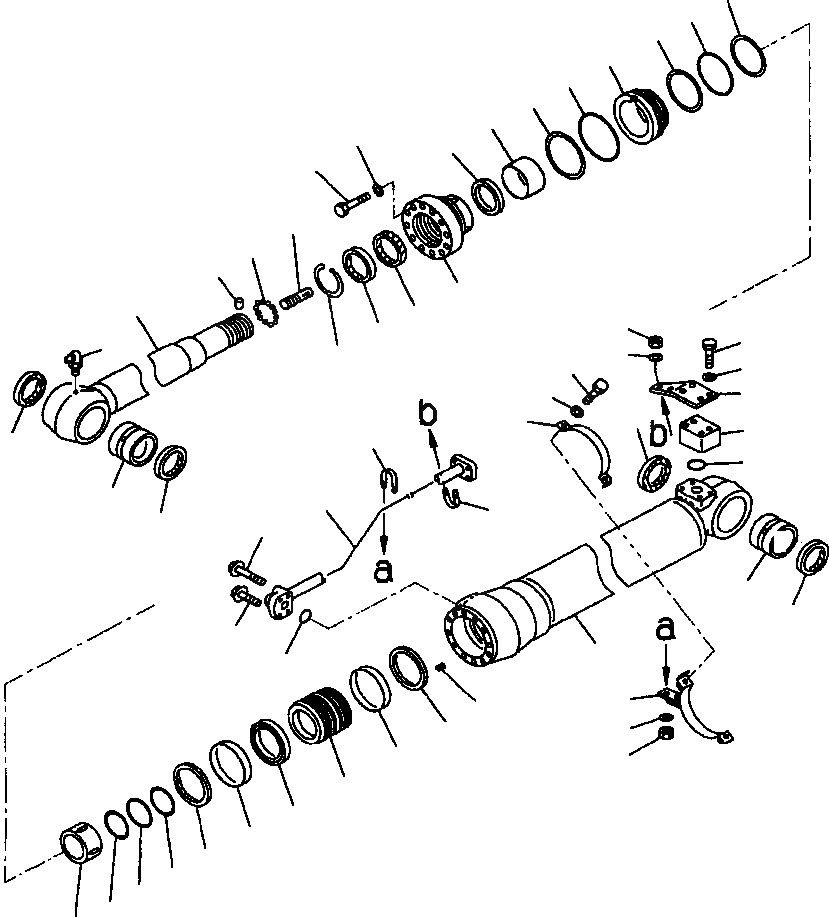

Запчасти Komatsu PC210LC-6LE FIG NO. T- ЦИЛИНДР РУКОЯТИ РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

205-63-03121

CYLINDER ASSEMBLY

1

205-63-61141

CYLINDER

2

707-76-80010

BUSHING

3

07145-00080

SEAL, DUST

4

205-63-61121

ROD, PISTON

5

707-27-13961

HEAD, CYLINDER

6

07179-13109

RING, SNAP

7

707-56-95510

SEAL, DUST

8

707-52-90720

BUSHING

9

707-51-95030

PACKING ROD

10

07000-15125

O-RING

11

707-35-91370

RING, BACK-UP

12

707-51-95630

RING, BUFFER

13

01010-81875

BOLT

14

707-41-11840

WASHER

15

707-36-13731

PISTON

16

707-44-13280

RING, PISTON

17

707-39-13510

RING, WEAR

18

707-44-13920

RING

19

707-71-61040

PLUNGER

20

07000-15085

O-RING

21

707-35-90960

RING, BACK-UP

22

01310-01216

SCREW

23

707-71-60230

PLUNGER

24

07020-00900

FITTING GREASE

25

707-71-32770

COLLAR

26

707-35-91370

RING, BACK-UP

27

07000-15125

O-RING

28

04260-00635

BALL

29

707-71-91270

CAP

30

205-63-61171

TUBE

31

20D-62-17860

ELBOW

32

01435-01055

BOLT

33

01435-01040

BOLT

34

07000-13030

O-RING

35

01010-81080

BOLT

36

01643-31032

WASHER

37

07000-13035

O-RING

38

707-88-95341

BRACKET

39

707-88-95320

BAND

40

01010-81035

BOLT

41

01643-51032

WASHER

42

707-88-11560

PLATE

43

07283-22738

CLIP

44

01599-01011

NUT

45

01643-31032

WASHER
