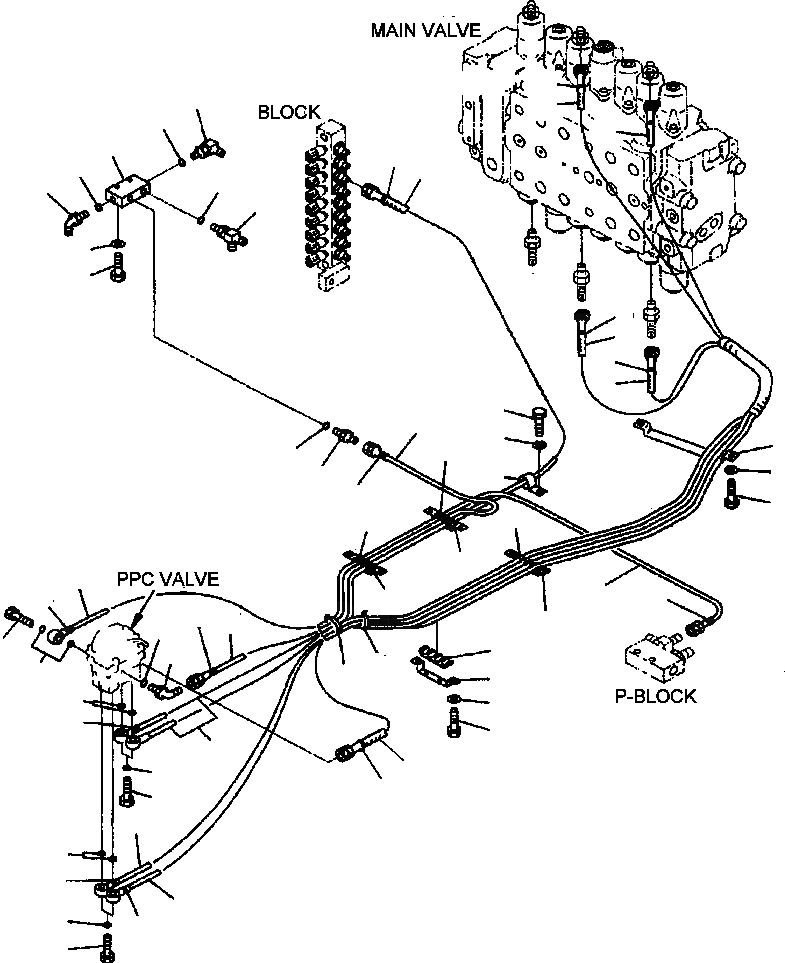

Запчасти Komatsu PC210LC-6LE FIG NO. K-A ГИДРОЛИНИЯ PPC ЛИНИЯ ХОДА ДЛЯ АКТУАТОР КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$0

20Y-62-27111

HOSE ASSEMBLY

1

08034-00536

BAND

2

20Y-62-27120

HOSE

3

20Y-62-22790

BAND, RED

4

20Y-62-27130

HOSE

5

20Y-62-22850

BAND, GREEN

6

20Y-62-27140

HOSE

7

20Y-62-22820

BAND, BLUE

8

20Y-62-22170

CLAMP

|$9

20Y-62-27170

HOSE ASSEMBLY

9

20Y-62-22871

HOSE

10

20Y-62-22790

BAND, RED

11

20Y-62-22881

HOSE

12

20Y-62-22820

BAND, BLUE

13

20Y-62-23282

HOSE

14

20Y-62-22830

BAND, WHITE

15

20Y-62-22170

CLAMP

16

702-16-53240

PLUG

17

07000-02018

O-RING

18

07235-10210

ELBOW

19

07002-01423

O-RING

20

08034-00519

BAND

21

20Y-62-16170

BOLT

22

07000-02015

O-RING

23

04434-51312

CLIP

24

01010-81020

BOLT

25

01643-31032

WASHER

26

20Y-62-22180

CLAMP

27

01010-81016

BOLT

28

01643-31032

WASHER

29

207-62-62270

CLAMP

30

20Y-62-15831

BLOCK, TRAVEL (T-BLOCK)

31

207-62-33920

ELBOW

32

07002-01423

O-RING

33

07235-10210

ELBOW

34

07002-01423

O-RING

35

07230-20210

UNION

36

07002-01423

O-RING

37

208-62-17550

TEE

38

07002-01423

O-RING

39

01010-81045

BOLT

40

01643-31032

WASHER
