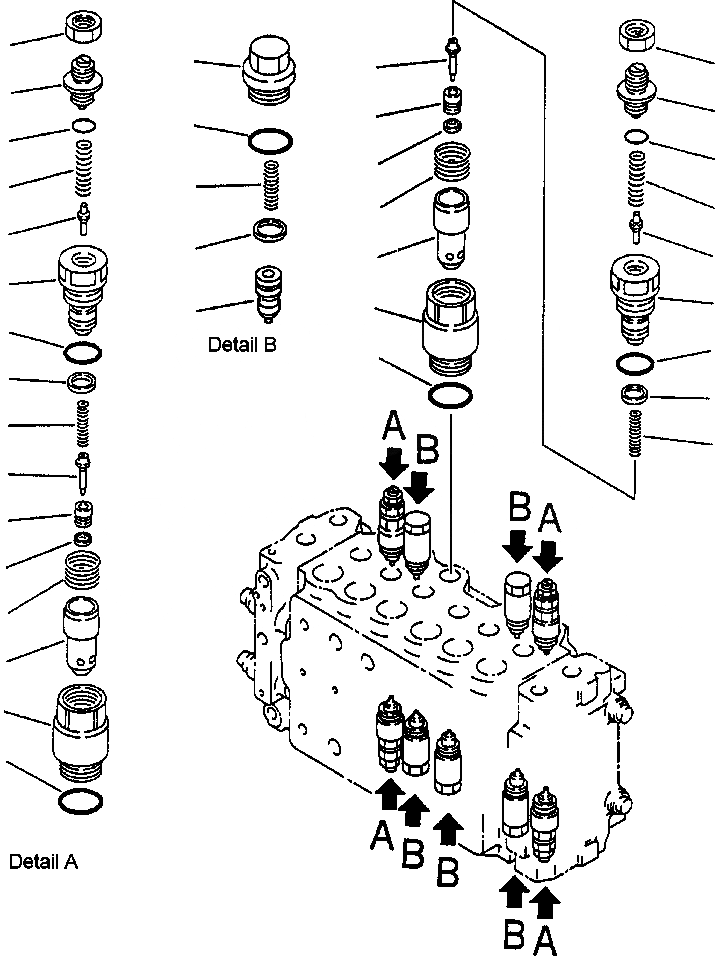

Запчасти Komatsu PC210LC-6L FIG NO. H-9A ОСНОВН. КЛАПАН (9/9) ВСАСЫАЮЩИЙ КЛАПАН БЕЗОПАСНОСТИ И ВСАСЫВ. КЛАПАН PCLC- заводской номер A8 И UP ГИДРАВЛИКА

|$1

709-70-74302

VALVE ASSEMBLY, SUCTION AND SAFETY

|$2

709-70-74203

VALVE ASSEMBLY, SUCTION AND SAFETY

1

709-70-71112

SLEEVE

2

709-70-71121

SLEEVE

3

709-70-71630

POPPET

4

709-70-71640

PISTON

5

709-70-71152

PLUG

6

709-70-71162

POPPET

7

709-70-71172

SLEEVE

8

709-70-71210

SPRING

9

709-70-71220

SPRING

10

709-70-71231

SPRING

11

709-70-71610

SEAL

12

700-20-71260

SEAL

13

709-25-11390

O-RING

14

07002-02434

O-RING

15

07002-01423

O-RING

16

01583-11408

NUT

|$19

723-40-85100

VALVE ASSEMBLY, SUCTION

17

723-40-85110

SLEEVE

18

NSS

VALVE

19

723-40-85130

SPRING

20

NSS

SEAL

21

709-25-11390

O-RING

|$1

709-70-74302

VALVE ASSEMBLY, SUCTION AND SAFETY

|$2

709-70-74203

VALVE ASSEMBLY, SUCTION AND SAFETY

1

709-70-71112

SLEEVE

2

709-70-71121

SLEEVE

3

709-70-71630

POPPET

4

709-70-71640

PISTON

5

709-70-71152

PLUG

6

709-70-71162

POPPET

7

709-70-71172

SLEEVE

8

709-70-71210

SPRING

9

709-70-71220

SPRING

10

709-70-71231

SPRING

11

709-70-71610

SEAL

12

700-20-71260

SEAL

13

709-25-11390

O-RING

14

07002-02434

O-RING

15

07002-01423

O-RING

16

01583-11408

NUT

|$19

723-40-85100

VALVE ASSEMBLY, SUCTION

17

723-40-85110

SLEEVE

18

NSS

VALVE

19

723-40-85130

SPRING

20

NSS

SEAL

21

709-25-11390

O-RING
