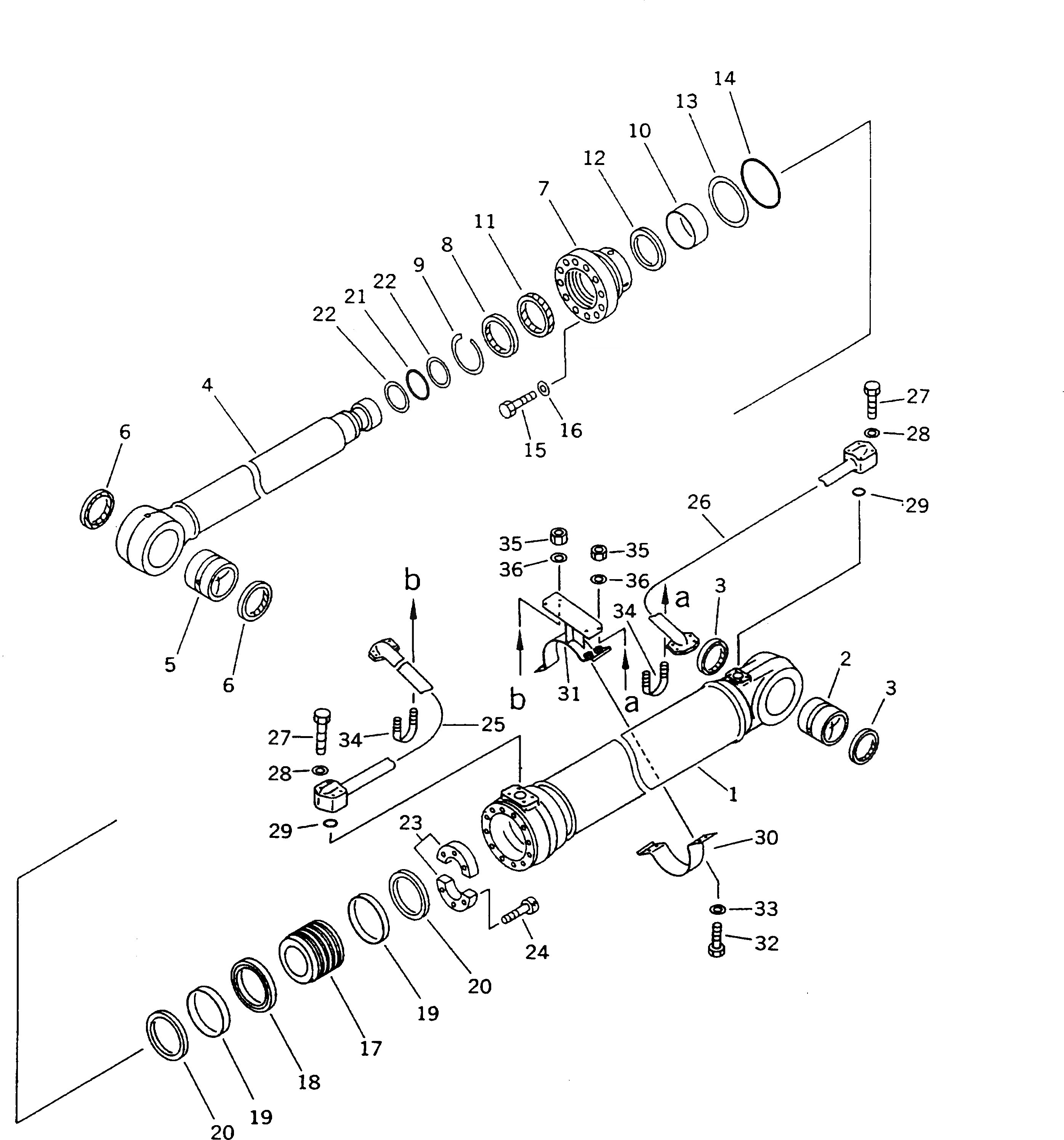

Запчасти Komatsu PC210LC-6K ЦИЛИНДР 2-Й СТРЕЛЫ (2-СЕКЦИОНН. СТРЕЛА) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

205-63-K1370

BOOM CYLINDER ASS'Y

1

205-63-K1460

CYLINDER

2

707-76-10130

BUSHING

3

07145-00100

SEAL,DUST (KIT)

4

205-63-K1470

ROD

5

707-76-10130

BUSHING

6

07145-00100

SEAL,DUST (KIT)

7

707-27-16620

HEAD

8

198-63-94170

SEAL,DUST (KIT)

9

07179-13126

RING,SNAP

10

707-52-90860

BUSHING

11

707-51-11030

PACKING,ROD (KIT)

12

707-51-11630

RING,BUFFER (KIT)

13

07001-05155

RING,BACK-UP (KIT)

14

07000-15155

O-RING (KIT)

15

01010-82085

BOLT

16

707-88-75310

WASHER

17

707-36-16320

PISTON

18

707-44-16180

RING,PISTON (KIT)

19

707-39-16820

RING,WEAR (KIT)

20

707-44-16910

RING

21

07000-12090

O-RING (KIT)

22

707-35-52930

RING,BACK-UP (KIT)

23

707-40-16870

SPACER

24

01252-31450

BOLT

25

20Y-63-52570

TUBE

26

20Y-63-52580

TUBE

27

01010-51060

BOLT

28

01643-51032

WASHER

29

07000-13035

O-RING (KIT)

30

20Y-63-52591

BRACKET

31

707-88-95770

BAND

32

01010-51240

BOLT

33

01643-51232

WASHER

34

07283-23442

CLIP

35

01599-01011

NUT

36

01643-31232

WASHER
