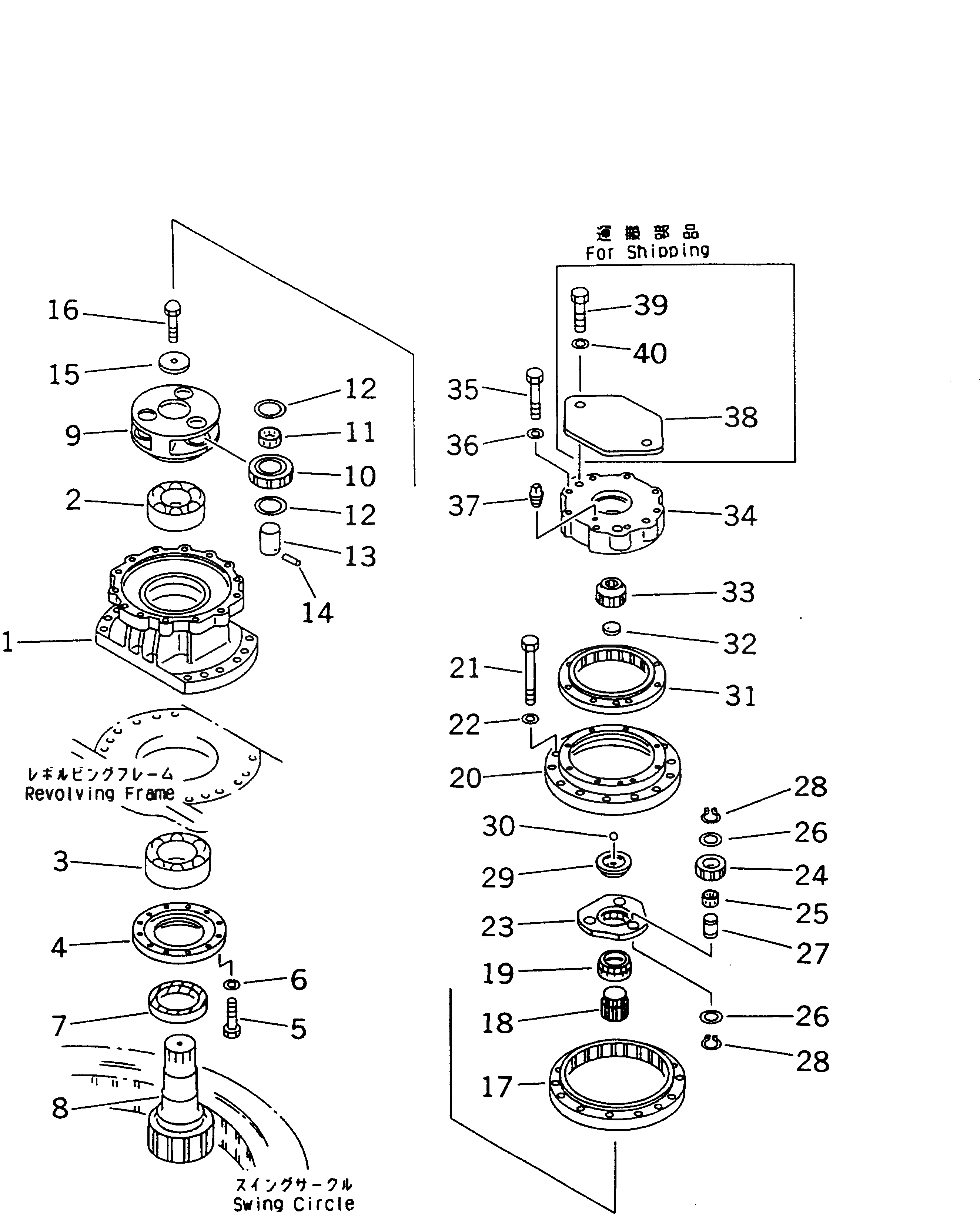

Запчасти Komatsu PC210LC-6K МЕХАНИЗМ ПОВОРОТА (/)(№K-K8) ПОВОРОТН. КРУГ И КОМПОНЕНТЫ

|1

20Y-26-K1100

SWING MACHINERY A.

1

CASE

2

06000-22218

BEARING

3

06000-22319

BEARING

4

20Y-26-13291

COVER

5

01010-51045

BOLT

6

01643-31032

WASHER

7

07012-00125

SEAL,OIL

8

20Y-26-21140

SHAFT

9

20Y-26-21160

CARRIER

10

20Y-26-21220

GEAR

11

20Y-26-21290

BEARING

12

20Y-27-21250

WASHER,THRUST

13

20Y-26-21320

PIN

14

20Y-26-21330

PIN

15

20Y-26-21240

PLATE

16

112-32-11211

BOLT¤ SHOE

17

20Y-26-21230

GEAR,RING

18

20Y-26-21210

GEAR,SUN

19

20Y-26-21270

COUPLING

20

20Y-26-21120

CASE

21

01011-51605

BOLT

22

01643-31645

WASHER

23

20Y-26-21150

CARRIER

24

20Y-26-21180

GEAR

25

20Y-26-21280

BEARING

26

20Y-27-21240

WASHER,THRUST

27

20Y-26-21310

PIN

28

04064-03515

RING,SNAP

29

20Y-26-21250

HOLDER

30

04260-01270

BALL

31

20Y-26-21190

GEAR,RING

32

20Y-26-21260

PLATE

33

20Y-26-21170

GEAR

34

COVER

35

01011-51205

BOLT

36

01643-31232

WASHER

37

07042-30108

PLUG

38

20Y-26-14311

COVER,(FOR SUPPLY ONLY)

39

01010-52055

BOLT,(FOR SUPPLY ONLY)

40

01643-32060

WASHER,(FOR SUPPLY ONLY)
