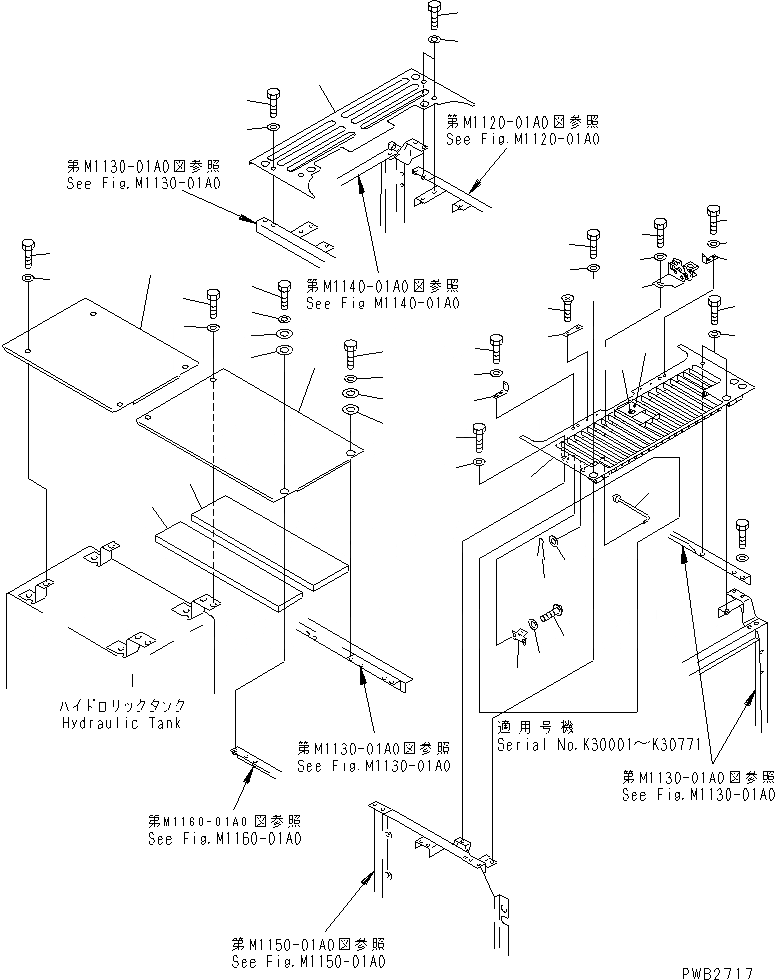

Запчасти Komatsu PC210LC-6K КРЫШКА(КАБИНА) (ВЕРХН.)(№K-K999) ЧАСТИ КОРПУСА
№
Артикул
Название
Примечание
Количество
|1
20Y-54-K8880
COVER ASS'Y
1
20Y-54-K8670
COVER
2
20Y-54-32470
SHEET
3
20Y-54-32460
SHEET
4
01010-51230
BOLT
5
175-54-34170
WASHER
6
01010-51230
BOLT
7
01643-31232
WASHER
8
20Y-54-19930
COLLAR
9
20Y-54-19920
PLATE
10
20Y-54-K8681
COVER
|10
20Y-54-K8680
COVER
11
21P-54-K3824
COVER
|11
20Y-54-K7702
COVER
|11
20Y-54-K7701
COVER
11A
20Y-54-27502
LOCK ASS'Y
12
20Y-54-27531
LOCK
13
20Y-54-27540
LOCK ASS'Y
14
01010-51025
BOLT
15
01643-31032
WASHER
16
21P-54-K4810
BRACKET
16A
21P-54-K4820
BRACKET
17
01010-51025
BOLT
18
01643-31032
WASHER
19
205-54-68440
PLATE
20
01224-40616
SCREW
21
20Y-54-32350
BAR
22
04050-13018
PIN
23
01643-51032
WASHER
24
20B-54-12210
SPRING
25
01220-40408
SCREW
26
01641-20405
WASHER
27
01010-51230
BOLT
28
175-54-34170
WASHER
29
20Y-54-32440
COVER
30
01010-51230
BOLT
31
175-54-34170
WASHER
32
01010-51230
BOLT
|32
01010-51230
BOLT
33
01643-31232
WASHER
|33
01643-31232
WASHER
|1
20Y-54-K8880
COVER ASS'Y
1
20Y-54-K8670
COVER
2
20Y-54-32470
SHEET
3
20Y-54-32460
SHEET
4
01010-51230
BOLT
5
175-54-34170
WASHER
6
01010-51230
BOLT
7
01643-31232
WASHER
8
20Y-54-19930
COLLAR
9
20Y-54-19920
PLATE
10
20Y-54-K8681
COVER
|10
20Y-54-K8680
COVER
11
21P-54-K3824
COVER
|11
20Y-54-K7702
COVER
|11
20Y-54-K7701
COVER
11A
20Y-54-27502
LOCK ASS'Y
12
20Y-54-27531
LOCK
13
20Y-54-27540
LOCK ASS'Y
14
01010-51025
BOLT
15
01643-31032
WASHER
16
21P-54-K4810
BRACKET
16A
21P-54-K4820
BRACKET
17
01010-51025
BOLT
18
01643-31032
WASHER
19
205-54-68440
PLATE
20
01224-40616
SCREW
21
20Y-54-32350
BAR
22
04050-13018
PIN
23
01643-51032
WASHER
24
20B-54-12210
SPRING
25
01220-40408
SCREW
26
01641-20405
WASHER
27
01010-51230
BOLT
28
175-54-34170
WASHER
29
20Y-54-32440
COVER
30
01010-51230
BOLT
31
175-54-34170
WASHER
32
01010-51230
BOLT
|32
01010-51230
BOLT
33
01643-31232
WASHER
|33
01643-31232
WASHER
Выбрано товаров: 82
