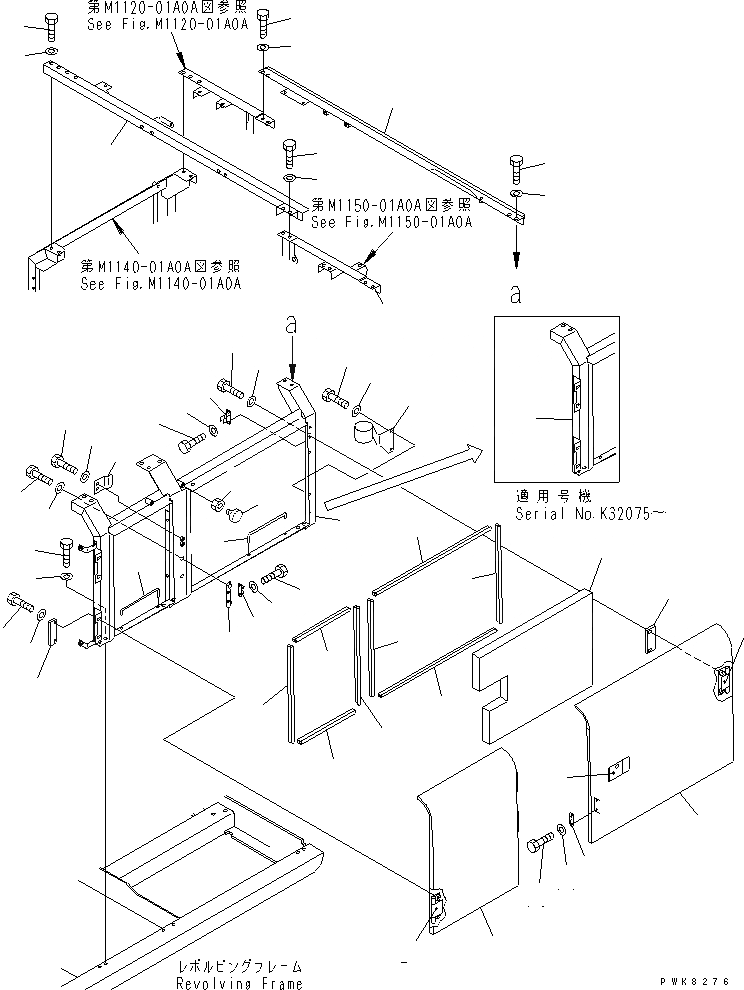

Запчасти Komatsu PC210LC-6K ЛЕВ. ДВЕРЬ (ДВЕРЬ) (КАБИНА)(№K-K) ЧАСТИ КОРПУСА

1

20Y-54-K7533

COVER

2

20Y-54-K7450

HINGE (WELDED)

3

20Y-54-28390

PLATE

4

01010-81235

BOLT

5

01643-31232

WASHER

6

20Y-54-K7414

COVER

|6

20Y-54-K7413

COVER

7

20Y-54-K7450

HINGE (WELDED)

8

198-54-41982

LOCK ASS'Y

9

205-54-53550

DOVE TAIL

10

01010-80612

BOLT

11

01643-30623

WASHER

12

01010-81235

BOLT

13

01643-31232

WASHER

14

01010-81240

BOLT

15

01643-31232

WASHER

16

20Y-54-28291

PLATE

17

20Y-54-K6540

FRAME

|17

20Y-54-25311

FRAME

18

20Y-54-28170

BRACKET

19

01010-81230

BOLT

20

01643-31232

WASHER

21

205-54-51970

DOVE TAIL

22

01010-80616

BOLT

23

01643-30623

WASHER

24

20Y-54-K7421

PLATE

25

01010-81225

BOLT

26

01643-31232

WASHER

27

20Y-54-29232

BAR

28

20Y-54-29232

BAR

29

20Y-54-K9281

BRACKET

30

20Y-54-12920

CLAMP

31

01010-81016

BOLT

|31

01010-81025

BOLT

32

01643-31032

WASHER

33

20Y-54-11611

STOPPER

34

01580-11008

NUT

35

20Y-54-K8932

FRAME

36

20Y-54-25361

FRAME

37

01010-81230

BOLT

38

01643-31232

WASHER

39

20Y-54-25210

SHEET

40

01010-81230

BOLT

41

01643-31232

WASHER

42

01010-81230

BOLT

43

01643-31232

WASHER

44

20Y-54-K7560

SEAL

45

20Y-54-29251

SEAL

46

20Y-54-K7430

SEAL
