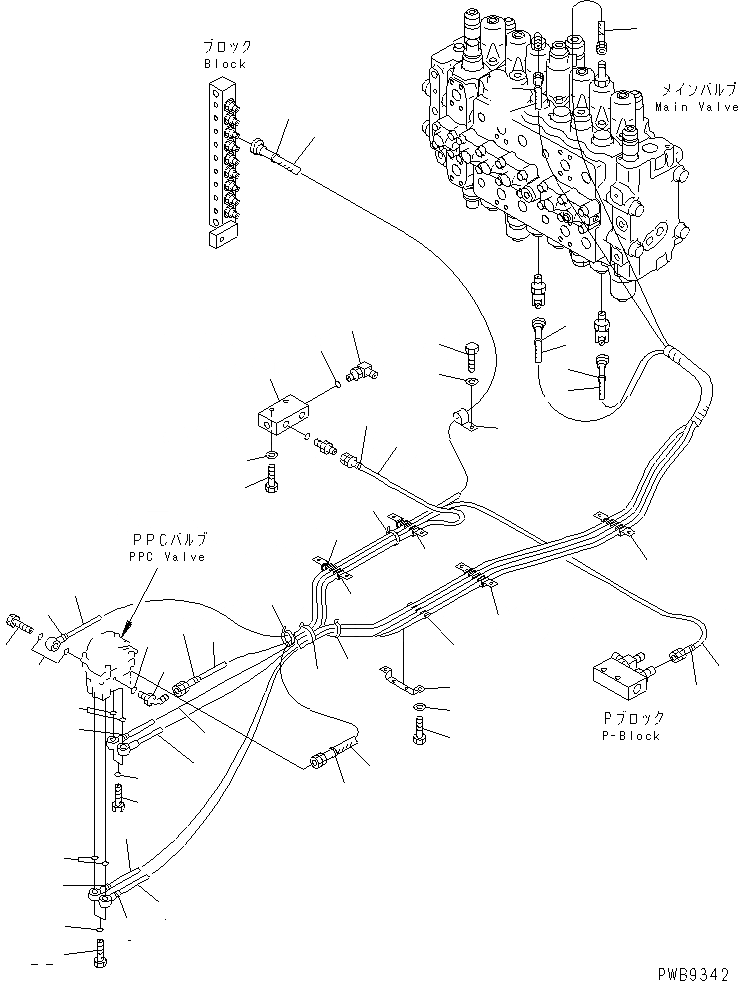

Запчасти Komatsu PC210LC-6K P.P.C. ЛИНИЯ ХОДА(№K-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

08034-00536

BAND

2

20Y-62-K4930

HOSE

3

20Y-62-22850

BAND¤ GREEN

4

20Y-62-27140

HOSE¤ 3300MM

5

20Y-62-22820

BAND¤ BLUE

6

20Y-62-27140

HOSE¤ 3300MM

7

207-62-K2610

HOSE

8

20Y-62-22790

BAND¤ RED

9

20Y-62-22170

CLAMP

10

20Y-62-K2211

HOSE

11

20Y-62-22790

BAND¤ RED

12

20Y-62-K2220

HOSE¤ 980MM

13

20Y-62-22820

BAND¤ BLUE

14

20Y-62-K4890

CLAMP

15

20Y-62-22830

BAND¤ WHITE

16

08034-00536

BAND

17

702-16-53240

PLUG

18

07000-12018

O-RING

19

07235-10210

ELBOW

20

07002-01423

O-RING

21

08034-00519

BAND

22

20Y-62-18890

BOLT

23

07000-12015

O-RING

24

20Y-62-22170

CLAMP

25

20Y-62-29180

CLAMP

|25

20Y-62-29180

CLAMP

26

01010-81016

BOLT

|26

01010-81016

BOLT

27

01643-31032

WASHER

|27

01643-31032

WASHER

28

20Y-62-K3780

BLOCK

29

07235-10311

ELBOW

|29

207-62-33920

ELBOW

30

07002-01423

O-RING

31

01010-81045

BOLT

32

01643-31032

WASHER

33

04434-51312

CLIP

34

01010-81025

BOLT

35

01643-31032

WASHER
