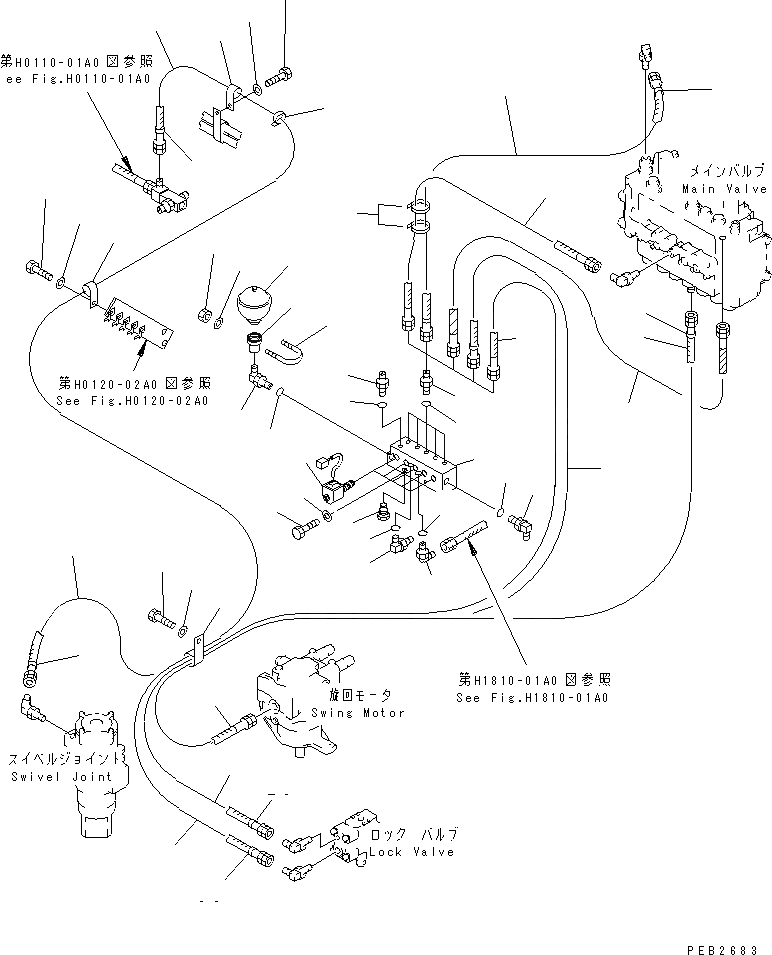

Запчасти Komatsu PC210LC-6K СОЛЕНОИДНЫЙ КЛАПАН(№K-K999) ГИДРАВЛИКА

1

20Y-60-K1170

VALVE ASS'Y

2

20Y-60-22121

SOLENOID VALVE

3

20Y-60-22140

CHECK VALVE

4

07230-20210

UNION

5

07002-01423

O-RING

6

07235-10315

ELBOW

7

07002-02034

O-RING

8

07235-10315

ELBOW

9

07002-02034

O-RING

10

20Y-62-22330

ELBOW

11

07002-02034

O-RING

12

01010-51095

BOLT

13

01643-31032

WASHER

14

20Y-60-K1110

ACCUMULATOR

14A

203-62-K1812

ADAPTER

15

20Y-62-22310

ELBOW

16

07002-02034

O-RING

17

07283-23450

CLIP

18

01599-01011

NUT

19

01643-31032

WASHER

20

08034-00536

BAND

21

20Y-62-K2870

HOSE

22

20Y-62-K2880

HOSE¤ 700MM

23

20Y-62-22860

BAND¤ BROWN

24

20Y-62-K2820

HOSE

25

20Y-62-22810

BAND

26

20Y-62-K2830

HOSE¤ 1100MM

27

20Y-62-K2840

HOSE

28

20Y-62-22790

BAND¤ RED

29

20Y-62-K2810

HOSE

30

20Y-62-22820

BAND¤ BLUE

31

20Y-62-K2851

HOSE

32

04434-52712

CLIP

33

01010-51230

BOLT

34

01643-31232

WASHER

35

04434-51512

CLIP

36

01010-51225

BOLT

37

01643-31232

WASHER

38

08034-00519

BAND
