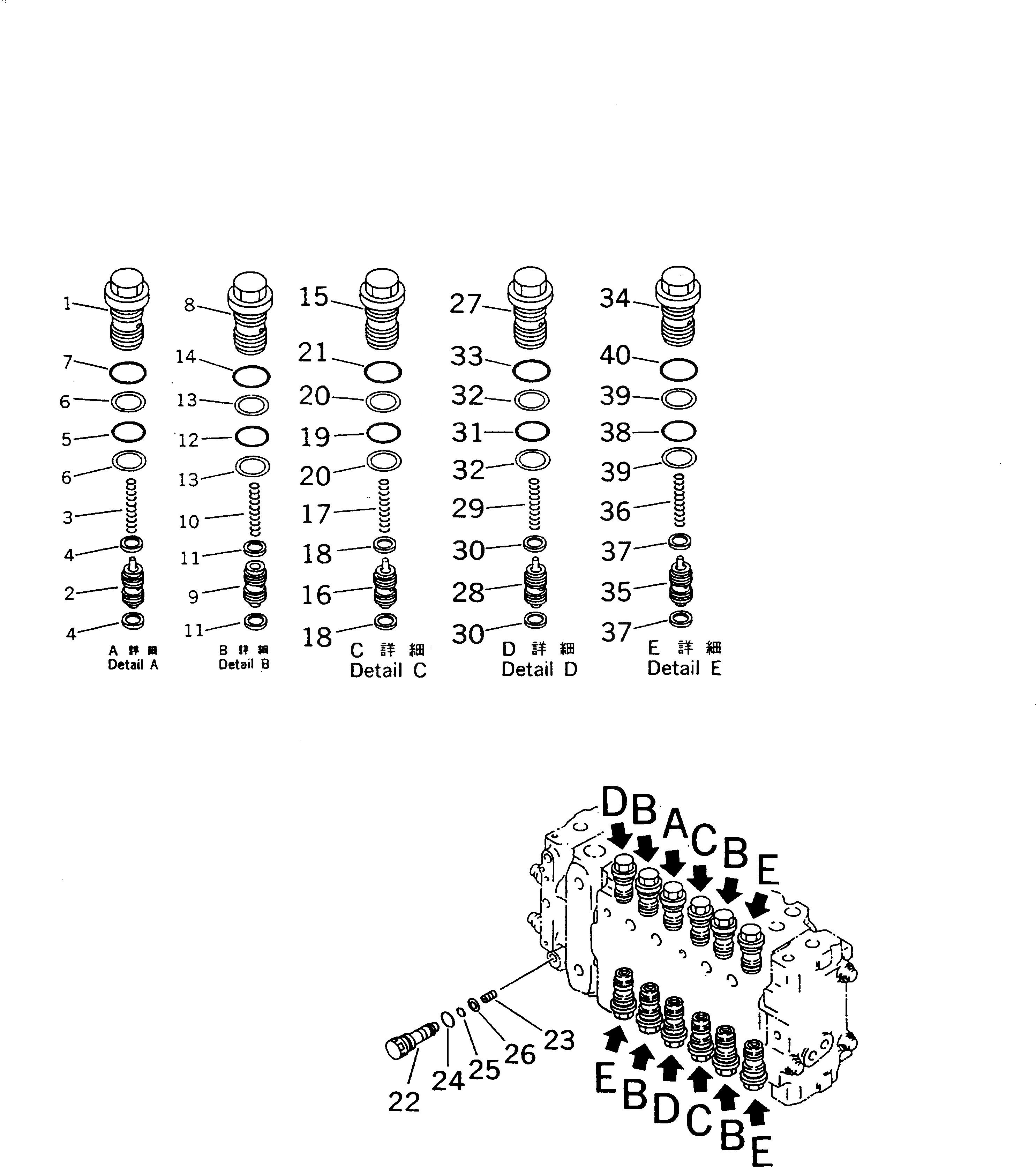

Запчасти Komatsu PC210LC-6K ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№K-K) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|1
723-47-10500
VALVE ASS'Y
|1
723-46-40100
VALVE ASS'Y
1
SLEEVE
2
PISTON SUB ASS'Y
3
SPRING
4
SEAL
5
700-93-11320
O-RING
6
723-46-41950
RING
7
07002-13634
O-RING
|8
723-46-40300
VALVE ASS'Y
8
SLEEVE
9
PISTON
10
SPRING
11
SEAL
12
700-93-11320
O-RING
13
723-46-41950
RING
14
07002-13634
O-RING
|15
723-46-41100
VALVE ASS'Y
15
SLEEVE
16
PISTON SUB ASS'Y
17
SPRING
18
SEAL
19
700-93-11320
O-RING
20
723-46-41950
RING
21
07002-13634
O-RING
|22
723-46-15100
PLUG ASS'Y
22
PLUG
23
SCREW
24
07002-11423
O-RING
25
07000-11007
O-RING
26
07001-01007
RING
|27
723-46-46100
VALVE ASS'Y
27
SLEEVE
28
PISTON SUB ASS'Y
29
SPRING
30
SEAL
31
700-93-11320
O-RING
32
700-93-11330
RING
33
07002-13634
O-RING
|34
723-46-45100
VALVE ASS'Y
34
SLEEVE
35
PISTON SUB ASS'Y
36
SPRING
37
SEAL
38
700-93-11320
O-RING
39
723-46-41950
RING
40
07002-13634
O-RING
Выбрано товаров: 47
