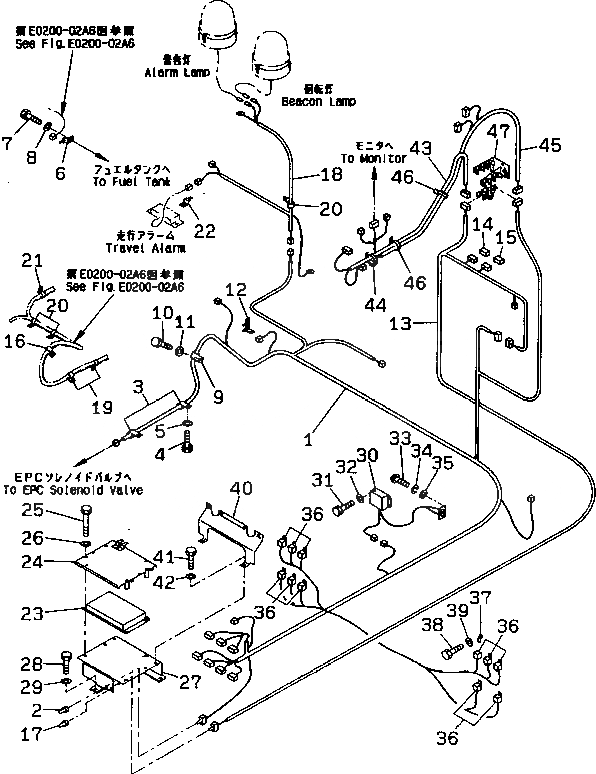

Запчасти Komatsu PC210LC-6G ЭЛЕКТРОПРОВОДКА (РАДИО УПРАВЛ-Е СПЕЦ-Я.)(№-9) ЭЛЕКТРИКА

1

20Y-06-26131

WIRING HARNESS

|1

08020-00000

DIODE

|1

20Y-06-24130

SWITCH

2

203-06-41610

CAP

3

04434-52712

CLIP

4

01010-51220

BOLT

5

01643-31232

WASHER

6

08053-00912

CLIP

7

01010-51220

BOLT

8

01643-31232

WASHER

9

08036-03014

CLIP

10

01010-50816

BOLT

11

01643-30823

WASHER

12

20Y-06-26260

PLATE

13

20Y-06-26151

WIRING HARNESS

|13

20Y-06-26150

WIRING HARNESS

|13

20Y-06-24130

SWITCH

14

7821-91-5340

CONNECTOR

15

7830-11-5330

CONNECTOR

16

08036-02514

CLIP

17

203-06-41610

CAP

18

20Y-06-26241

WIRING HARNESS

19

08036-03014

CLIP

20

08036-01014

CLIP

21

203-06-56390

CLIP

22

08053-01512

CLIP

23

7834-60-7000

CONTROLLER,EPC

24

20Y-06-26231

BRACKET

25

01010-51070

BOLT

26

01643-31032

WASHER

27

20Y-06-26221

BRACKET

28

01010-51225

BOLT

29

01643-31232

WASHER

30

7828-40-3000

UNIT ASS'Y

31

01010-50616

BOLT

32

01643-30623

WASHER

33

01220-40312

SCREW

34

01601-20307

WASHER

35

01641-40305

WASHER

36

569-06-61960

RELAY

37

287-06-16420

BRACKET

38

01010-50616

BOLT

39

01643-30623

WASHER

40

20Y-06-26211

COVER

41

01010-51020

BOLT

42

01643-31032

WASHER

43

20Y-06-21232

WIRING HARNESS

|43

20Y-06-21231

WIRING HARNESS

44

08034-00519

BAND

45

20Y-06-26160

WIRING HARNESS

46

08034-00414

BAND

47

20Y-06-22410

BRACKET
