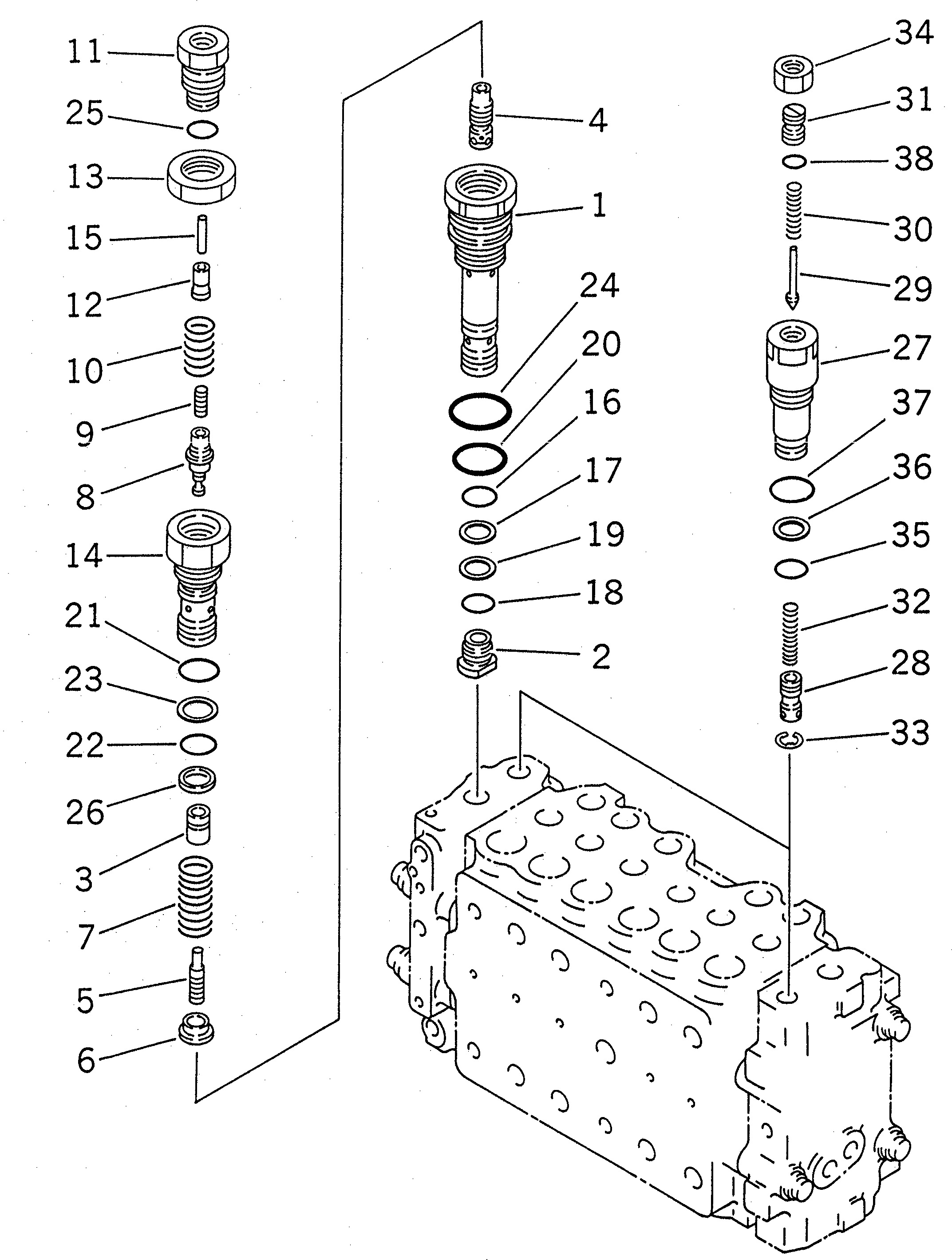

Запчасти Komatsu PC210LC-6G ОСНОВН. КЛАПАН (7/)(№-99) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-46-10500

VALVE ASS'Y

|1

723-46-10107

VALVE ASS'Y

|1

723-46-10105

VALVE ASS'Y

|1

723-46-10103

VALVE ASS'Y

|1

723-40-50100

VALVE ASS'Y,RELIEF

1

SLEEVE

2

PLUG

3

PLUG

4

VALVE

5

PISTON

6

RETAINER

7

SPRING

8

POPPET

9

PISTON

10

SPRING

11

SLEEVE

12

RETAINER

13

NUT

14

SLEEVE

15

PISTON

16

700-80-61260

O-RING

17

700-80-61430

RING

18

07000-12021

O-RING

19

07001-02021

RING,BACK-UP

20

07002-13034

O-RING

21

O-RING

22

O-RING

23

RING,BACK-UP

24

07000-03032

O-RING

25

O-RING

26

SEAL

|27

723-40-50200

VALVE ASS'Y,RELIEF

27

SLEEVE

28

VALVE

29

POPPET

30

SPRING

31

SCREW

32

SPRING

33

RING

34

NUT

35

700-22-11410

O-RING

36

700-80-64220

RING

37

07002-02434

O-RING

38

O-RING
