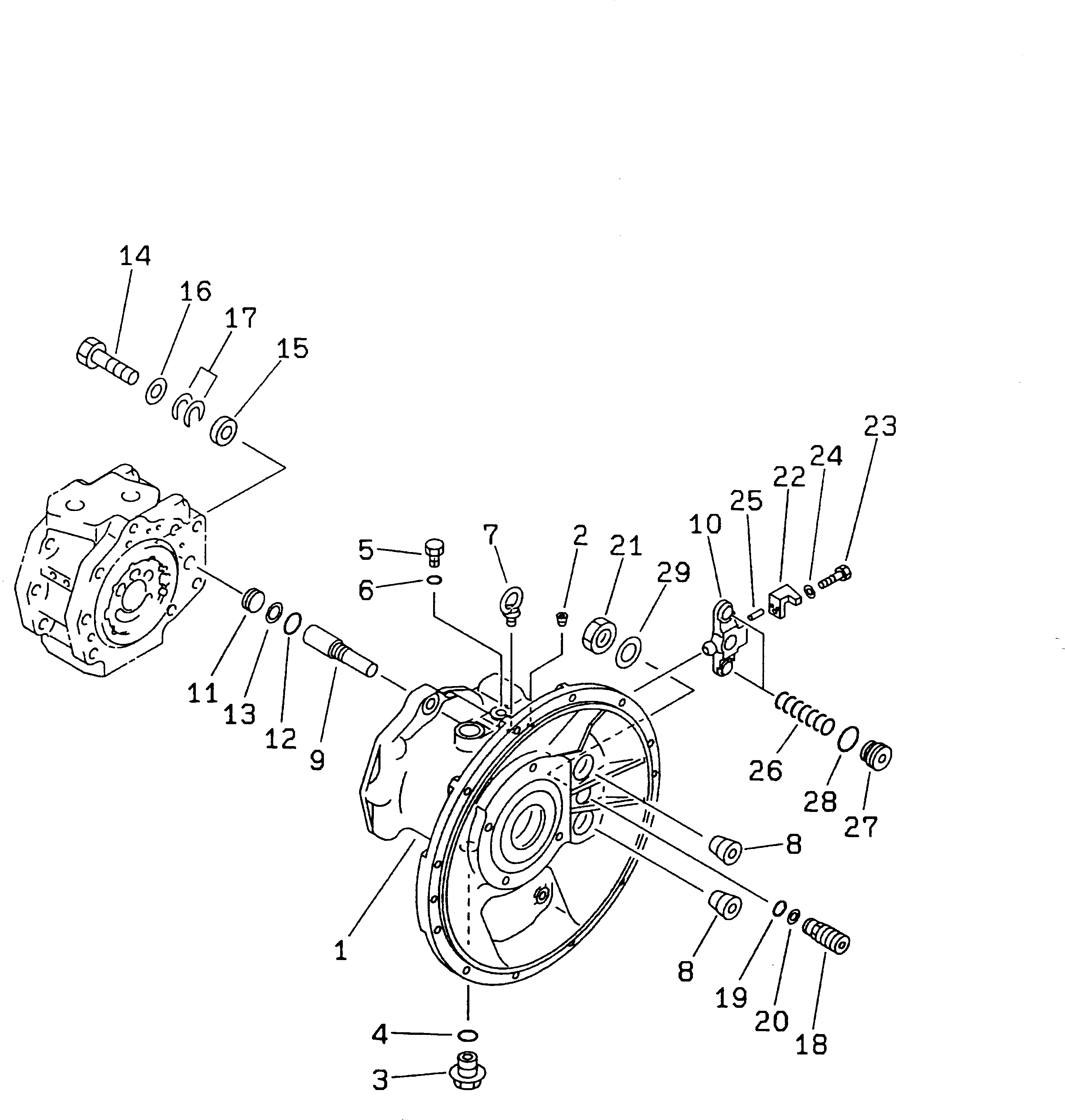

Запчасти Komatsu PC210LC-6 ОСНОВН. НАСОС (/9)(№-9) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-2L-00151

PUMP ASS'Y

|1

708-2L-00056

PUMP ASS'Y

|1

708-2L-00054

PUMP ASS'Y

|1

708-2L-00053

PUMP ASS'Y

|1

708-2L-00052

PUMP ASS'Y

|1

708-2L-01053

PUMP SUB ASS'Y

|1

708-2L-01052

PUMP SUB ASS'Y

|1

708-2L-04011

CASE ASS'Y,FRONT

1

CASE,FRONT

2

PLUG

3

07044-12412

PLUG

4

07002-62434

O-RING

|4

07002-02434

O-RING

5

720-68-19870

PLUG

6

07002-61223

O-RING

|6

07002-01223

O-RING

7

04530-01018

BOLT,EYE

8

07043-01222

PLUG

9

708-2L-24110

PISTON

10

708-2L-24122

ROD

11

708-2L-24161

STOPPER

12

708-2L-24920

O-RING

13

07001-03025

RING,BACK-UP

14

708-2L-24220

BOLT

15

708-2L-24151

SEAT

16

708-2L-24230

WASHER

17

708-2L-05010

SHIM KIT

|17

SHIM¤ 0.1MM

|17

SHIM¤ 0.2MM

|17

SHIM¤ 0.5MM

18

708-2L-24312

SCREW

19

07000-B2018

O-RING

20

07001-02018

RING,BACK-UP

21

01583-12716

NUT

22

708-2L-25883

CAM

23

01010-80620

BOLT

24

01643-30623

WASHER

25

04020-00514

PIN

26

708-2L-24141

SPRING

27

708-2L-24131

PLUG

28

07000-13030

O-RING

29

708-2L-24340

SEAL,WASHER
