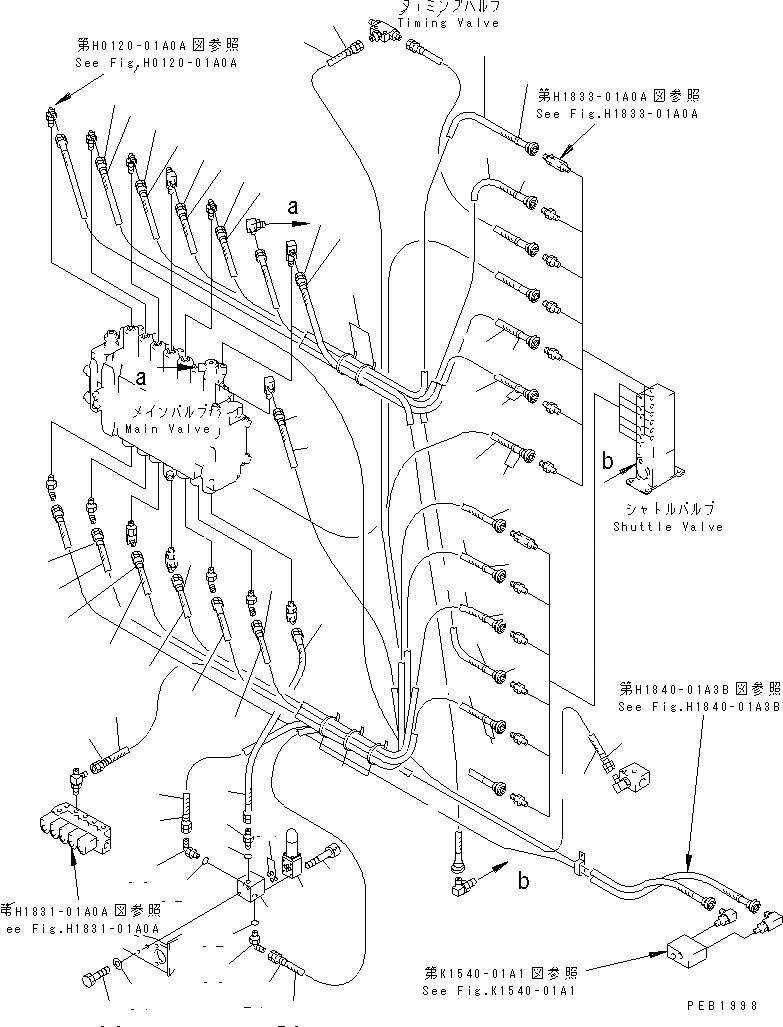

Запчасти Komatsu PC210LC-6 ОСНОВН. ЛИНИЯ PPC (КЛАПАН ЛИНИИ PPCS) ( АКТУАТОР) (СПЕЦ-Я ДЛЯ РАЗРУШ. ЗДАНИЙ)(№-9) ГИДРАВЛИКА

1

08034-00536

BAND

2

20Y-62-22661

HOSE¤ 470MM

3

20Y-62-22850

BAND¤ GREEN

4

20Y-62-22711

HOSE¤ 420MM

5

20Y-62-22830

BAND¤ WHITE

6

20Y-62-22681

HOSE¤ 520MM

7

20Y-62-22840

BAND

8

20Y-62-22691

HOSE¤ 315MM

9

20Y-62-22790

BAND¤ RED

10

20Y-62-22721

HOSE¤ 535MM

11

20Y-62-22820

BAND¤ BLUE

12

08034-00536

BAND

13

20Y-62-22721

HOSE¤ 535MM

14

20Y-62-22790

BAND¤ RED

15

20Y-62-22771

HOSE¤ 700MM

16

20Y-62-22860

BAND¤ BROWN

17

203-62-52530

HOSE¤ 800MM

18

20Y-62-22820

BAND¤ BLUE

19

20Y-62-23841

HOSE¤ 850MM

20

20Y-62-22830

BAND¤ WHITE

21

20Y-62-22771

HOSE¤ 700MM

22

20Y-62-22781

HOSE¤ 650MM

23

20Y-62-22850

BAND¤ GREEN

24

203-62-52280

HOSE¤ 900MM

25

20Y-62-22810

BAND

26

203-62-52290

HOSE¤ 1100MM

27

07002-01423

O-RING

28

203-62-52390

HOSE

29

20Y-62-23630

BLOCK

30

07235-10210

ELBOW

31

07230-20210

UNION

32

07002-01423

O-RING

33

20Y-60-21700

VALVE ASS'Y

34

205-62-74580

O-RING

35

01252-40550

BOLT

36

01010-51035

BOLT

37

01643-31232

WASHER
