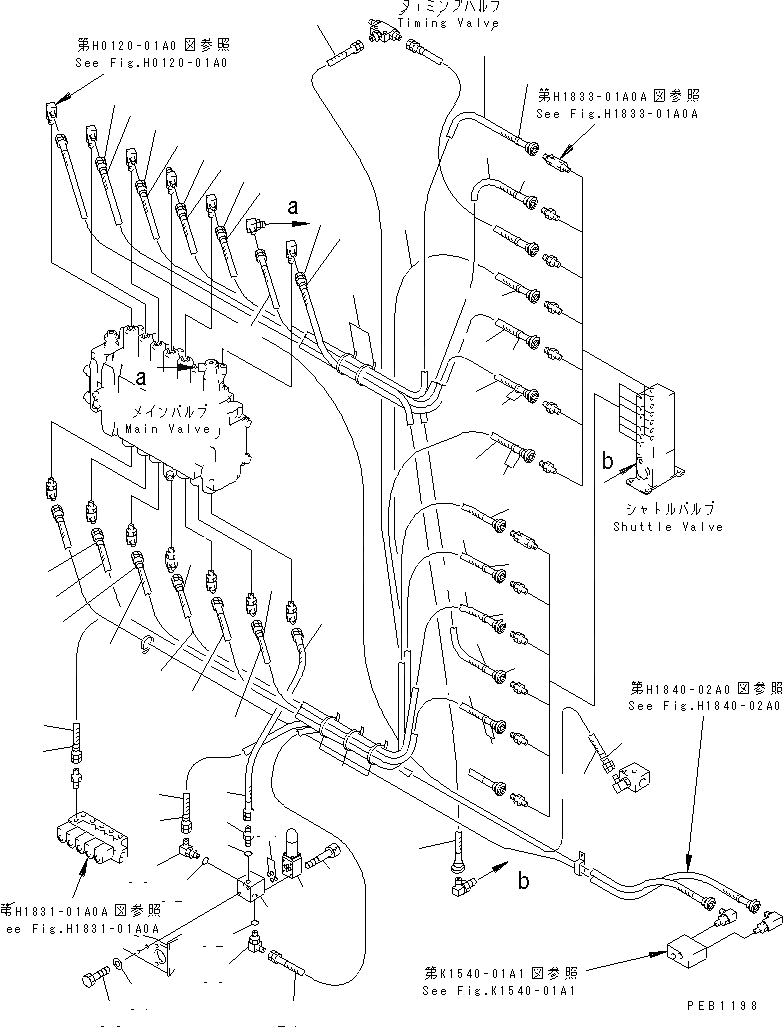

Запчасти Komatsu PC210LC-6 ОСНОВН. ЛИНИЯ PPC (КЛАПАН ЛИНИИ PPCS) ( АКТУАТОР) (СПЕЦ-Я ДЛЯ РАЗРУШ. ЗДАНИЙ)(№9-99) ГИДРАВЛИКА

1

08034-00536

BAND

2

20Y-62-22660

HOSE¤ 470MM

3

20Y-62-22850

BAND¤ GREEN

4

20Y-62-22710

HOSE¤ 420MM

5

20Y-62-22830

BAND¤ WHITE

6

20Y-62-22680

HOSE¤ 520MM

7

20Y-62-22840

BAND

8

20Y-62-22690

HOSE¤ 315MM

9

20Y-62-22790

BAND¤ RED

10

20Y-62-22680

HOSE¤ 520MM

11

20Y-62-22720

HOSE¤ 535MM

12

20Y-62-22820

BAND¤ BLUE

13

08034-00536

BAND

14

20Y-62-22720

HOSE¤ 535MM

15

20Y-62-22790

BAND¤ RED

16

20Y-62-22770

HOSE¤ 700MM

17

20Y-62-22860

BAND¤ BROWN

18

20Y-62-23640

HOSE¤ 800MM

19

20Y-62-22820

BAND¤ BLUE

20

20Y-62-22760

HOSE¤ 840MM

21

20Y-62-22830

BAND¤ WHITE

22

20Y-62-22770

HOSE¤ 700MM

23

20Y-62-22780

HOSE¤ 650MM

24

20Y-62-22850

BAND¤ GREEN

25

20Y-62-22971

HOSE¤ 900MM

26

20Y-62-22810

BAND

27

20Y-62-22940

HOSE¤ 1100MM

28

20Y-62-23650

HOSE¤ 400MM

29

20Y-62-23630

BLOCK

30

207-62-33920

ELBOW

31

205-62-55270

NIPPLE

32

07002-01423

O-RING

33

20Y-60-21700

VALVE ASS'Y

34

205-62-74580

O-RING

35

01252-40550

BOLT

36

01010-51035

BOLT

37

01643-31232

WASHER
