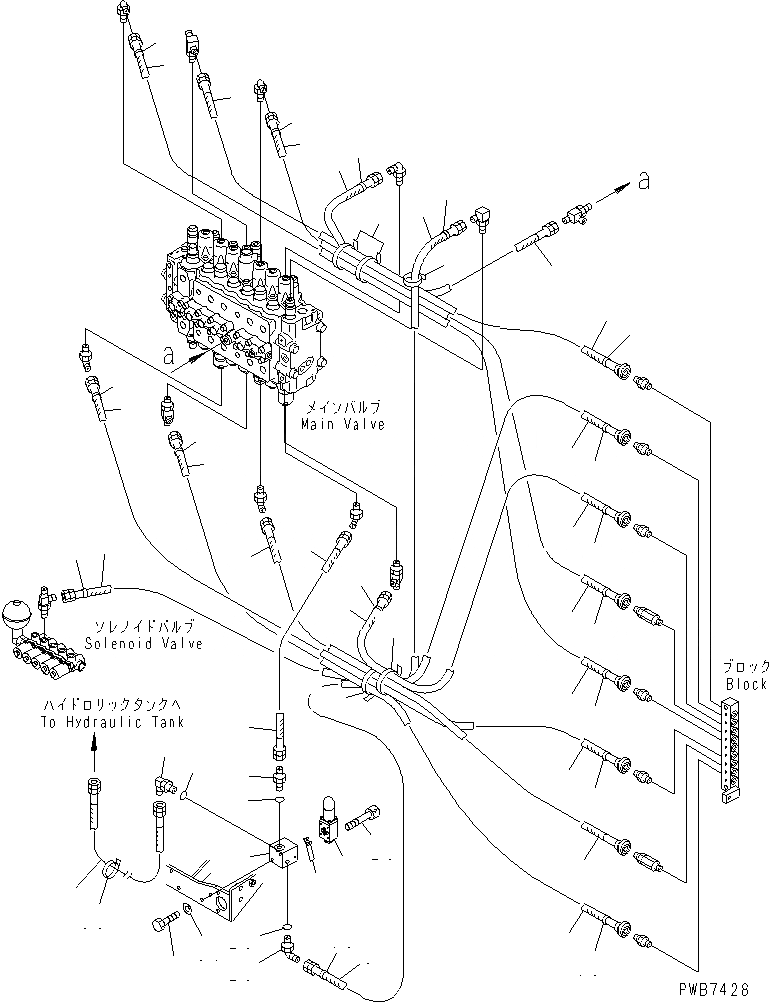

Запчасти Komatsu PC210LC-6 ОСНОВН. ЛИНИЯ PPC (КЛАПАН ЛИНИИ PPCS) ( АКТУАТОР) (СПЕЦ-Я ДЛЯ РАЗРУШ. ЗДАНИЙ)(№99-) ГИДРАВЛИКА

1

203-62-52310

HOSE, 700MM

2

203-62-62631

HOSE, 450MM

3

20Y-62-22671

HOSE, 355MM

4

20Y-62-22781

HOSE, 650MM

5

20Y-62-22790

BAND, RED

6

20Y-62-22830

BAND, WHITE

7

20Y-62-22840

BAND, BLACK

8

08034-00536

BAND

9

20Y-62-23851

HOSE, 950MM

10

20Y-62-22661

HOSE, 470MM

11

20Y-62-22721

HOSE, 535MM

12

20Y-62-23831

HOSE, 800MM

13

203-62-52280

HOSE, 900MM

14

20Y-62-22810

BAND, YELLOW

15

20Y-62-22820

BAND, BLUE

16

20Y-62-22830

BAND, WHITE

17

20Y-62-22850

BAND, GREEN

18

20Y-62-22860

BAND, BROWN

19

08034-00536

BAND

21

203-62-52390

HOSE

22

20Y-62-23630

BLOCK

23

07235-10210

ELBOW

24

07230-20210

UNION

25

07235-10311

ELBOW

25

207-62-33920

ELBOW

26

07002-01423

O-RING

27

20Y-60-21700

VALVE ASS'Y

28

205-62-74580

O-RING

29

01252-40550

BOLT

30

01010-81035

BOLT

31

01643-31232

WASHER

32

07102-20314

HOSE

32

07102-20316

HOSE

33

08034-00536

BAND
