Запчасти Komatsu PC210LC-5K МАРКИРОВКА (ПОРТУГАЛ.)(№K-K9) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

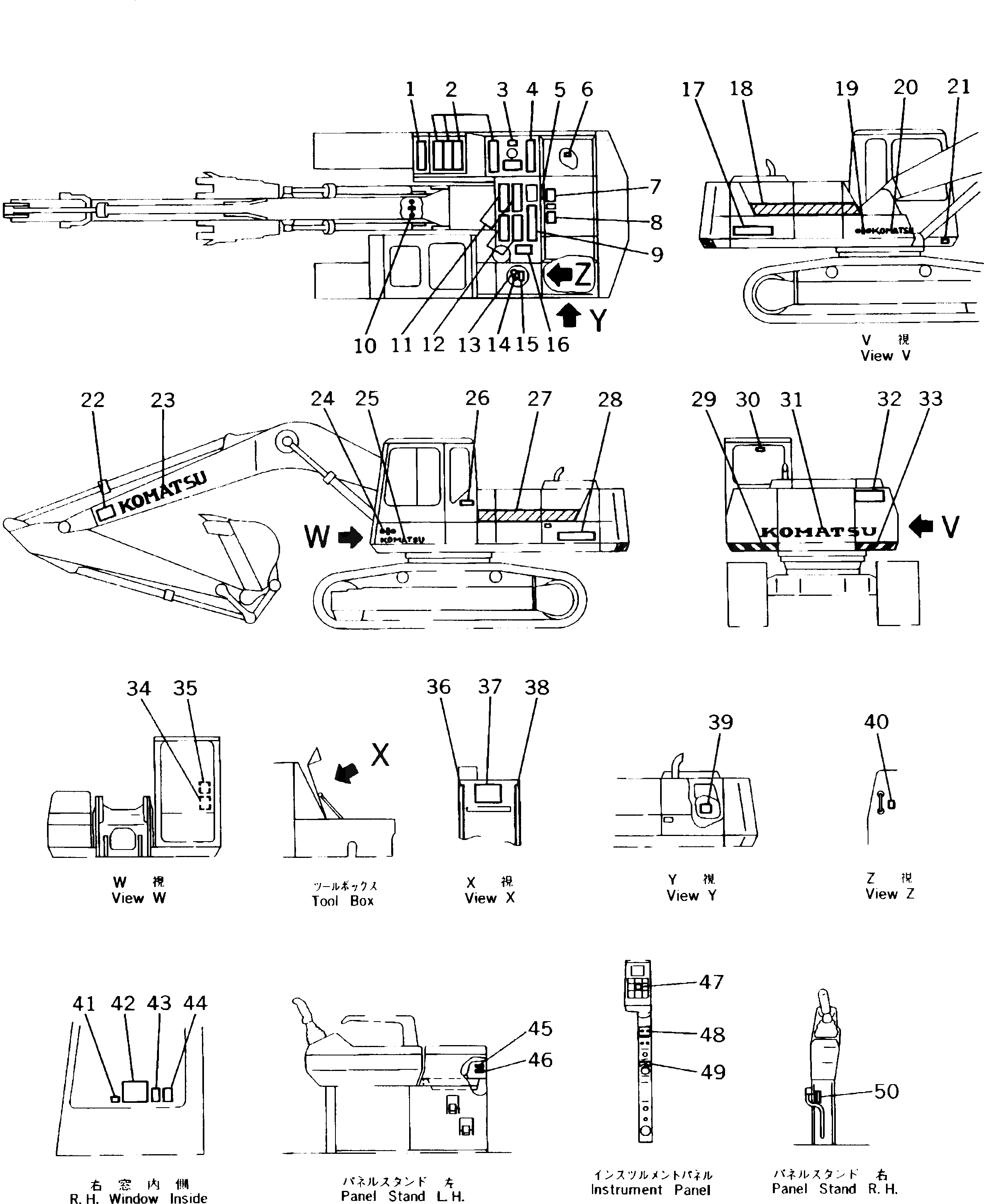

Схема запчастей Komatsu PC210LC-5K - МАРКИРОВКА (ПОРТУГАЛ.)(№K-K9) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

154-54-23260

SEAT,NONSKID

2

205-54-76511

SEAT,NONSKID

3

20Y-00-K1150

PLATE¤ CAUTION,FUEL

4

205-54-76511

SEAT,NONSKID

5

20Y-00-K1190

PLATE¤ INSTRUCTION,RADIATOR

6

20Y-00-K1390

PLATE¤ SAFETY,RADIATOR CAP

7

20Y-00-K1180

PLATE¤ SAFETY,ENGINE COVER

8

205-00-66130

PLATE¤ SAFETY

9

21T-54-11620

SEAT,NONSKID

10

207-00-31630

PLATE¤ MARK,SYMBOL

11

154-54-23260

SEAT,NONSKID

12

205-54-76511

SEAT,NONSKID

13

09669-00003

PLATE¤ CAUTION,HYDRAULIC TANK

14

20Y-00-K1380

PLATE¤ CAUTION,HYDRAULIC TANK CAP

15

20Y-00-K1170

PLATE¤ SAFETY,HYDRAULIC TANK

16

203-00-51170

SEAT,NONSKID

17

20Y-00-18211

PLATE¤ MARK,PC210

|17

20Y-00-18210

PLATE¤ MARK,PC210

|17

20Y-00-18221

PLATE¤ MARK,PC210LC

|17

20Y-00-18220

PLATE¤ MARK,PC210LC

18

20Y-00-K1660

PLATE¤ MARK,STRIPE

19

09694-50160

PLATE¤ MARK,SYMBOL

20

09690-C0315

PLATE¤ MARK,KOMATSU

|20

09690-50500

PLATE¤ MARK,KOMATSU

21

205-00-K1120

PLATE¤ NAME,(LIMITED SUPPLY)

|21

205-00-72430

RIVET

22

205-00-K1160

PLATE¤ SAFETY

23

09690-B0630

PLATE¤ MARK,KOMATSU

|23

205-00-63171

PLATE¤ MARK,KOMATSU

24

09694-50160

PLATE¤ MARK,SYMBOL

25

09690-C0315

PLATE¤ MARK,KOMATSU

|25

09690-50500

PLATE¤ MARK,KOMATSU

26

20Y-00-K1750

PLATE¤ MARK

27

20Y-00-K1680

PLATE¤ MARK,STRIPE

28

20Y-00-18211

PLATE¤ MARK,PC210

|28

20Y-00-18210

PLATE¤ MARK,PC210

|28

20Y-00-18221

PLATE¤ MARK,PC210LC

|28

20Y-00-18220

PLATE¤ MARK,PC210LC

29

20Y-00-12410

STRIPE,L.H.

30

205-00-K1250

PLATE¤ CAUTION,AUTO LOCK

31

09690-C0710

PLATE¤ MARK,KOMATSU

|31

205-00-K1310

PLATE¤ MARK,KOMATSU

32

20Y-00-K1650

PLATE¤ CAUTION,KEEP OUT OF TURNING AREA

33

20Y-00-12420

STRIPE,R.H.

34

09696-00108

PLATE,SOUND POWER LEVEL

35

09696-10078

PLATE,SOUND PRESSURE LEVEL

36

20Y-00-11630

PLATE

37

20Y-00-K1711

PLATE,LUBRICATION CHART

38

20Y-00-11630

PLATE

39

20Y-00-K1120

PLATE¤ INSTRUCTION,AIR CLEANER

40

205-00-73360

PLATE¤ OPERATING,OIL LEVEL

41

20Y-00-K1110

PLATE¤ OPERATING,WORK EQUIPMENT

42

20Y-00-K1211

PLATE¤ CAUTION

43

20Y-00-K1790

PLATE,LOCK LEVER

44

20Y-00-K1730

PLATE¤ CAUTION,ACCUMULATOR

45

20Y-00-K1420

PLATE¤ OPERATING,T.V.C. PROLIX

46

20Y-00-K1430

PLATE¤ OPERATING,SWING PROLIX

47

203-00-56550

PLATE,AUTO DECEL-LESS

48

20Y-00-K1132

PLATE¤ OPERATING,FUEL CONTROL

49

20Y-00-K1140

PLATE¤ OPERATING,FUEL CONTROL

50

09685-00002

PLATE¤ OPERATING,LOCK LEVER

Выбрано товаров: 61
