Запчасти Komatsu PC210LC-5K КАБИНА (ДВЕРЬ В СБОРЕ) (/) ЧАСТИ КОРПУСА

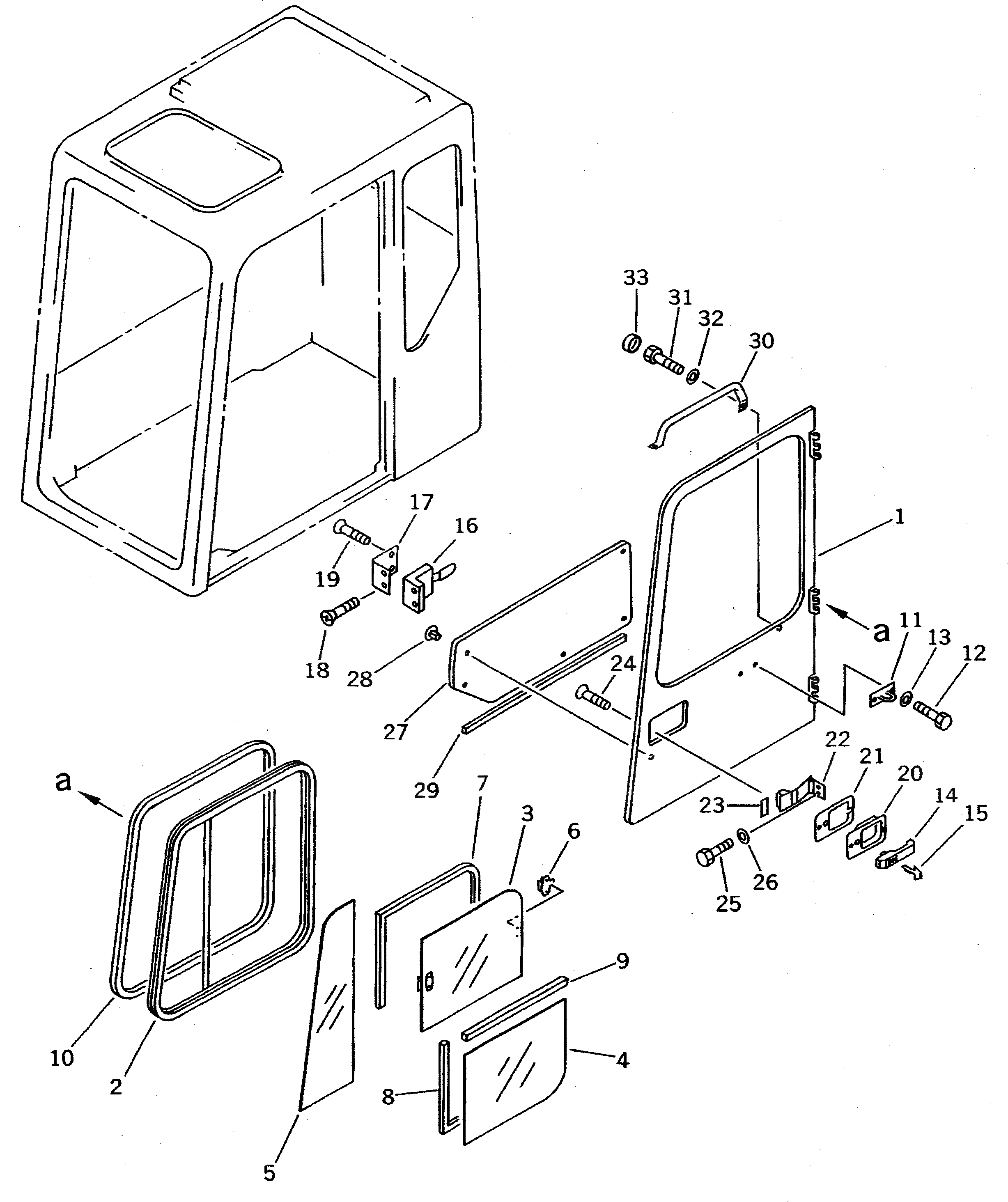

Схема запчастей Komatsu PC210LC-5K - КАБИНА (ДВЕРЬ В СБОРЕ) (/) ЧАСТИ КОРПУСА

Артикул

Название

Примечание

Количество

|1

20Y-54-K1401

OPERATOR'S CAB ASS'Y

|1

20Y-54-K1400

OPERATOR'S CAB ASS'Y

|1

20Y-54-K1100

OPERATOR'S CAB ASS'Y

|1

20Y-54-K1830

DOOR ASS'Y

1

20Y-54-K1450

DOOR

|2

20Y-54-K1460

WINDOW ASS'Y

2

20Y-54-K2760

SASH

3

20Y-54-K2780

GLASS,UPPER

4

20Y-54-K2770

GLASS,LOWER

5

20Y-54-K2790

GLASS,SIDE

6

20Y-54-K2810

CATCH

7

20Y-54-K4250

SEAL,UPPER

8

20Y-54-K4260

SEAL,LOWER

9

20Y-54-K4270

SEAL

10

20Y-54-K1470

SEAL,GLAZING

11

20Y-54-K1481

BRACKET

12

20Y-54-K4350

BOLT

13

20Y-54-K4360

WASHER

14

20Y-54-K4280

HANDLE

15

20Y-54-K4240

KEY

16

20Y-54-K1590

CATCH,LOCK

17

20Y-54-K1610

PLATE

18

01224-40625

SCREW

19

01224-40620

SCREW

20

20Y-54-K1490

PLATE

21

20Y-54-K1520

SEAL,RUBBER

22

20Y-54-K1570

PLATE

23

20Y-54-K1580

STRIP,FOAM

24

20Y-54-K1510

SCREW

25

01016-20515

BOLT

26

01641-20508

WASHER

27

20Y-54-K1540

LINING

28

20Y-54-K1550

BUTTON

29

20Y-54-K4010

SHEET

30

20Y-54-K1560

HANDLE

31

01010-50820

BOLT

32

01641-20812

WASHER

33

20Y-54-K3420

CAP

Выбрано товаров: 38
