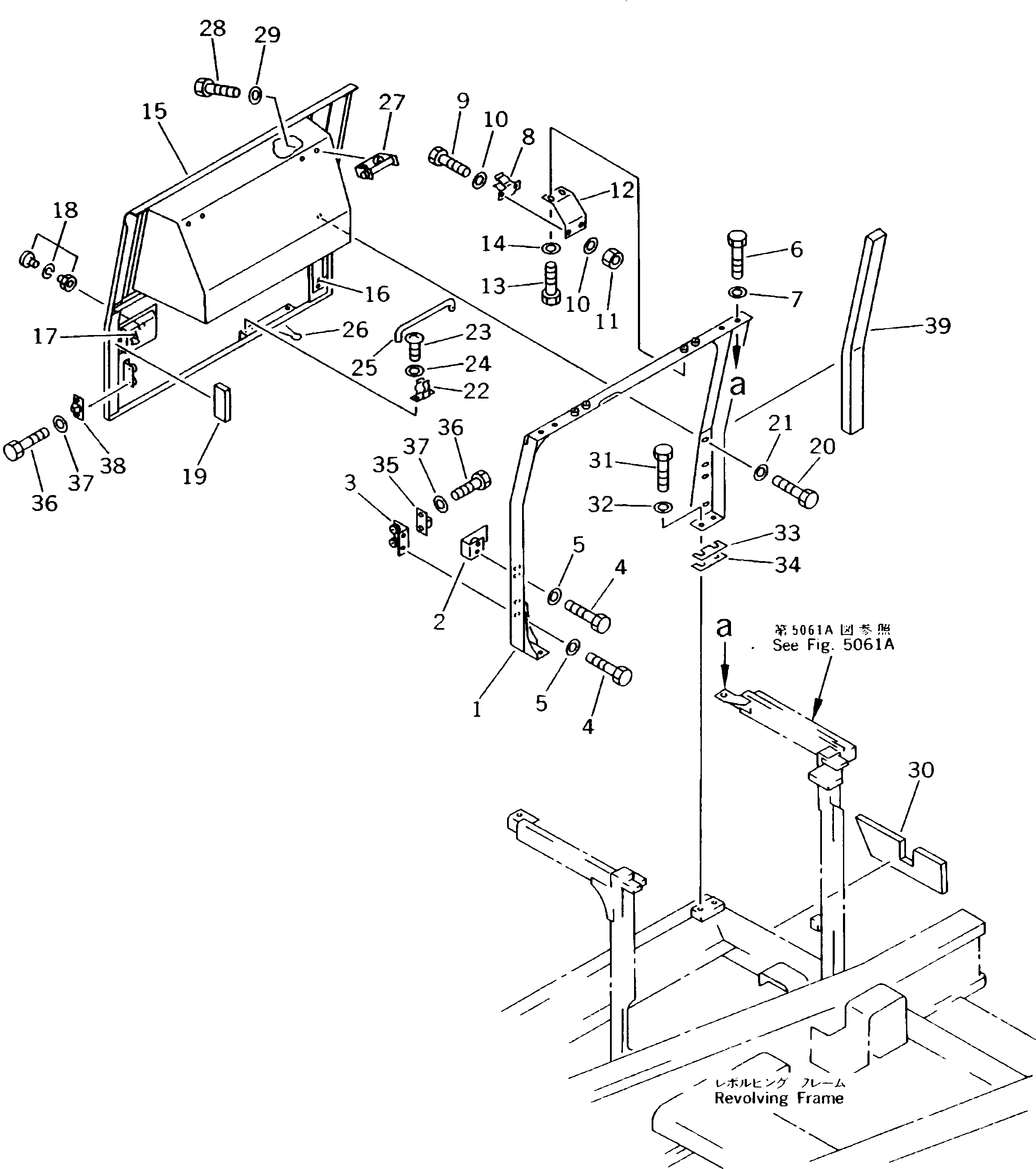

Запчасти Komatsu PC210LC-5K ПРАВ. COVER(№K7-) ЧАСТИ КОРПУСА

1

206-54-58430

FRAME

2

20Y-54-12380

PLATE

3

20Y-54-12980

BRACKET

4

01010-51025

BOLT

5

01643-31032

WASHER

6

01010-51230

BOLT

7

01643-31232

WASHER

8

20Y-54-12920

CLAMP

9

01010-51020

BOLT

10

01643-31032

WASHER

11

01580-01008

NUT

12

206-54-58470

BRACKET

13

01010-51025

BOLT

14

01643-31032

WASHER

15

20Y-54-K4580

DOOR

16

20Y-54-12750

HINGE (WELDED)

17

421-54-11362

LOCK ASS'Y (WELDED)

18

421-54-11381

LOCK

19

20Y-54-12760

SEAL

20

01010-51225

BOLT

21

20Y-54-12670

WASHER

22

20B-54-12210

SPRING

23

01220-40408

SCREW

24

01641-20405

WASHER

25

205-54-64140

BAR

26

04050-13018

PIN,COTTER

27

206-54-59830

BRACKET

28

01010-51020

BOLT

29

01643-31032

WASHER

30

206-54-K2680

SHEET

31

01010-51230

BOLT

32

01643-31232

WASHER

33

20Y-54-12690

PLATE¤ 1.0MM

34

20Y-54-12680

PLATE¤ 3.2MM

35

205-54-51970

DOVE TAIL

36

01010-50612

BOLT

37

01643-30623

WASHER

38

205-54-53550

DOVE TAIL

39

20Y-54-K4980

SHEET
