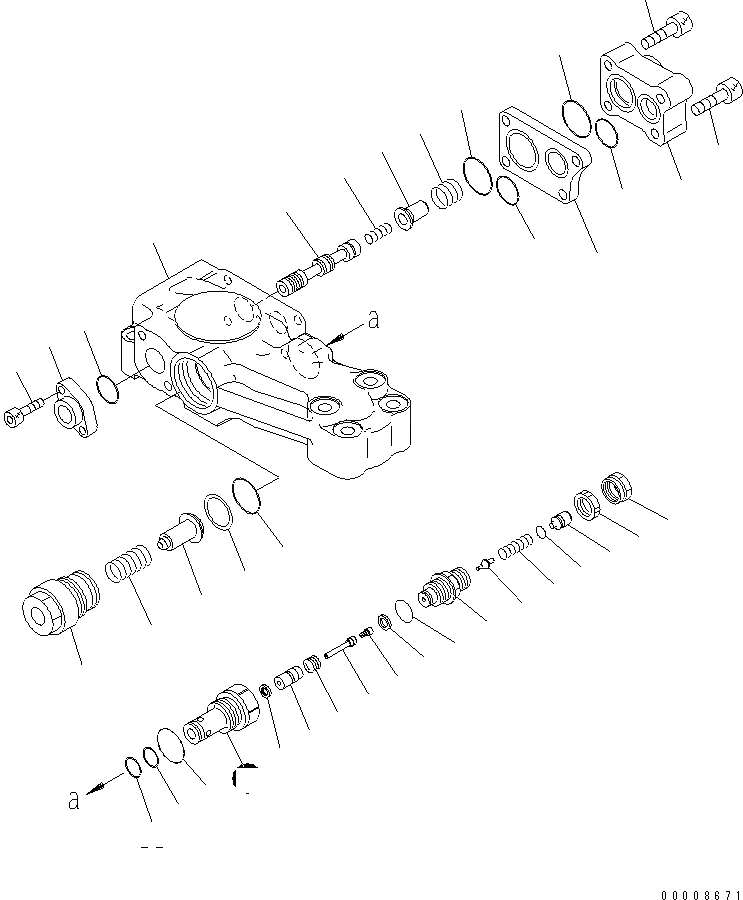

Запчасти Komatsu PC210-8K ЗАКРЫВАЮЩИЙ КЛАПАН(ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ) (№K-) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

702-21-08761

PILOT VALVE

1

BODY, VALVE

2

SPOOL

3

702-21-39410

CASE

4

702-21-39610

RETAINER, 2.0MM

|4

702-21-39620

RETAINER, 2.2MM

|4

702-21-39630

RETAINER, 1.8MM

5

702-21-39430

FLANGE

6

702-21-39440

SPRING

7

702-21-39340

SPRING

8

709-62-31280

O-RING

9

702-21-39450

O-RING

10

702-21-38480

PLUG

11

01252-60840

BOLT

12

01252-60845

BOLT

13

01252-60820

BOLT

14

702-21-39640

SPACER

15

07000-13028

O-RING

16

VALVE

17

709-94-91751

SPRING

18

700-93-11320

O-RING

19

700-93-11330

RING, BACK-UP

|20

709-70-79700

VALVE ASSEMBLY, RELIEF

20

SLEEVE

21

700-80-64220

RING

22

700-22-11410

O-RING

23

SEAL

24

POPPET

25

PISTON

26

SPRING

27

SEAL

28

07000-13024

O-RING

29

POPPET

30

O-RING

31

PLUG

32

NUT

33

NUT

34

SPRING

35

O-RING

36

SPACER

37

SEAT
