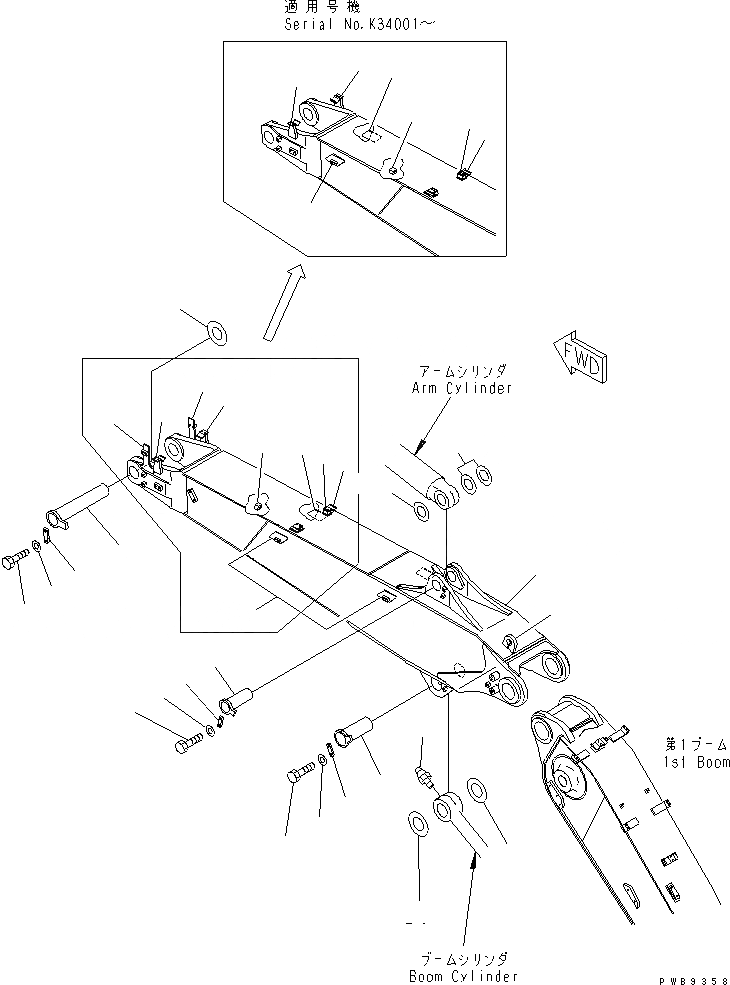

Запчасти Komatsu PC210-6K СТРЕЛА (ВТОР. СТРЕЛА) (2-СЕКЦИОНН. СТРЕЛА) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

20Y-966-K111

BOOM ASS'Y,SECOND

|1

20Y-966-K110

BOOM ASS'Y,SECOND

2

205-966-5340

SEAT (WELDED)

3

20Y-966-1810

PLATE (WELDED)

4

206-62-55281

BRACKET (WELDED)

5

20Y-62-13760

SEAT (WELDED)

6

20Y-70-11641

BRACKET (WELDED)

7

20Y-62-24271

BRACKET (WELDED)

8

20Y-62-24281

BRACKET (WELDED)

9

20Y-62-24291

BRACKET (WELDED)

10

20Y-62-24360

BRACKET (WELDED)

11

20Y-70-K4180

PIN

|11

205-70-65680

PIN

12

20Y-70-11360

SPACER¤ 0.8MM

13

205-70-71310

PLATE

14

01010-81235

BOLT

|14

01010-51235

BOLT

15

01643-31232

WASHER

16

20Y-70-11180

PIN

17

20Y-70-11340

SPACER¤ 0.8MM

18

205-70-51530

SPACER¤ 1.5MM

19

205-70-66580

PLATE

20

01010-81230

BOLT

|20

01010-51230

BOLT

21

01643-31232

WASHER

22

208-70-61240

PIN

|22

207-70-31190

PIN

23

207-70-11340

SPACER¤ 0.8MM

24

205-70-66580

PLATE

25

01010-81235

BOLT

|25

01010-51235

BOLT

26

01643-31232

WASHER

27

07020-00000

FITTING,GREASE
