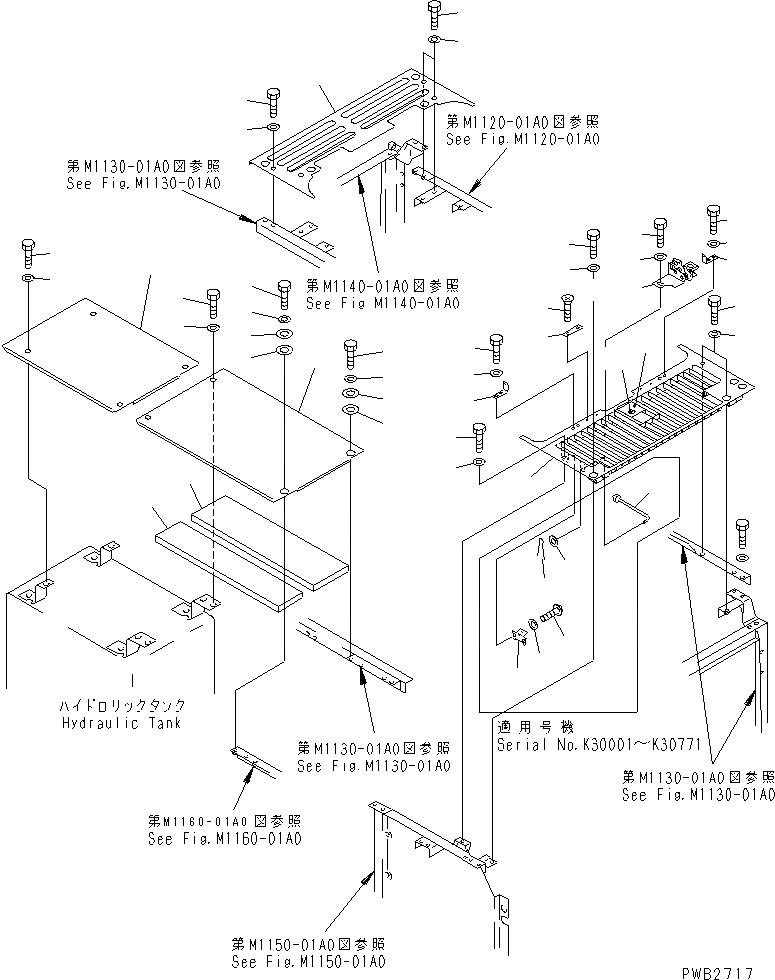

Запчасти Komatsu PC210-6K КРЫШКА(КАБИНА) (ВЕРХН.)(№K-K999) ЧАСТИ КОРПУСА

|1

20Y-54-K8880

COVER ASS'Y

1

20Y-54-K8670

COVER

2

20Y-54-32470

SHEET

3

20Y-54-32460

SHEET

4

01010-51230

BOLT

5

175-54-34170

WASHER

6

01010-51230

BOLT

7

01643-31232

WASHER

8

20Y-54-19930

COLLAR

9

20Y-54-19920

PLATE

10

20Y-54-K8681

COVER

|10

20Y-54-K8680

COVER

11

21P-54-K3824

COVER

|11

20Y-54-K7702

COVER

|11

20Y-54-K7701

COVER

11A

20Y-54-27502

LOCK ASS'Y

12

20Y-54-27531

LOCK

13

20Y-54-27540

LOCK ASS'Y

14

01010-51025

BOLT

15

01643-31032

WASHER

16

21P-54-K4810

BRACKET

16A

21P-54-K4820

BRACKET

17

01010-51025

BOLT

18

01643-31032

WASHER

19

205-54-68440

PLATE

20

01224-40616

SCREW

21

20Y-54-32350

BAR

22

04050-13018

PIN

23

01643-51032

WASHER

24

20B-54-12210

SPRING

25

01220-40408

SCREW

26

01641-20405

WASHER

27

01010-51230

BOLT

28

175-54-34170

WASHER

29

20Y-54-32440

COVER

30

01010-51230

BOLT

31

175-54-34170

WASHER

32

01010-51230

BOLT

|32

01010-51230

BOLT

33

01643-31232

WASHER

|33

01643-31232

WASHER
