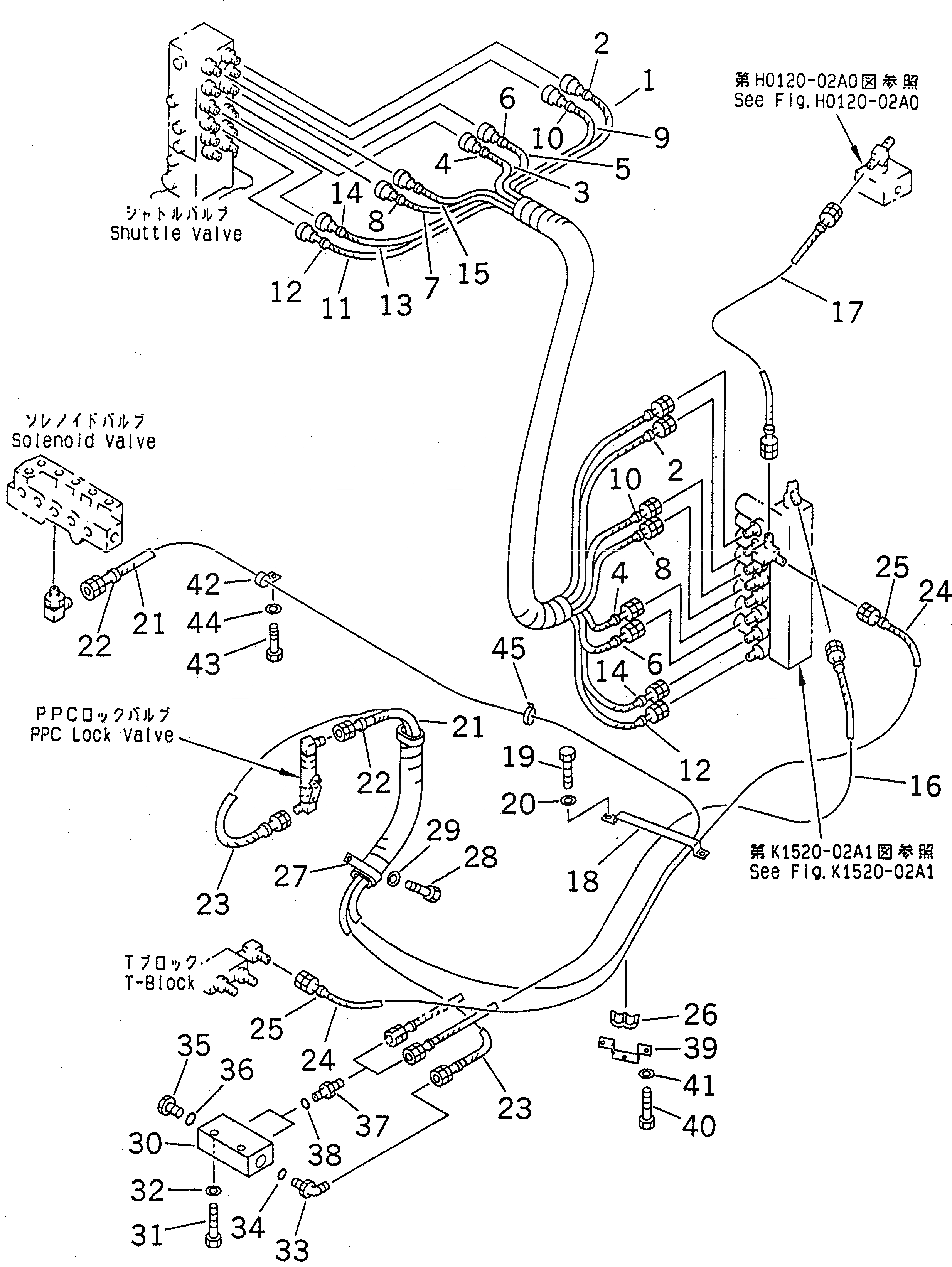

Запчасти Komatsu PC210-6G РАБОЧАЯ ЛИНИЯ PPC (ЛИНИЯ КЛАПАНА EPC) (EPC)(№-99) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ
№
Артикул
Название
Примечание
Количество
1
20Y-62-23830
HOSE
|1
20Y-62-22590
HOSE
2
20Y-62-22790
BAND¤ RED
3
20Y-62-23830
HOSE
|3
20Y-62-22590
HOSE
4
20Y-62-22810
BAND
5
20Y-62-23830
HOSE
|5
20Y-62-22590
HOSE
6
20Y-62-22820
BAND¤ BLUE
7
20Y-62-23830
HOSE
|7
20Y-62-22590
HOSE
8
20Y-62-22830
BAND¤ WHITE
9
20Y-62-23830
HOSE
|9
20Y-62-22590
HOSE
10
20Y-62-22840
BAND
11
20Y-62-23830
HOSE
|11
20Y-62-22590
HOSE
12
20Y-62-22850
BAND¤ GREEN
13
20Y-62-23830
HOSE
|13
20Y-62-22590
HOSE
14
20Y-62-22860
BAND¤ BROWN
15
20Y-62-23830
HOSE
|15
20Y-62-22590
HOSE
16
20Y-62-23510
HOSE¤ 1200MM
17
20Y-62-23490
HOSE
18
20Y-62-22291
CLAMP
19
01010-51230
BOLT
20
01643-31232
WASHER
21
20Y-62-22890
HOSE¤ 2950MM
22
20Y-62-22790
BAND¤ RED
23
20Y-62-22910
HOSE¤ 1050MM
24
20Y-62-23480
HOSE¤ 1450MM
25
20Y-62-22820
BAND¤ BLUE
26
20Y-62-22190
CLAMP
27
04435-51608
CLIP
28
01010-50816
BOLT
29
01643-30823
WASHER
30
20Y-62-22151
BLOCK
31
01010-51050
BOLT
32
01643-31032
WASHER
33
07235-10315
ELBOW
34
07002-02034
O-RING
35
207-62-33920
ELBOW
36
07002-01423
O-RING
37
205-62-55270
NIPPLE
38
07002-01423
O-RING
39
20Y-62-22210
BRACKET
40
01010-51016
BOLT
41
01643-31032
WASHER
42
08036-01414
CLIP
|42
08036-01414
CLIP
43
01010-51230
BOLT
|43
01010-51230
BOLT
44
01643-31232
WASHER
|44
01643-31232
WASHER
45
08034-00519
BAND
Выбрано товаров: 56
