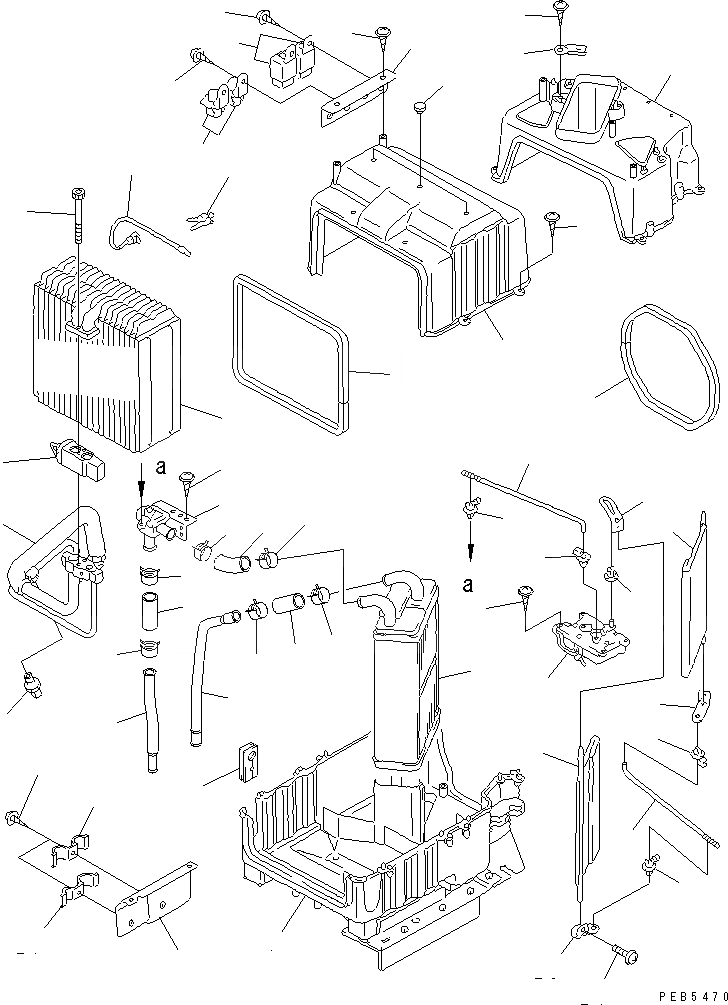

Запчасти Komatsu PC210-6G СЕРДЦЕВИНА БЛОК В СБОРЕ (С КОНДИЦИОНЕРОМ)(№98-97) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

ND445800-9054

CORE UNIT ASS'Y

|1

ND445800-9052

CORE UNIT ASS'Y

1

ND245420-4093

CASE

|1

ND245420-4092

CASE

2

ND447600-0651

EVAPORATOR

|2

ND949142-0030

O-RING

3

ND077500-2580

THERMISTOR

4

ND246690-2840

CLAMP

5

ND447500-1031

VALVE

|5

ND447500-1030

VALVE

6

ND446870-1990

TUBE

|6

ND949142-0030

O-RING

|6

ND949142-0010

O-RING

7

ND949046-2150

BOLT

8

ND146984-5680

GROMMET

9

ND116730-0490

DOOR ASS'Y

10

ND116730-0500

DOOR ASS'Y

11

ND245420-4020

CASE ASS'Y

12

ND116452-6060

CASE

13

ND949001-1730

SCREW

14

ND116420-2781

CORE ASS'Y

|14

ND116420-2780

CORE ASS'Y

15

ND116427-5920

PIPE

16

195-979-4841

HOSE

17

ND113600-9301

VALVE ASS'Y

|17

ND113600-9300

VALVE ASS'Y

18

ND017265-5480

HOSE

19

ND116427-5930

PIPE

20

ND246780-4220

CLAMP

21

ND246780-4000

CLAMP

22

ND949001-2690

SCREW

23

ND017732-3041

LEVER

24

ND91370-03081

SCREW

25

ND017732-3060

LEVER

26

ND017732-4600

LEVER

27

17M-911-3330

BUSHING

28

17M-911-3290

CLAMP

29

ND116662-3780

SHAFT

30

ND063700-6390

SERVO MOTOR ASS'Y

31

195-Z11-6280

BUSHING

32

ND90930-05201

SCREW

33

ND146668-4880

PACKING

34

ND056700-8170

RELAY ASS'Y

35

20Y-979-2680

RELAY

|35

ND056700-6630

RELAY

36

ND017660-3490

BRACKET

37

ND146525-3990

BRACKET

38

ND90930-05121

SCREW

39

ND146525-4000

BRACKET

40

ND90930-06141

SCREW

41

ND949351-0720

CLAMP

42

ND246690-5150

CLAMP

43

ND443440-0030

SWITCH

|43

ND949142-0160

O-RING

|43

ND949142-0040

O-RING

44

ND146668-2030

PACKING
