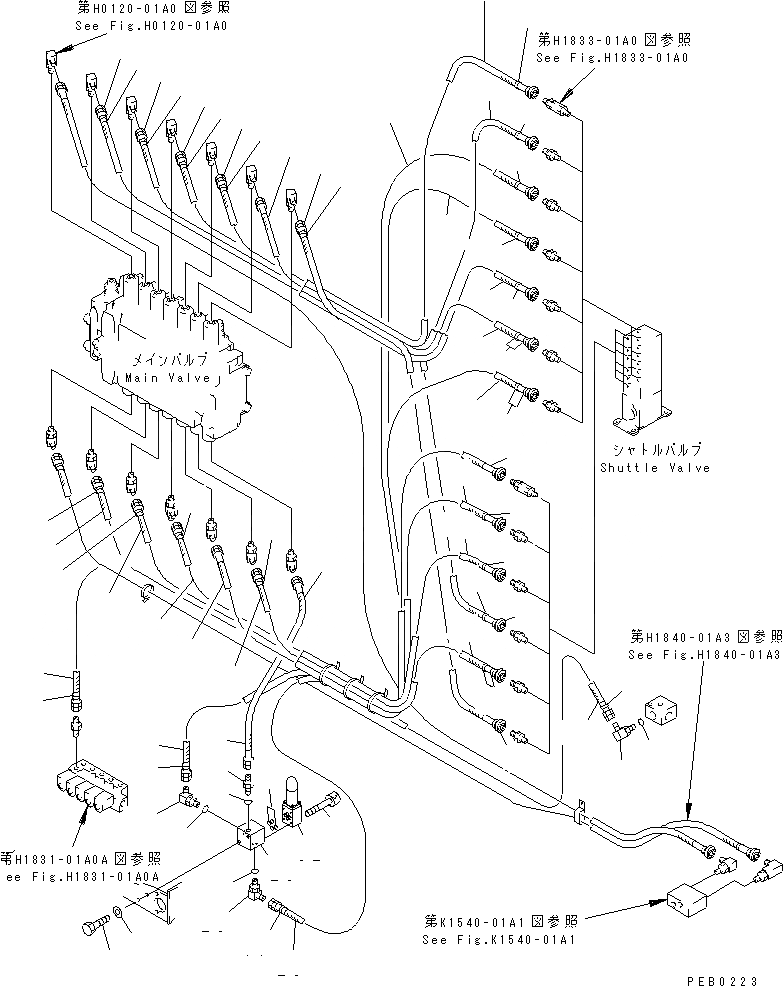

Запчасти Komatsu PC210-6 ОСНОВН. ЛИНИЯ PPC (КЛАПАН ЛИНИИ PPCS) ( АКТУАТОР) (СПЕЦ-Я ДЛЯ РАЗРУШ. ЗДАНИЙ)(№-9) ГИДРАВЛИКА

1

20Y-62-22660

HOSE¤ 470MM

2

20Y-62-22850

BAND¤ GREEN

3

20Y-62-22670

HOSE¤ 355MM

4

20Y-62-22830

BAND¤ WHITE

5

20Y-62-22680

HOSE¤ 520MM

6

20Y-62-22840

BAND

7

20Y-62-22690

HOSE¤ 315MM

8

20Y-62-22790

BAND¤ RED

9

20Y-62-22710

HOSE¤ 420MM

10

20Y-62-22720

HOSE¤ 535MM

11

20Y-62-22820

BAND¤ BLUE

12

20Y-62-22720

HOSE¤ 535MM

13

20Y-62-22790

BAND¤ RED

14

20Y-62-22740

HOSE¤ 675MM

15

20Y-62-22860

BAND¤ BROWN

16

20Y-62-23640

HOSE¤ 800MM

17

20Y-62-22820

BAND¤ BLUE

18

20Y-62-22760

HOSE¤ 840MM

19

20Y-62-22830

BAND¤ WHITE

20

20Y-62-22770

HOSE¤ 700MM

21

20Y-62-22780

HOSE¤ 650MM

22

20Y-62-22850

BAND¤ GREEN

23

20Y-62-22971

HOSE¤ 900MM

24

20Y-62-22810

BAND

25

207-62-33920

ELBOW

26

07002-01423

O-RING

27

20Y-62-23650

HOSE¤ 400MM

28

20Y-62-23630

BLOCK

29

207-62-33920

ELBOW

30

205-62-55270

NIPPLE

31

07002-01423

O-RING

32

20Y-60-21700

VALVE ASS'Y

33

205-62-74580

O-RING

34

01252-40550

BOLT

35

01010-51035

BOLT

36

01643-31232

WASHER
