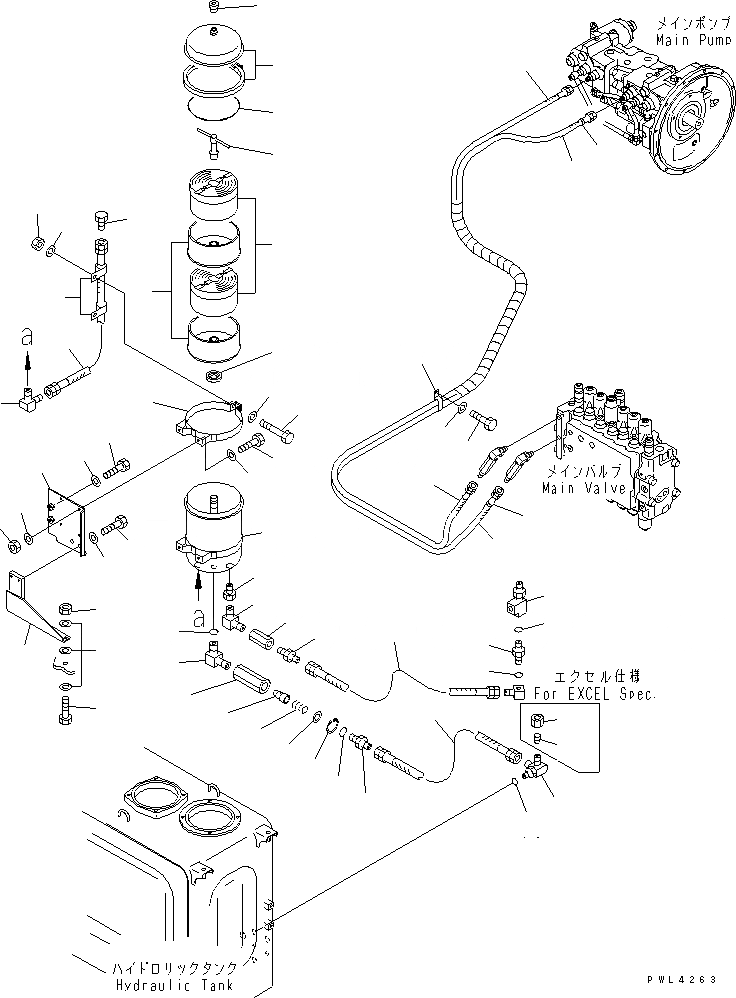

Запчасти Komatsu PC210-6 ЛИНИЯ LS(С BY-PASS ФИЛЬТР.)(№88-) ГИДРАВЛИКА

1

07096-00214

HOSE

2

20Y-62-22790

BAND¤ RED,RED

3

04435-51812

CLIP

4

01010-81225

BOLT

5

01643-31232

WASHER

6

20Y-62-26300

FILTER

7

20Y-62-26340

PACKING

8

20Y-62-26320

ELEMENT

9

20Y-62-26330

O-RING

10

07043-00211

PLUG

11

20Y-62-26200

VALVE

12

01010-80825

BOLT

13

01643-30823

WASHER

14

01580-10806

NUT

15

07326-10402

ADAPTER

16

113-04-32120

ELBOW

17

07238-10210

CONNECTOR

18

20Y-62-26350

ELBOW

19

07002-02034

O-RING

|20

205-60-64300

CHECK VALVE ASS'Y

20

04065-01410

RING

21

BODY

22

205-60-51390

POPPET

23

205-60-51410

SPRING

24

205-60-51420

SEAT

25

07230-20315

UNION

26

07002-02034

O-RING

27

144-04-51130

ELBOW

28

20Y-62-26370

BRACKET

29

20Y-62-26360

BRACKET

30

01010-81230

BOLT

31

01643-31232

WASHER

32

01016-51250

BOLT

33

01580-11210

NUT

34

07184-00305

HOSE

35

07376-50315

PLUG

36

01016-50860

BOLT

37

01643-30823

WASHER

38

01580-10806

NUT

39

08036-01414

CLIP

40

07184-00207

HOSE

41

207-62-61680

TEE

42

203-62-62810

NIPPLE

43

07002-01423

O-RING

44

20Y-62-23520

TEE

45

07002-02034

O-RING

46

07221-20315

NUT

47

07222-00312

PLUG

48

07184-00306

HOSE,SLIM
