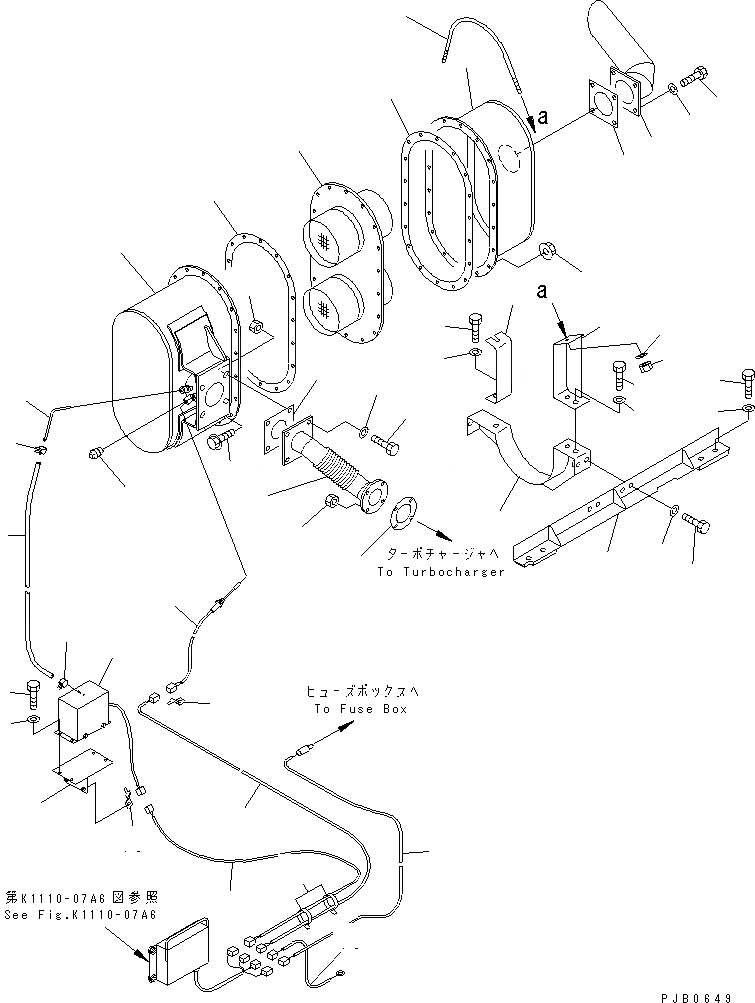

Запчасти Komatsu PC210-6 КЕРАМИЧ. ГЛУШИТЕЛЬ(№-8) КОМПОНЕНТЫ ДВИГАТЕЛЯ

|1

6138-12-5512

MUFFLER,CERAMIC

1

6138-12-5550

FILTER

2

6138-12-5521

BODY ASS'Y

3

6138-12-5531

BODY ASS'Y

4

6138-12-5561

GASKET

5

01435-01030

BOLT

6

01584-01008

NUT

7

07042-20108

PLUG

8

20Y-01-21570

TUBE

9

01580-00806

NUT

10

6205-11-5820

GASKET

11

01010-31240

BOLT

12

01643-31232

WASHER

13

01580-01210

NUT

14

6138-11-5810

GASKET

15

20Y-01-21560

PIPE

16

01010-31225

BOLT

17

01643-31232

WASHER

18

6138-11-5810

GASKET

19

20Y-54-23820

FRAME

20

01010-31240

BOLT

21

01643-31232

WASHER

22

20Y-01-21530

BRACKET

23

01010-31225

BOLT

24

01643-31232

WASHER

25

20Y-01-21540

BRACKET

26

01010-31225

BOLT

27

01643-31232

WASHER

28

20Y-01-21520

BRACKET

29

01010-31225

BOLT

30

01643-31232

WASHER

31

20Y-01-21510

U-BOLT

32

01580-01008

NUT

33

01643-31032

WASHER

34

6138-82-5560

SENSOR

35

08053-01512

CLIP

36

20Y-01-21620

WIRING HARNESS

37

6138-12-5570

TUBE

38

6138-12-5580

HOSE

39

07285-00100

CLIP

40

6138-82-5550

SENSOR

41

20Y-01-21550

BRACKET

42

01010-30820

BOLT

43

01643-50823

WASHER

44

20Y-01-21610

WIRING HARNESS

45

08053-01512

CLIP

46

20Y-01-21580

WIRING HARNESS

47

20Y-01-21590

WIRING HARNESS

48

08034-00519

BAND
