Запчасти Komatsu PC210-6 МОТОР ХОДА (/)(№9-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

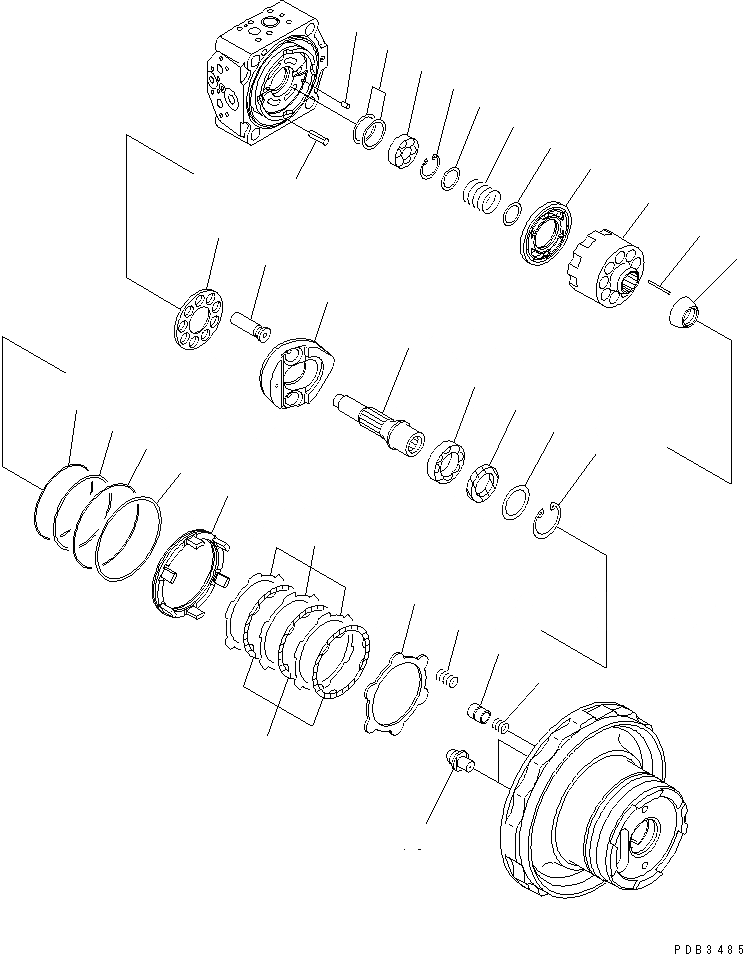

Схема запчастей Komatsu PC210-6 - МОТОР ХОДА (/)(№9-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

Артикул

Название

Примечание

Количество

|$4

708-8F-00111

MOTOR ASS'Y

|$5

708-8F-00110

MOTOR ASS'Y

|$6

708-8F-00061

MOTOR ASS'Y

|$7

708-8F-00060

MOTOR ASS'Y

1

708-8F-32110

SHAFT

2

708-8F-12151

BEARING

3

708-7L-12140

BEARING

4

708-7L-05010

SPACER KIT

4

SPACER, 1.5MM

4

SPACER, 1.6MM

4

SPACER, 1.7MM

4

SPACER, 1.8MM

4

SPACER, 1.9MM

4

SPACER, 2.0MM

5

706-7G-11291

SEAL,OIL

5

706-7G-11290

SEAL,OIL

6

708-8F-12230

SPACER, 3.2MM

7

04065-07225

RING

8

BLOCK,CYLINDER

8

BLOCK,CYLINDER

9

PLATE,VALVE

9

PLATE,VALVE

10

PIN

11

708-8F-33360

PIN

12

708-7L-13140

SEAT

13

708-8F-33150

SPRING

14

04065-04818

RING

15

708-8F-33350

GUIDE,RETAINER

16

708-2L-33350

RETAINER,SHOE

16

708-8F-33340

RETAINER,SHOE

17

708-8F-33310

PISTON SUB ASS'Y

18

708-8F-33411

CAM,ROCKER

18

708-8F-33410

CAM,ROCKER

19

708-8F-33710

BALL,RETAINER

20

708-8F-34141

PISTON

21

708-8F-34150

SPRING

22

708-8F-35110

PLATE

23

708-8F-35130

PLATE

24

708-8F-35120

DISC

25

708-8F-35140

PISTON,BRAKE

26

708-8F-35160

O-RING

27

708-8F-35170

RING,BACK-UP

28

708-8F-35180

O-RING

29

708-8F-35190

RING,BACK-UP

30

708-8F-35150

SPRING

31

04025-00324

PIN,SPRING

Выбрано товаров: 46
