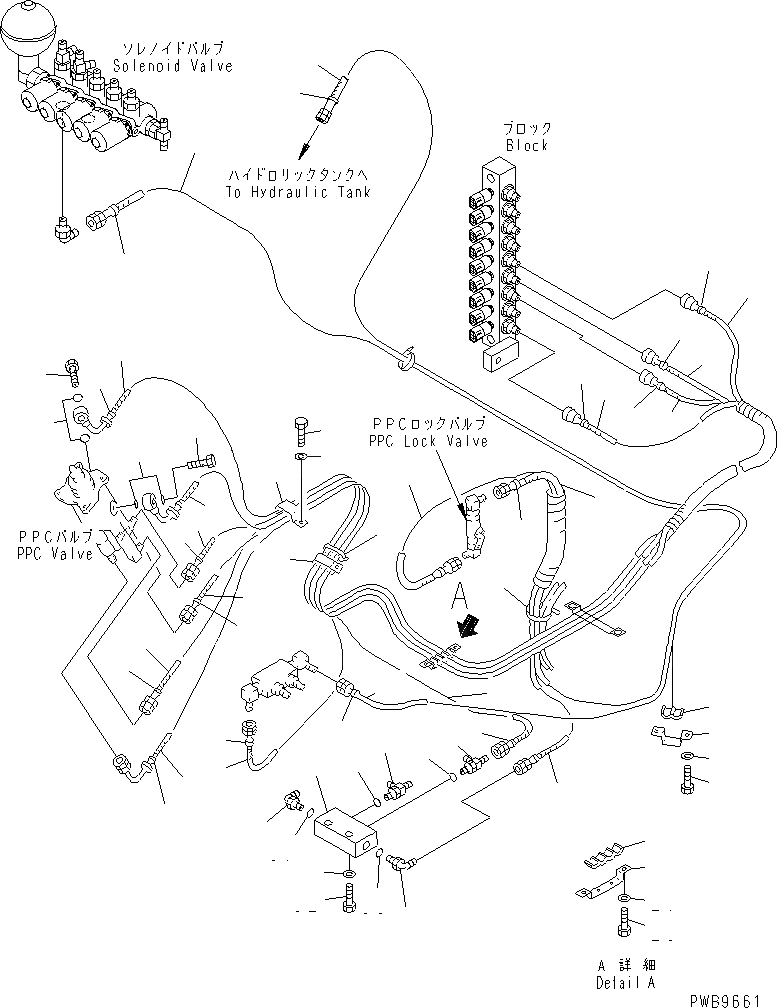

Запчасти Komatsu PC210-6 ОСНОВН. КОНСТРУКЦИЯ (РАБОЧАЯ ЛИНИЯ PPC) (RIGTH СТОЙКА ШЛАНГИ) ( АКТУАТОР)(№98-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

08034-00536

BAND

2

20Y-62-23311

HOSE, 1520MM

3

20Y-62-22790

BAND, RED

4

20Y-62-23321

HOSE, 1000MM

5

20Y-62-22820

BAND, BLUE

6

20Y-62-23342

HOSE, 2920MM

7

20Y-62-22850

BAND, GREEN

8

20Y-62-23342

HOSE, 2920MM

9

20Y-62-22830

BAND, WHITE

10

20Y-62-23351

HOSE, 2970MM

11

20Y-62-22840

BAND, BLACK

12

20Y-62-23361

HOSE, 3000MM

13

20Y-62-22860

BAND, BROWN

14

20Y-62-22170

CLAMP

15

20Y-62-18910

PLUG

16

07000-02018

O-RING

17

20Y-62-18890

BOLT, JOINT

18

07000-02015

O-RING

19

20Y-62-22180

CLAMP

20

01010-81016

BOLT

21

01643-31032

WASHER

22

20Y-43-21740

CLIP

23

01010-80816

BOLT

24

01643-30823

WASHER

25

20Y-62-22890

HOSE, 2950MM

26

20Y-62-22790

BAND, RED

27

20Y-62-22910

HOSE, 1050MM

28

203-62-63220

HOSE, 3400MM

29

20Y-62-22820

BAND, BLUE

30

20Y-62-22190

CLAMP

31

20Y-62-22151

BLOCK

32

01010-81050

BOLT

33

01643-31032

WASHER

34

07235-10315

ELBOW

35

07002-02034

O-RING

36

07235-10210

ELBOW

37

07002-01423

O-RING

38

208-62-17550

TEE

39

07002-01423

O-RING

40

20Y-62-22210

BRACKET

41

01010-81016

BOLT

42

01643-31032

WASHER

43

08034-00519

BAND
