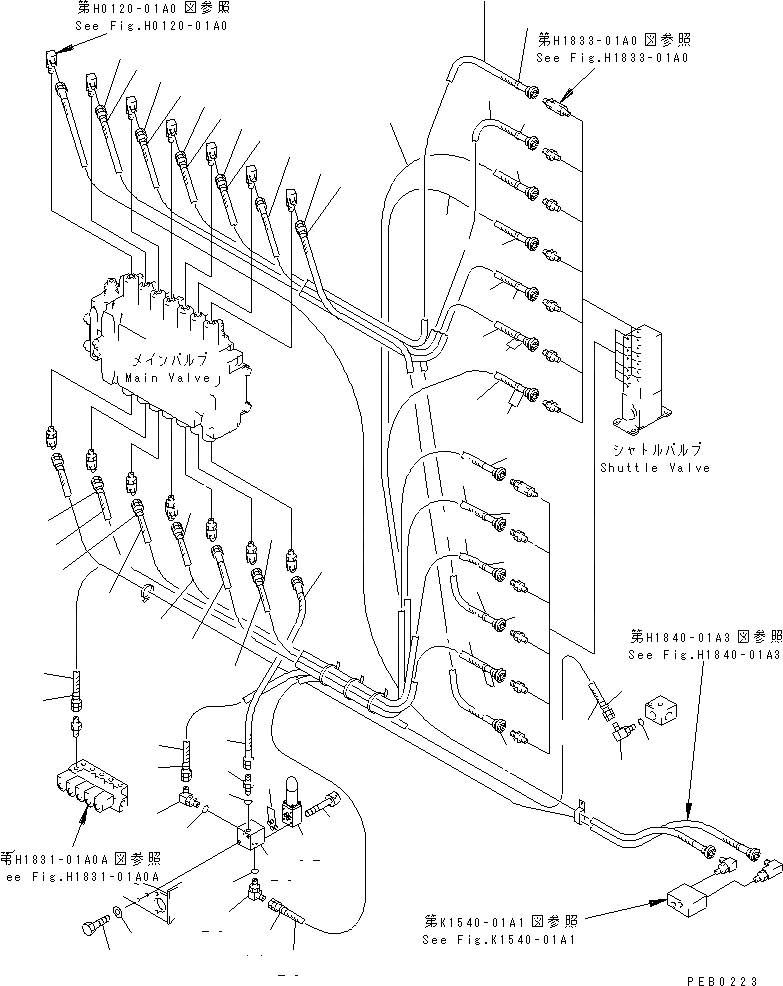

Запчасти Komatsu PC210-6 ОСНОВН. ЛИНИЯ PPC (КЛАПАН ЛИНИИ PPCS) ( АКТУАТОР) (СПЕЦ-Я ДЛЯ РАЗРУШ. ЗДАНИЙ)(№-9) ГИДРАВЛИКА

1

20Y-62-22660

HOSE, 470MM

2

20Y-62-22850

BAND, GREEN

3

20Y-62-22670

HOSE, 355MM

4

20Y-62-22830

BAND, WHITE

5

20Y-62-22680

HOSE, 520MM

6

20Y-62-22840

BAND, BLACK

7

20Y-62-22690

HOSE, 315MM

8

20Y-62-22790

BAND, RED

9

20Y-62-22710

HOSE, 420MM

10

20Y-62-22720

HOSE, 535MM

11

20Y-62-22820

BAND, BLUE

12

20Y-62-22720

HOSE, 535MM

13

20Y-62-22790

BAND, RED

14

20Y-62-22740

HOSE, 675MM

15

20Y-62-22860

BAND, BROWN

16

20Y-62-23640

HOSE, 800MM

17

20Y-62-22820

BAND, BLUE

18

20Y-62-22760

HOSE, 840MM

19

20Y-62-22830

BAND, WHITE

20

20Y-62-22770

HOSE, 700MM

21

20Y-62-22780

HOSE, 650MM

22

20Y-62-22850

BAND, GREEN

23

20Y-62-22971

HOSE, 900MM

24

20Y-62-22810

BAND, YELLOW

25

207-62-33920

ELBOW

26

07002-01423

O-RING

27

20Y-62-23650

HOSE, 400MM

28

20Y-62-23630

BLOCK

29

207-62-33920

ELBOW

30

205-62-55270

NIPPLE

31

07002-01423

O-RING

32

20Y-60-21700

VALVE ASS'Y

33

205-62-74580

O-RING

34

01252-40550

BOLT

35

01010-51035

BOLT

36

01643-31232

WASHER
