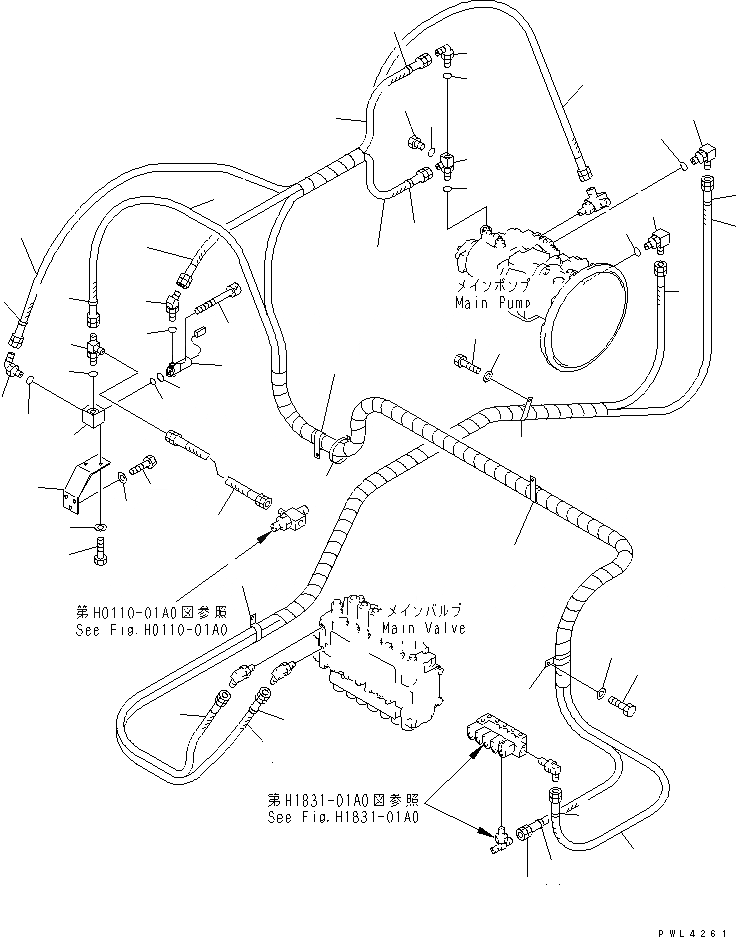

Запчасти Komatsu PC210-6 LS ЛИНИИ(№-99) ГИДРАВЛИКА

1

20Y-62-22460

HOSE, 1500MM

2

20Y-62-22790

BAND, RED

3

20Y-62-22420

HOSE

4

04435-51612

CLIP

5

01010-51225

BOLT

6

01643-31232

WASHER

7

207-62-33920

ELBOW

8

07002-11423

O-RING

9

20Y-62-23460

ELBOW

10

07002-01423

O-RING

11

20Y-62-22950

HOSE

12

20Y-62-23590

HOSE

13

20Y-62-22990

HOSE, 2150MM

14

20Y-62-23210

HOSE

15

20Y-62-22790

BAND, RED

16

20Y-62-22810

BAND, YELLOW

17

20Y-62-22820

BAND, BLUE

18

20Y-62-22341

TEE

19

07002-02434

O-RING

20

07235-10315

ELBOW

21

07002-02034

O-RING

22

07040-11007

PLUG

23

07002-01023

O-RING

24

04435-51512

CLIP

25

01010-51225

BOLT

26

01643-31232

WASHER

27

702-21-07010

VALVE ASS'Y,EPC

27A

203-60-62220

BOLT

28

700-93-11320

O-RING

29

07000-02011

O-RING

30

209-62-57210

TEE

31

07002-02034

O-RING

32

20Y-62-22110

BLOCK

33

20Y-62-23160

HOSE

33

20Y-62-22430

HOSE

34

07235-10315

ELBOW

35

07002-02034

O-RING

35A

08034-00519

BAND

36

20Y-62-22121

BRACKET

37

01010-51025

BOLT

38

01643-31032

WASHER

39

01010-51230

BOLT

40

01643-31232

WASHER
