Запчасти Komatsu PC210-6 ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№-99) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

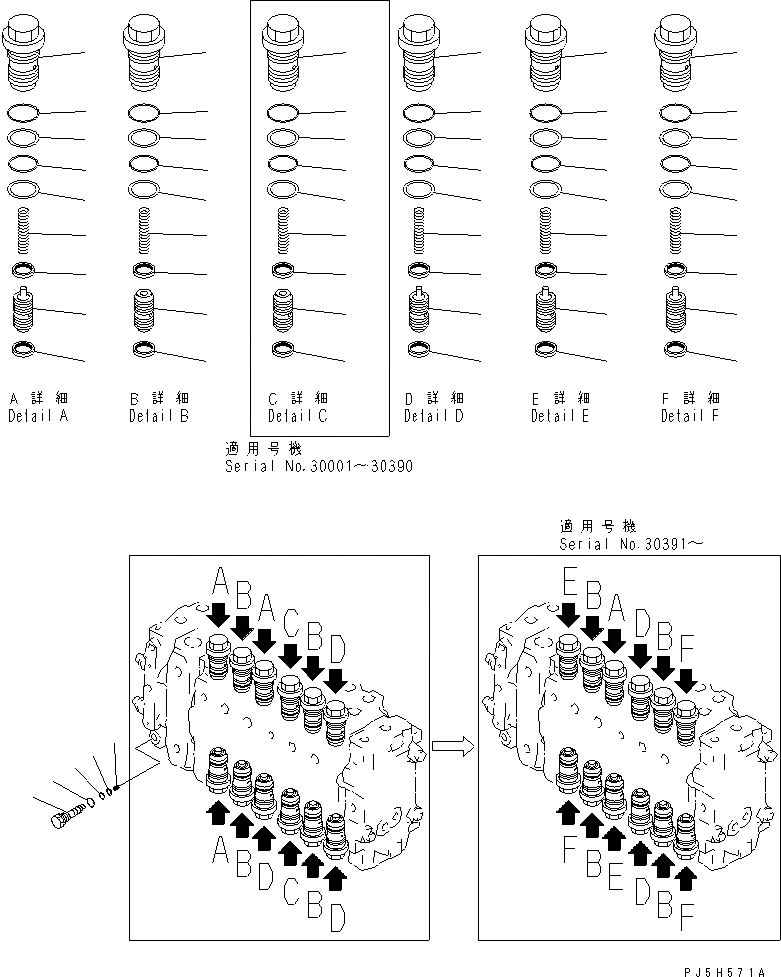

Схема запчастей Komatsu PC210-6 - ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№-99) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
4
5
6
6
7
8
9
10
11
11
12
13
13
14
15
16
17
18
18
19
20
20
21
22
23
24
25
25
26
27
27
28
29
30
31
32
33
34
35
36
37
37
38
39
39
40
41
42
43
44
44
45
46
46
47

Артикул

Название

Примечание

Количество

|$4

723-47-10500

VALVE ASS'Y

|$5

723-47-10107

VALVE ASS'Y

|$6

723-47-10105

VALVE ASS'Y

|$7

723-47-10103

VALVE ASS'Y

|$9

723-46-40100

VALVE ASS'Y

|$10

723-46-40100

VALVE ASS'Y

1

SLEEVE

2

PISTON SUB ASS'Y

3

SPRING

4

SEAL

5

700-93-11320

O-RING

6

723-46-41950

RING

7

07002-13634

O-RING

|$18

723-46-40300

VALVE ASS'Y

8

SLEEVE

9

PISTON

10

SPRING

11

SEAL

12

700-93-11320

O-RING

13

723-46-41950

RING

14

07002-13634

O-RING

|$26

723-46-40200

VALVE ASS'Y

|$27

723-46-40400

VALVE ASS'Y

15

SLEEVE

16

PISTON SUB ASS'Y

16

PISTON

17

SPRING

18

SEAL

19

700-93-11320

O-RING

20

723-46-41950

RING

21

07002-13634

O-RING

|$36

723-46-41100

VALVE ASS'Y

|$37

723-46-41100

VALVE ASS'Y

22

SLEEVE

23

PISTON SUB ASS'Y

24

SPRING

25

SEAL

26

700-93-11320

O-RING

27

723-46-41950

RING

28

07002-13634

O-RING

|$45

723-46-15100

PLUG ASS'Y

29

PLUG

30

SCREW

31

07002-11423

O-RING

32

07000-11007

O-RING

33

07001-01007

RING,BACK-UP

|$51

723-46-46101

VALVE ASS'Y

34

SLEEVE

35

PISTON SUB ASS'Y

36

SPRING

37

SEAL

38

700-93-11320

O-RING

39

723-46-41950

RING

40

07002-13634

O-RING

|$59

723-46-45100

VALVE ASS'Y

41

SLEEVE

42

PISTON SUB ASS'Y

43

SPRING

44

SEAL

45

700-93-11320

O-RING

46

723-46-41950

RING

47

07002-13634

O-RING

Выбрано товаров: 62
