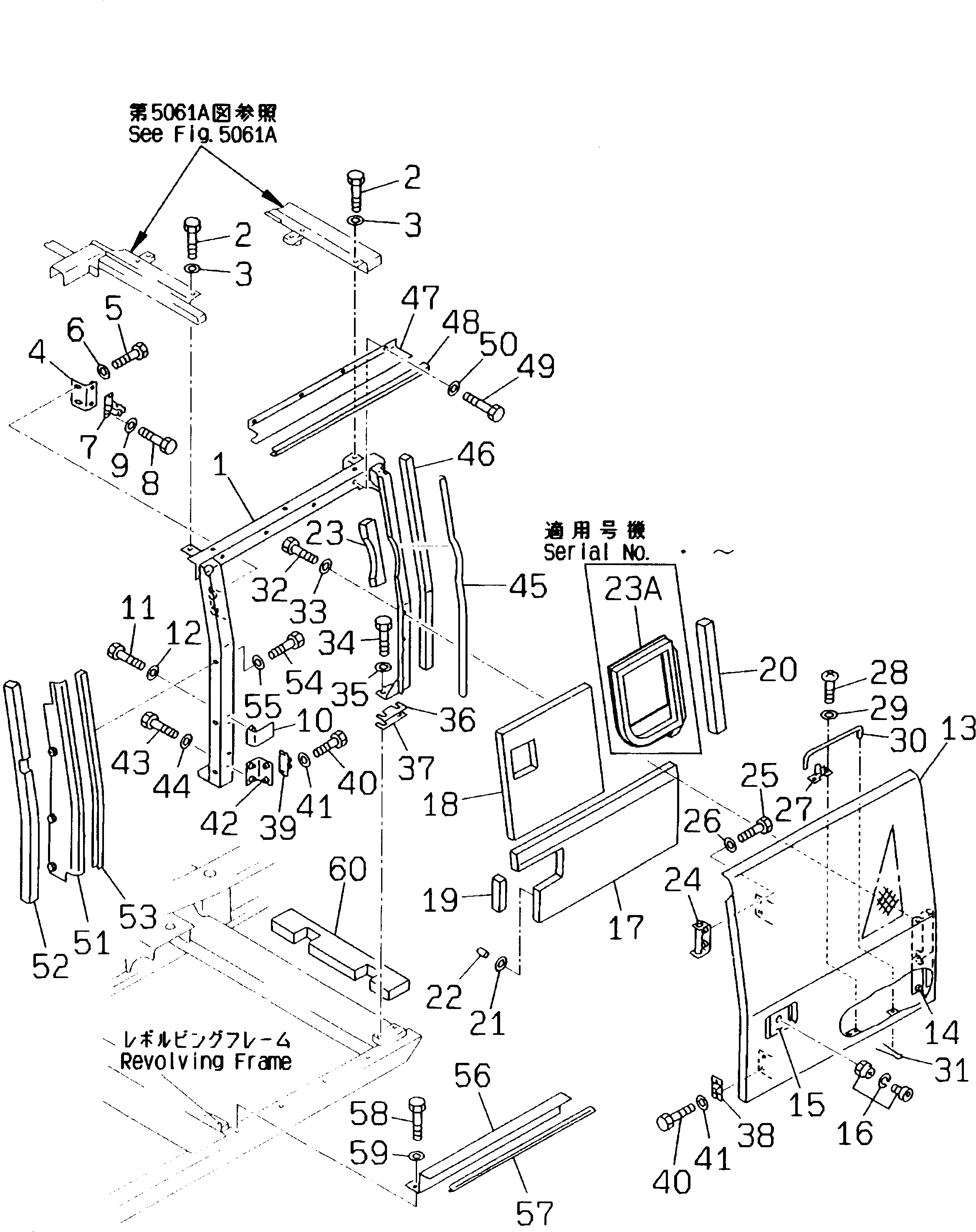

Запчасти Komatsu PC210-5K ЛЕВ. COVER(№K7-) ЧАСТИ КОРПУСА
№
Артикул
Название
Примечание
Количество
1
206-54-58440
FRAME
2
01010-51230
BOLT
3
01643-31232
WASHER
4
20Y-54-12941
PLATE
5
01010-51225
BOLT
6
01643-31232
WASHER
7
20Y-54-12920
CLAMP
8
01010-51020
BOLT
9
01643-31032
WASHER
10
20Y-54-12380
PLATE
11
01010-51025
BOLT
12
01643-31032
WASHER
13
20Y-54-K4680
DOOR
14
20Y-54-12750
HINGE (WELDED)
15
421-54-11372
LOCK ASS'Y (WELDED)
16
421-54-11381
LOCK
17
20Y-54-K4710
SHEET
18
20Y-54-K4860
SHEET
19
20Y-54-12760
SEAL
20
20Y-54-K4810
SHEET
21
205-54-K5371
WASHER
22
205-54-K5320
CAP
23
20Y-54-K5130
SHEET
23A
206-54-59880
PLATE
24
207-54-31870
BRACKET
25
01010-51020
BOLT
26
01643-31032
WASHER
27
20B-54-12210
SPRING
28
01220-40408
SCREW
29
01641-20405
WASHER
30
205-54-64140
BAR
31
04050-13018
PIN,COTTER
32
01010-51225
BOLT
33
20Y-54-12670
WASHER
34
01010-51230
BOLT
35
01643-31232
WASHER
36
20Y-54-12690
PLATE¤ 1.0MM
37
20Y-54-12680
PLATE¤ 3.2MM
38
205-54-53550
DOVE TAIL
39
205-54-51970
DOVE TAIL
40
01010-50616
BOLT
41
01643-30623
WASHER
42
20Y-54-12980
BRACKET
43
01010-51025
BOLT
44
01643-31032
WASHER
45
20Y-54-K4830
SEAL
46
20Y-54-K4980
SHEET
47
20Y-54-K4750
BRACKET
48
20Y-54-K4740
SEAL
49
01010-50616
BOLT
50
01643-30623
WASHER
51
20Y-54-K4770
BRACKET
52
20Y-54-K4790
SHEET
53
20Y-54-K4820
SEAL
54
01010-51020
BOLT
55
01643-31032
WASHER
56
20Y-54-K4720
BRACKET
57
20Y-54-K4740
SEAL
58
01010-51225
BOLT
59
01643-31232
WASHER
60
206-54-K2690
SHEET
