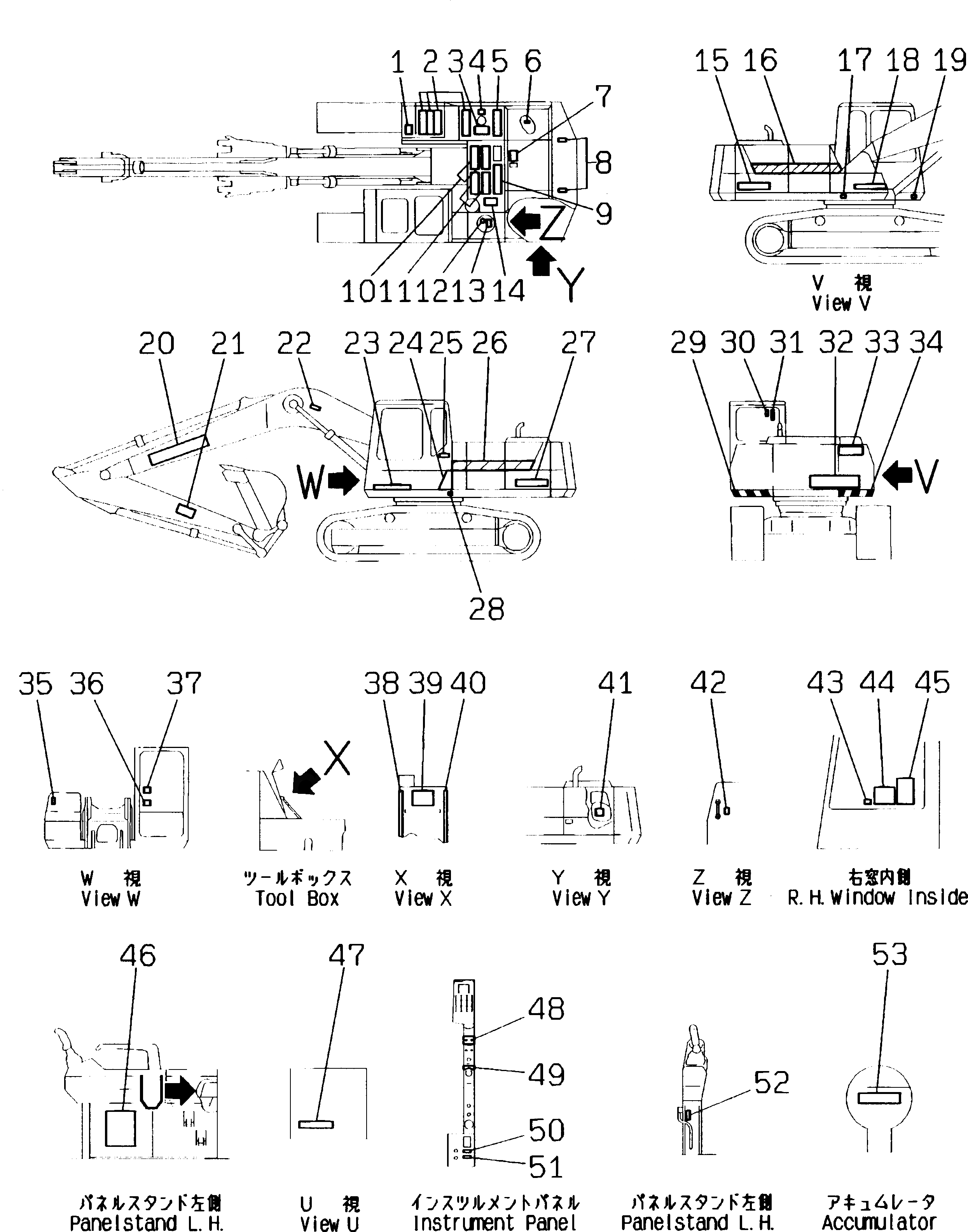

Запчасти Komatsu PC210-5K МАРКИРОВКА (ПОРТУГАЛ.) (ТРЕБ-Я ПО БЕЗОПАСНОСТИ ЕС)(№K9-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

154-54-23260

SEAT,NONSKID

2

205-54-76511

SEAT,NONSKID

3

203-00-51170

SEAT,NONSKID

4

20E-00-K1250

PLATE,FUEL

5

205-54-76511

SEAT,NONSKID

6

20E-00-K1190

PLATE¤ CAUTION,RADIATOR CAP

7

20E-00-K1310

PLATE¤ CAUTION,ENGINE COVER

8

09960-01001

PLATE¤ MARK HANDLING,HANDLING

9

21T-54-11620

SEAT,NONSKID

10

154-54-23260

SEAT,NONSKID

11

205-54-76511

SEAT,NONSKID

12

09669-00003

PLATE¤ CAUTION,HYDRAULIC TANK

13

20E-00-K1190

PLATE¤ CAUTION,HYDRAULIC TANK

14

203-00-51170

SEAT,NONSKID

15

20Y-00-18211

PLATE¤ MARK,PC210

|15

20Y-00-18221

PLATE¤ MARK,PC210LC

16

20Y-00-K1660

PLATE¤ MARK,STRIPE

17

09960-01012

PLATE¤ MARK HANDLING,HANDLING

18

09690-C0315

PLATE¤ MARK,KOMATSU

19

205-00-K1115

PLATE¤ NAME,(LIMITED SUPPLY)

|19

9205-00-K1114

PLATE¤ NAME,(LIMITED SUPPLY)

|19

205-00-K1113

PLATE¤ NAME,(LIMITED SUPPLY)

|19

205-00-72430

RIVET

20

09690-B0630

PLATE¤ MARK,KOMATSU

21

20E-00-K1140

PLATE¤ CAUTION

22

09960-01001

PLATE¤ MARK HANDLING,HANDLING

23

09690-B0315

PLATE¤ MARK,KOMATSU

24

20Y-00-K1930

PLATE¤ MARK,STRIPE

25

20Y-00-K1750

PLATE¤ MARK

26

20Y-00-K1680

PLATE¤ MARK,STRIPE

27

20Y-00-18211

PLATE¤ MARK,PC210

|27

20Y-00-18221

PLATE¤ MARK,PC210LC

28

09960-01012

PLATE¤ MARK HANDLING,HANDLING

29

20Y-00-12410

STRIPE,L.H.

30

20Y-00-K2220

PLATE,EMERGENCY EXIT

31

20E-00-K1230

PLATE¤ CAUTION,AUTO LOCK

32

20G-00-K1571

PLATE¤ MARK,KOMATSU

33

20E-00-K2250

PLATE¤ CAUTION,KEEP OUT OF TURNING AREA

34

20Y-00-12420

STRIPE,R.H.

35

20E-00-K1110

PLATE¤ CAUTION

36

09696-00108

PLATE,SOUND POWER LEVEL

37

09696-10078

PLATE,SOUND PRESSURE LEVEL

38

20Y-00-11630

PLATE

39

20Y-00-K1692

PLATE,LUBRICATION CHART

40

20Y-00-11630

PLATE

41

20Y-00-K1120

PLATE¤ INSTRUCTION,AIR CLEANER

42

205-00-73360

PLATE¤ OPERATING,OIL LEVEL

43

20Y-00-K1110

PLATE¤ OPERATING,WORK EQUIPMENT

44

20E-00-K1170

PLATE¤ CAUTION,WARNING

45

20Y-00-K2190

PLATE¤ OPERATING,LIFTING CAPACITY

46

20E-00-K1130

PLATE¤ CAUTION

47

20E-00-K1280

PLATE¤ OPERATING

48

20Y-00-K1132

PLATE¤ OPERATING,SWING PARKING BRAKE

49

20Y-00-K1140

PLATE¤ OPERATING,FUEL CONTROL

50

203-00-K1220

PLATE¤ MARK,BEACON LAMP

51

203-00-K1230

PLATE¤ MARK,HEATED SEAT

52

09685-00002

PLATE¤ OPERATING,LOCK LEVER

53

20E-00-K1210

PLATE¤ CAUTION,ACCUMULATOR
