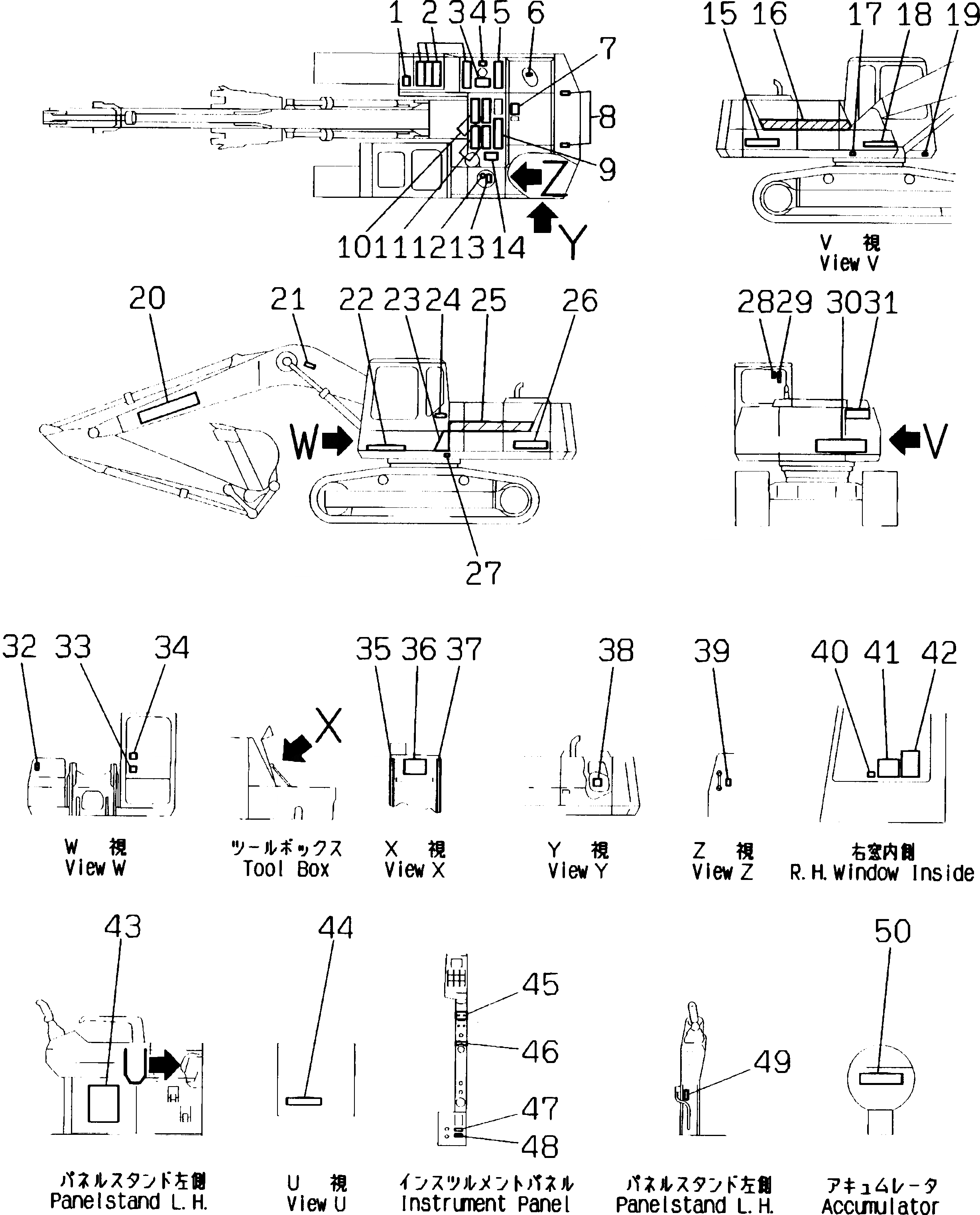

Запчасти Komatsu PC210-5K МАРКИРОВКА (АНГЛ.) (ИТАЛИЯ) (ИСПАНИЯ) (ФРАНЦИЯ) (ТРЕБ-Я ПО БЕЗОПАСНОСТИ ЕС)(№K9-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

154-54-23260

SEAT,NONSKID

2

205-54-76511

SEAT,NONSKID

3

203-00-51170

SEAT,NONSKID

4

20E-00-K1250

PLATE,FUEL

5

205-54-76511

SEAT,NONSKID

6

20E-00-K1190

PLATE¤ CAUTION,RADIATOR CAP

7

20E-00-K1310

PLATE¤ CAUTION,ENGINE COVER

8

09960-01001

PLATE¤ MARK HANDLING,HANDLING

9

21T-54-11620

SEAT,NONSKID

10

154-54-23260

SEAT,NONSKID

11

205-54-76511

SEAT,NONSKID

12

09669-00003

PLATE¤ CAUTION,HYDRAULIC TANK

13

20E-00-K1190

PLATE¤ CAUTION,HYDRAULIC TANK

14

203-00-51170

SEAT,NONSKID

15

20Y-00-18211

PLATE¤ MARK,PC210

|15

20Y-00-18221

PLATE¤ MARK,PC210LC

16

20Y-00-K1660

PLATE¤ MARK,STRIPE

17

09960-01012

PLATE¤ MARK HANDLING,HANDLING

18

09690-C0315

PLATE¤ MARK,KOMATSU

19

205-00-K1115

PLATE¤ NAME,(LIMITED SUPPLY)

|19

9205-00-K1114

PLATE¤ NAME,(LIMITED SUPPLY)

|19

205-00-K1113

PLATE¤ NAME,(LIMITED SUPPLY)

|19

205-00-72430

RIVET

20

09690-B0630

PLATE¤ MARK,KOMATSU

21

09960-01001

PLATE¤ MARK HANDLING,HANDLING

22

09690-B0315

PLATE¤ MARK,KOMATSU

23

20Y-00-K1930

PLATE¤ MARK,STRIPE

24

20Y-00-K1750

PLATE¤ MARK

25

20Y-00-K1680

PLATE¤ MARK,STRIPE

26

20Y-00-18211

PLATE¤ MARK,PC210

|26

20Y-00-18221

PLATE¤ MARK,PC210LC

27

09960-01012

PLATE¤ MARK HANDLING,HANDLING

28

20Y-00-K2220

PLATE,EMERGENCY EXIT

29

20E-00-K1230

PLATE¤ CAUTION,AUTO LOCK

30

20G-00-K1571

PLATE¤ MARK,KOMATSU

31

20E-00-K2250

PLATE¤ CAUTION,KEEP OUT OF TURNING AREA

32

20E-00-K1110

PLATE¤ CAUTION

33

09696-00108

PLATE,SOUND POWER LEVEL

34

09696-10078

PLATE,SOUND PRESSURE LEVEL

35

20Y-00-11630

PLATE

36

20Y-00-K1692

PLATE,LUBRICATION CHART

37

20Y-00-11630

PLATE

38

20E-00-K1120

PLATE¤ INSTRUCTION,AIR CLEANER

39

205-00-73360

PLATE¤ OPERATING,OIL LEVEL

40

20Y-00-K1110

PLATE¤ OPERATING,WORK EQUIPMENT

41

20E-00-K1170

PLATE¤ CAUTION,WARNING

42

20Y-00-K2190

PLATE¤ OPERATING,LIFTING CAPACITY

43

20E-00-K1130

PLATE¤ CAUTION

44

20E-00-K1280

PLATE¤ OPERATING

45

20Y-00-K1132

PLATE¤ OPERATING,SWING PARKING BRAKE

46

20Y-00-K1140

PLATE¤ OPERATING,FUEL CONTROL

47

203-00-K1220

PLATE¤ MARK,BEACON LAMP

48

203-00-K1230

PLATE¤ MARK,HEATED SEAT

49

09685-00002

PLATE¤ OPERATING,LOCK LEVER

50

20E-00-K1210

PLATE¤ CAUTION,ACCUMULATOR
