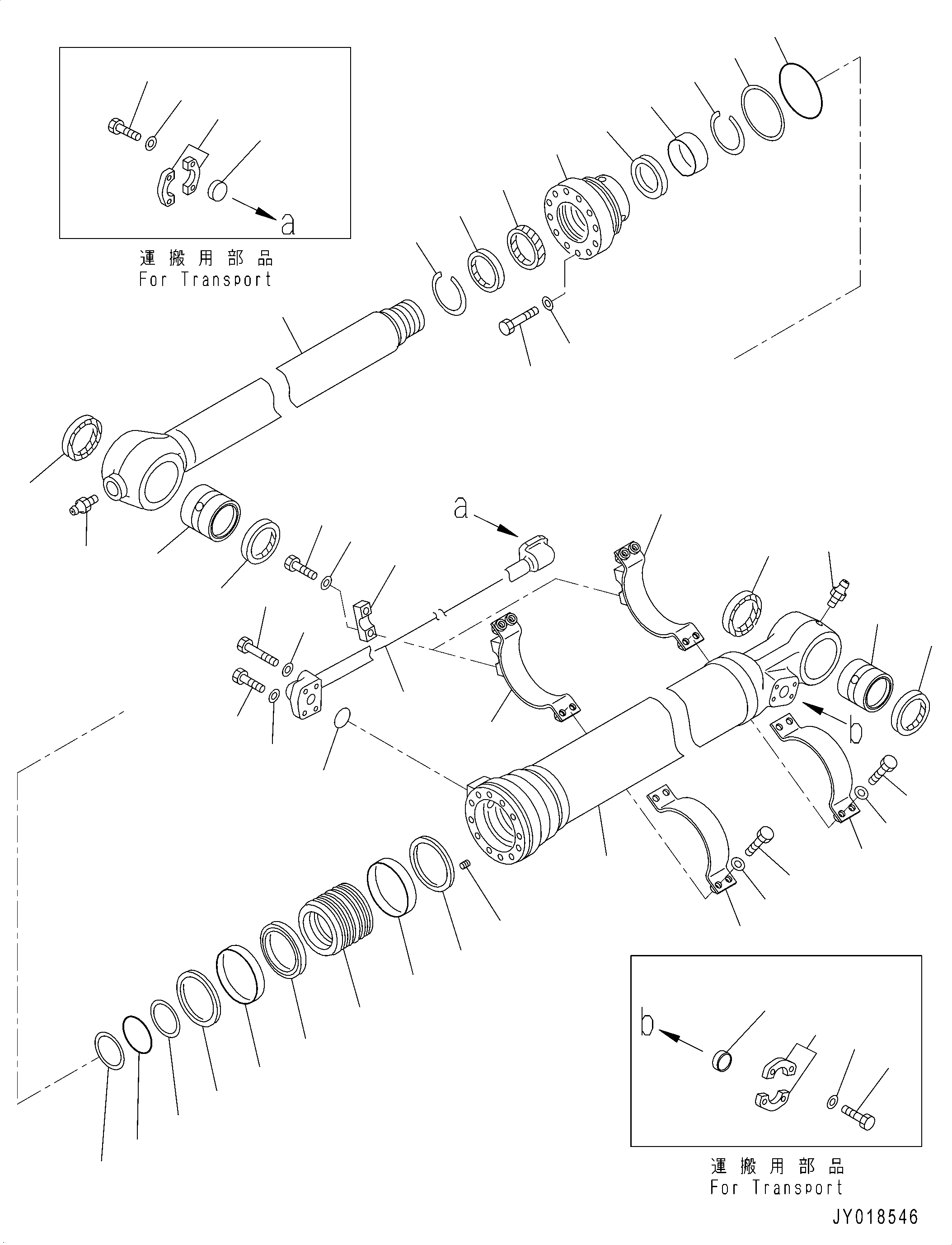

Запчасти Komatsu PC210-10 РУКОЯТЬ, MM, ЦИЛИНДР КОВША РУКОЯТЬ, MM

|$0

707-E1-01300

Cylinder Assembly

1

707-13-12760

Cylinder

2

707-58-85440

Rod, Piston

3

707-76-80420

Bushing

4

07145-00070

Seal, Dust, (Kit : K04)

5

07020-00000

Fitting, Grease

6

707-76-70120

Bushing

7

20Y-70-23220

Seal, Dust, (Kit : K04)

8

07020-00000

Fitting, Grease

9

707-27-12750

Head, Cylinder

10

07179-13099

Ring, Snap

11

707-56-85740

Seal, Dust, (Kit : K04)

12

707-52-90611

Bushing

13

707-51-85860

Packing, Rod, (Kit : K04)

14

707-51-85650

Ring, Buffer, (Kit : K04)

15

07000-B5115

O-Ring, (Kit : K04)

16

707-35-31160

Ring, Back-Up, (Kit : K04)

17

01010-81670

Bolt

18

01643-51645

Washer

19

707-75-85110

Ring, Snap

20

721-36-12030

Piston

21

707-35-30750

Ring, Back-Up, (Kit : K04)

22

07000-B5075

O-Ring (Kit : K04)

23

707-44-12921

Ring

24

707-39-12560

Ring, Wear, (Kit : K04)

25

707-44-12250

Ring, Piston, (Kit : K04)

26

01310-01216

Screw

27

707-86-69150

Tube

28

707-88-51620

Bracket

29

707-88-26740

Band

30

707-88-13590

Clamp

31

01010-81040

Bolt

32

01643-31032

Washer

33

07372-21240

Bolt

34

01643-51232

Washer

35

07372-21045

Bolt

36

01643-51032

Washer

37

07372-21060

Bolt

38

01643-51032

Washer

39

07000-13030

O-Ring, (Kit : K04)

40

07371-30640

Flange, Split

41

07371-31049

Flange, Split

42

707-88-33030

Cap

43

707-88-33040

Cap

44

07372-21035

Bolt

45

01643-51032

Washer
