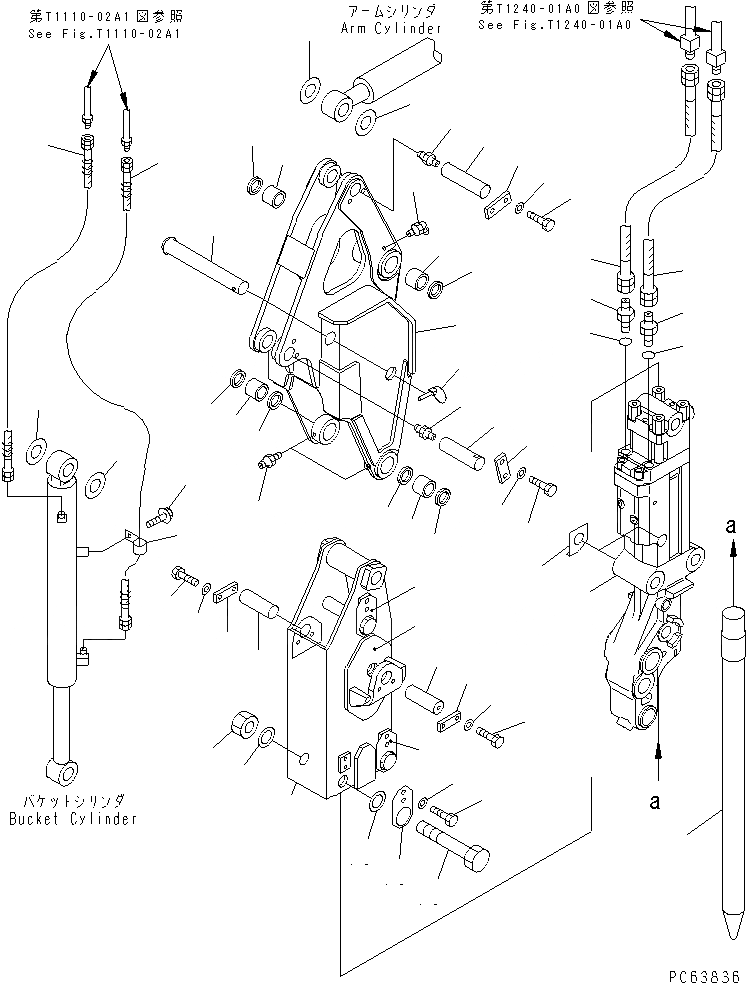

Запчасти Komatsu PC20R-8 РУКОЯТЬ (QUICK ГИДРОМОЛОТ РУКОЯТЬ СПЕЦ-Я.) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

20N-970-8102

ARM ASS'Y,1ST

1

ARM

2

20P-70-81620

BUSHING

2A

20P-71-81130

BUSHING

3

07020-00000

FITTING,GREASE

4

07020-00675

FITTING,GREASE

5

07145-00035

SEAL,DUST

6

20P-970-8124

ARM,2ND

7

20P-970-8151

BRACKET,L.H. (WELDED)

|7

20P-970-8161

BRACKET,R.H. (WELDED)

8

20P-970-8131

PIN

9

04082-00212

LOCK

10

01010-81225

BOLT

11

01643-31232

WASHER

12

20P-970-8142

PIN

13

426-46-12280

PIN,LINCH

14

20P-970-8202

BREAKER ASS'Y

15

21U-970-2850

PLATE

16

01010-81025

BOLT

17

01643-31032

WASHER

18

20P-970-8451

BOLT

19

20P-970-8170

WASHER

20

01580-12722

NUT

21

20P-970-7920

SHIM¤ 1.0MM

|21

20P-970-7930

SHIM¤ 2.0MM

|21

20P-970-7940

SHIM¤ 3.0MM

22

20P-970-8831

HOSE

23

20T-62-71150

UNION

24

07002-11823

O-RING

25

20C-970-2160

CHISEL

26

20P-970-8230

PIN

27

07020-00000

FITTING,GREASE

28

20P-970-8220

PIN

29

07020-00000

FITTING,GREASE

30

04082-00212

LOCK

31

01010-81230

BOLT

32

01643-31232

WASHER

33

20N-70-41270

SPACER¤ 1.0MM

34

20P-62-83130

HOSE

35

20P-62-83120

HOSE

36

04434-52210

CLIP

37

01435-01020

BOLT
