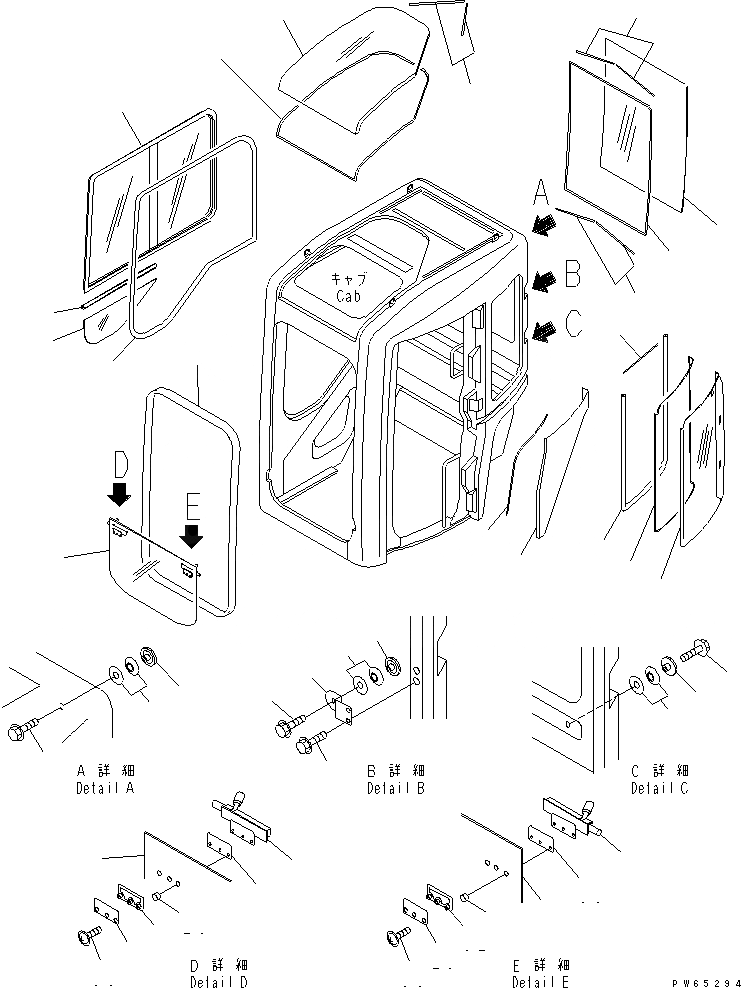

Запчасти Komatsu PC20MRX-1 КАБИНА (/) (ОКНА) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$3

22K-54-00033

CAB ASS'Y

|$4

22K-54-00030

CAB ASS'Y

1

22M-54-14730

WINDOW

2

22M-54-14820

DAM

3

22M-54-14830

DAM

4

22C-54-34711

GLASS,REAR

5

20T-54-74870

NUT

6

20T-54-74880

GROMMET

7

01435-40612

BOLT

8

01435-40610

BOLT

9

22K-54-14810

SEAL

10

22K-54-14830

BOSS

11

20T-54-74880

GROMMET

12

01435-40625

BOLT

13

22M-54-14830

DAM

14

22K-54-14820

PLATE

15

01435-40608

BOLT

16

22M-54-14880

GLASS,R.H.

17

22M-54-14761

SASH ASS'Y

17

22M-54-16430

GLASS,FRONT

17

22M-54-16420

GLASS,REAR

17

22M-54-16540

LOCK ASS'Y

17

22M-54-16440

FRAME

17

22M-54-16460

CHANNEL

17

22M-54-16470

CHANNEL

17

22M-54-16490

SEAL

17

21X-54-34190

RUBBER

17

21U-54-35880

RUBBER

18

22M-54-14780

WEATHER STRIP

19

22M-54-14870

WEATHER STRIP

20

22K-54-14740

PLATE,UPPER

21

22M-54-14850

DAM

22

22M-54-14830

DAM

23

22K-54-14691

COVER

24

20U-54-24981

DAM,FRONT

25

22C-54-35510

GLASS

26

22M-54-14560

LATCH,L.H.

27

22M-54-14570

LATCH,R.H.

28

20T-54-32780

PACKING

29

20T-54-32870

PACKING, 1.0MM

30

20T-54-32750

PACKING, 2.0MM

31

20T-54-32760

RETAINER,R.H.

32

20T-54-32770

RETAINER,L.H.

33

01023-20512

SCREW

34

205-54-71560

TRIM,FRONT

35

22K-54-15920

SEAL

35

20U-54-24651

SEAL
