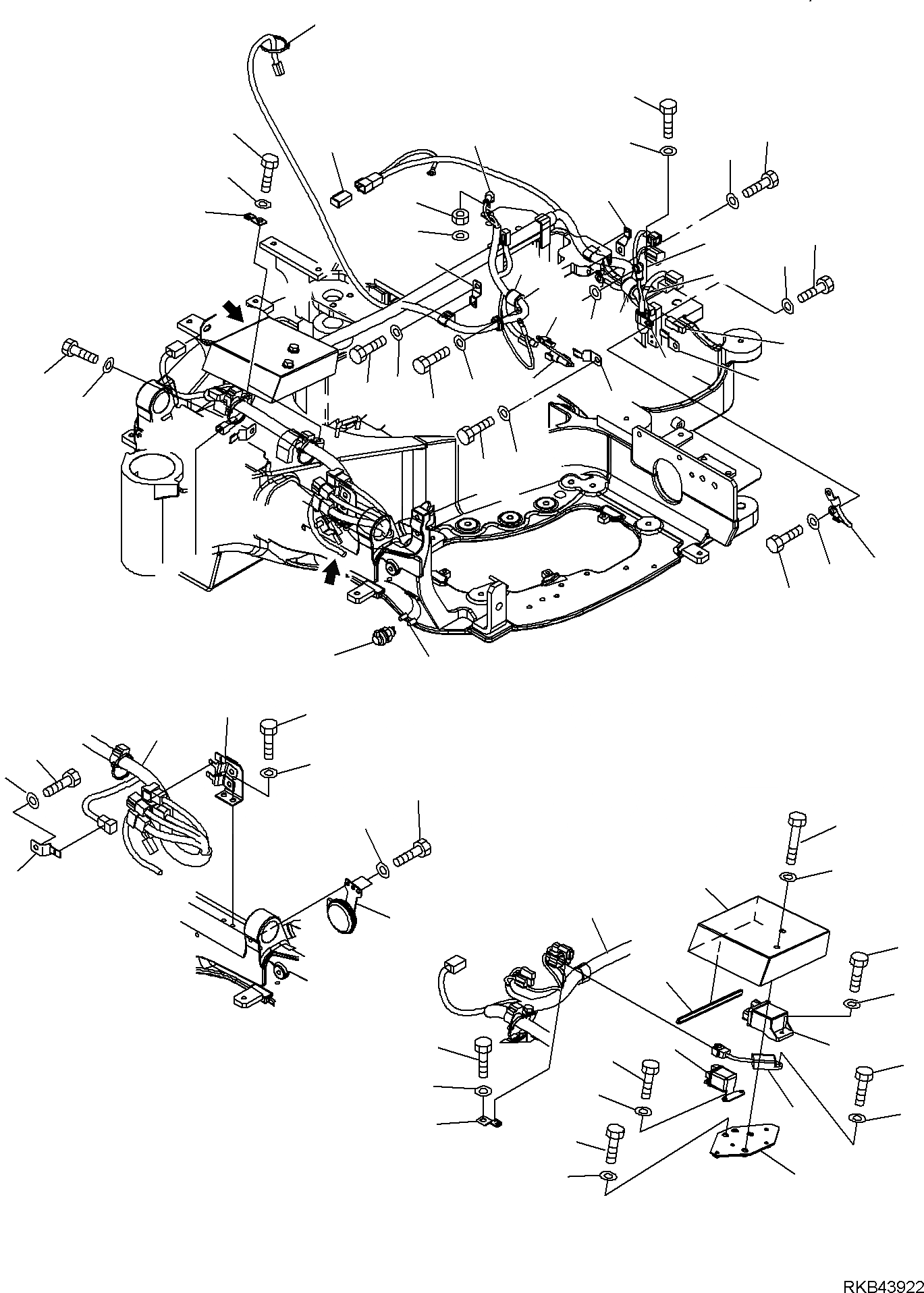

Запчасти Komatsu PC20MR-2 ЭЛЕКТРИКА (РАМА ЛИНИЯ) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

22K-06-R1311

WIRING HARNESS, FRAME LINE

2

21X-06-31530

DIODE

3

22E-06-11620

FUSE

4

04434-52711

CLIP

5

07095-20418

RUBBER

6

04434-52110

CLIP

7

07095-20314

RUBBER

8

04434-51710

CLIP

9

01010-81016

BOLT

10

01643-11032

WASHER

11

22K-06-22170

BRACKET

12

22K-06-22180

BRACKET

13

01010-81020

BOLT

14

01643-11032

WASHER

15

08193-20010

CLIP

16

01010-81020

BOLT

17

01643-11032

WASHER

18

08038-10519

COVER

19

22K-06-11170

WIRING HARNESS

20

01010-81020

BOLT

21

01643-11032

WASHER

22

42N-06-11241

HORN

23

01010-80816

BOLT

24

01643-10823

WASHER

25

22L-06-R1222

BRACKET

26

01010-81020

BOLT

27

01643-11032

WASHER

28

22L-06-21232

PLATE

29

YM119650-77910

RELAY

30

37A-09-1W057

SCREW

31

01640-20610

WASHER

32

YM129211-77920

TIMER

33

37A-09-1W059

SCREW

34

01640-20610

WASHER

35

YM119802-77200

RELAY

36

37A-09-1W060

SCREW

37

01640-20610

WASHER

38

01010-81020

BOLT

39

01643-11032

WASHER

40

22L-06-R1270

GASKET

41

22L-06-21240

COVER

42

01010-81065

BOLT

43

01643-11032

WASHER

44

22K-06-21230

WIRING HARNESS

45

04050-12030

PIN, COTTER

46

08193-20010

CLIP

47

01010-81016

BOLT

48

01643-11032

WASHER

49

08034-20536

BAND

50

01640-20408

WASHER

51

01580-10605

NUT

52

01640-20610

WASHER

53

08053-01510

CLIP

54

01010-81020

BOLT

55

01643-11032

WASHER

56

21D-06-11220

ELECTRICAL SOCKET

57

22L-06-R8220

WIRING HARNESS
