PC20MR-2 S/N 15001-UP (Cab Spec.)
/
МАРКИРОВКА
/

МАРКИРОВКА (КАБИНА) (АНГЛ.) (ДЛЯ СЕВ. АМЕРИКИ)

Запчасти Komatsu PC20MR-2 МАРКИРОВКА (КАБИНА) (АНГЛ.) (ДЛЯ СЕВ. АМЕРИКИ) МАРКИРОВКА

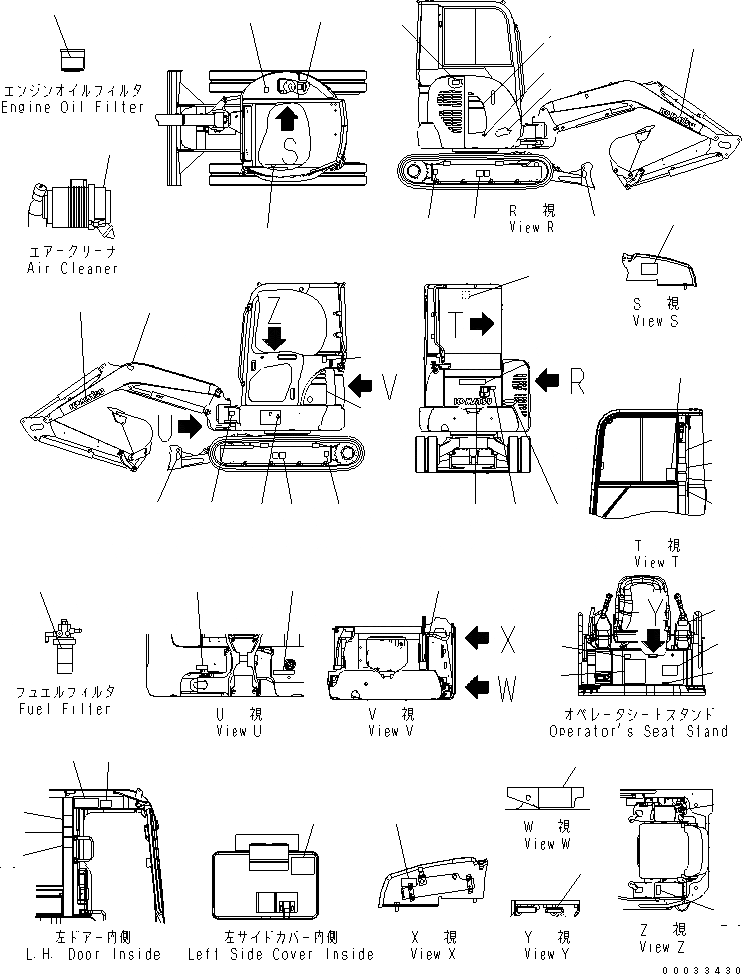

Схема запчастей Komatsu PC20MR-2 - МАРКИРОВКА (КАБИНА) (АНГЛ.) (ДЛЯ СЕВ. АМЕРИКИ) МАРКИРОВКА
1
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
15
16
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

№

Артикул

Название

Примечание

Количество

1

09657-03003

PLATE, SAFETY,TRACK ADJUSTING

2

22K-98-22580

PLATE, CAUTION,KEEP OUT OF TURNING AREA

3

09667-03001

PLATE, SAFETY,FAN BELT

4

09808-03000

PLATE, SAFETY,BATTERY CABLE

5

22L-98-22240

PLATE, SAFETY,HOT OIL WARNING

6

20M-98-83250

PLATE,HOT WATER WARNING

7

09651-03001

PLATE, SAFETY,BEFORE OPERATION WARNING

8

22K-98-22570

PLATE, SAFETY,BEFORE OPERATION WARNING

9

09654-03001

PLATE, SAFETY,LEAVING SEAT

10

09801-03001

PLATE, SAFETY,HAZARDOUS VOLTAGE HAZARD

11

09690-P0400

PLATE, MARK,KOMATSU

12

09690-F0500

PLATE, MARK,KOMATSU

13

09690-P0140

PLATE, MARK,KOMATSU

14

09601-10031

PLATE, NAME,(LIMITED SUPPLY)

14

04418-13060

SCREW

15

21U-98-31160

PLATE, MARK,LOCATION OF CENTER OF GRAVITY

16

21U-98-31150

PLATE, MARK,HANDLING

17

22J-98-1A120

PLATE,TRACK HOLDING

18

22L-98-18211

PLATE, MARK,UTILITY

19

22L-98-22380

PLATE, OPERATING,STARTER SWITCH

20

22L-98-22291

PLATE, OPERATING,LEVER LOCK

21

21S-98-32140

PLATE,CONCENTRATION GREASING

22

22F-98-17210

PLATE, CAUTION,FUEL FILTER

23

20P-98-71510

PLATE, OPERATING,FUSE BOX

24

22J-98-1A660

PLATE, CAUTION,FUEL

25

22K-98-22560

PLATE, CAUTION,HYDRAULIC OIL CHARGE

26

22L-98-22140

PLATE, OPERATING,OPERATOR'S SEAT

27

22F-98-17220

PLATE, CAUTION,ENGINE OIL FILTER

28

21S-98-32171

PLATE,AIR CLEANER

29

22L-98-22170

PLATE, OPERATING,FLOOR LOCK

30

22L-98-22190

PLATE, CAUTION,HANDLING POSTURE

31

09963-03001

TAG

32

22K-98-22530

PLATE, CAUTION,RIGHT SIDE COVER

33

22L-98-22390

PLATE, SAFETY,TILT LOCK PIN

34

22L-98-22410

PLATE, CAUTION,DOWN THE FLOOR

35

22K-98-22540

PLATE, MARK,PC20MR

36

22K-98-21130

PLATE, MARK,PC20MR

37

22K-98-21140

PLATE, MARK,PC20MR

38

22K-98-21110

OIL CHART

39

22L-98-22160

PLATE, CAUTION,BEFORE OPERATING

40

22L-98-21150

PLATE, OPERATING,OPERATING PATTERN

41

22L-98-22322

PLATE,ROPS

41

22L-98-22321

PLATE,ROPS

41

FF8741-03130

RIVET

42

22L-98-22280

PLATE, CAUTION,CAB

43

09803-03000

PLATE, SAFETY,WINDOW OPEN

44

22L-98-18270

PLATE,URGENT ESCAPE

45

22M-98-11520

PLATE, SAFETY,BOOM SWING

46

09839-03000

PLATE, SAFETY,SAFETY LOCK LEVER

47

22L-06-28520

PLATE,FUSE BOX

Выбрано товаров: 50
