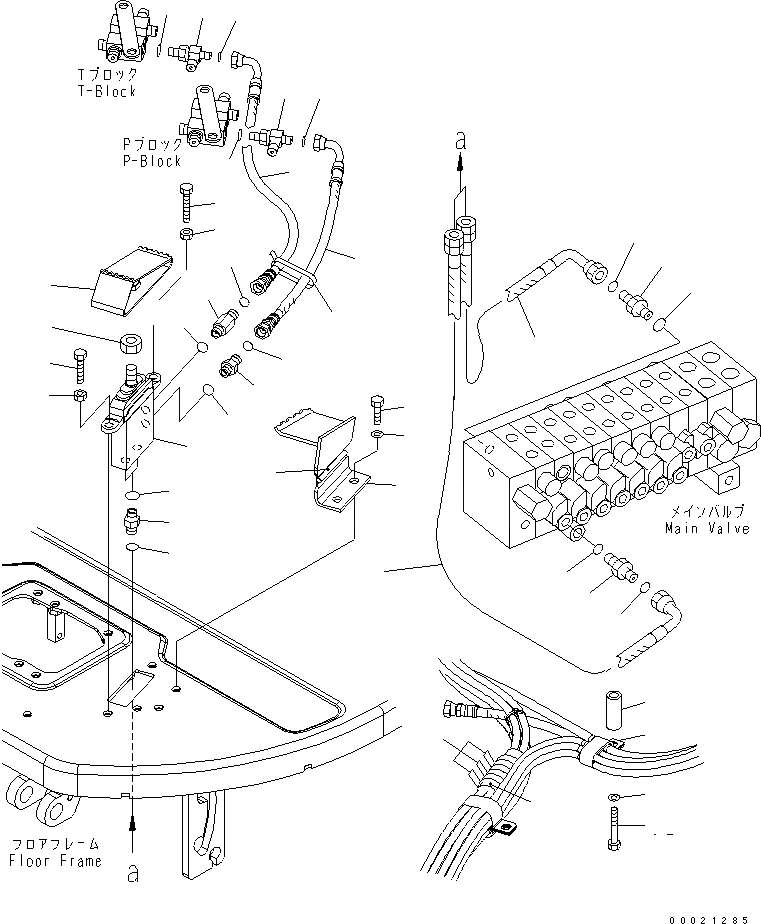

Запчасти Komatsu PC20MR-2-B ПЕДАЛЬ УПРАВЛ-Я РАБОЧ. ОБОРУД. (КОМПЛЕКТ) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

22L-973-2311

HOSE

2

02781-0021D

UNION

3

07002-11423

O-RING

4

02896-11008

O-RING

5

11Y-62-12330

TEE

6

02896-11008

O-RING

7

07002-11423

O-RING

8

22M-973-2541

PEDAL

9

01582-11411

NUT

10

702-16-01270

PILOT VALVE,(SEE FIG.Y1670-31A0)

11

01016-51045

BOLT

12

01016-51055

BOLT

13

01580-11008

NUT

14

22M-973-2521

COVER

15

22M-43-11510

HINGE (WELDED)

16

01010-D1025

BOLT

17

01643-71032

WASHER

18

11Y-62-12140

NIPPLE

19

07000-12011

O-RING

20

02896-11008

O-RING

21

11Y-62-12140

NIPPLE

22

21W-62-41780

NIPPLE

23

07000-12011

O-RING

24

02896-11008

O-RING

25

22M-62-23121

HOSE,BLUE¤ WHITE

|25

21U-62-34750

BAND¤ BLUE

|25

21U-62-34770

BAND¤ WHITE

26

22M-973-2511

HOSE,GREEN¤ RED

|26

21U-62-34730

BAND¤ GREEN

|26

21U-62-34760

BAND¤ RED

27

08034-20519

BAND

28

20U-62-26170

SEAT

29

08034-20834

BAND

30

195-01-33980

SPACER

31

04435-52210

CLIP

32

01010-81070

BOLT

33

01643-31032

WASHER
