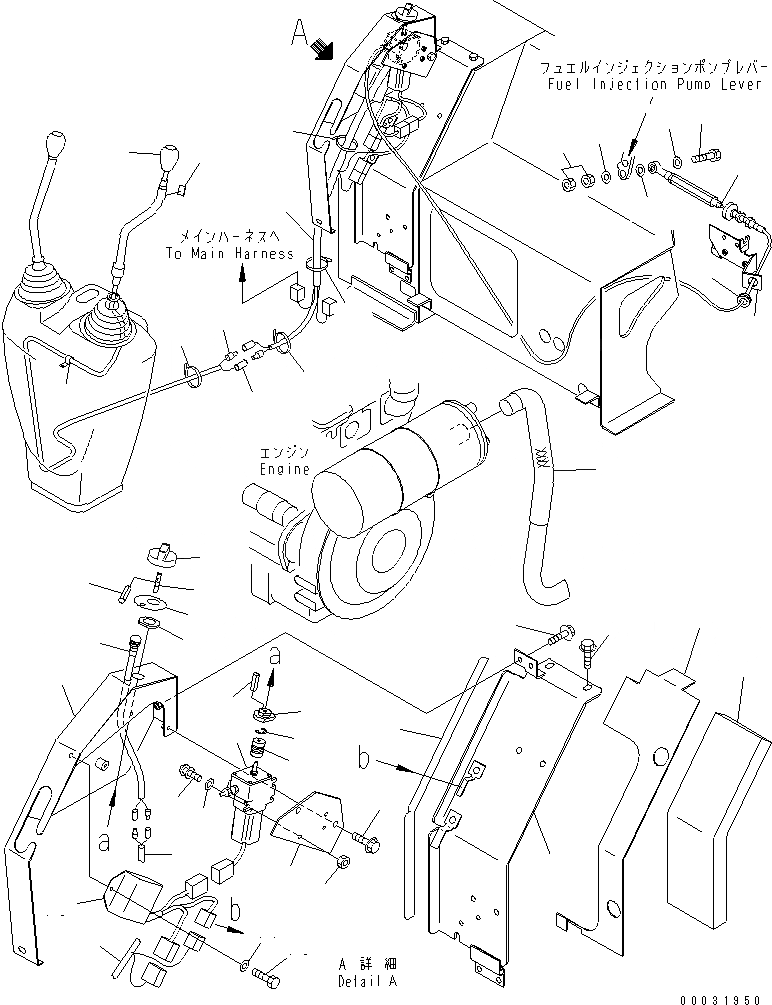

Запчасти Komatsu PC20MR-1 ONE TOUCH DECEL (ДЛЯ КАБИНЫ) КОМПОНЕНТЫ ДВИГАТЕЛЯ

1

20W-972-3111

MOTOR ASS'Y

2

01023-10620

SCREW

3

01580-10605

NUT

4

01640-20610

WASHER

5

21W-43-21290

JOINT

6

21W-43-21272

SHAFT

7

21W-43-21283

BOSS

8

21W-43-21260

BOSS

9

21W-43-21241

PIN

10

04025-00308

PIN

11

21W-43-21230

PLATE

12

21W-43-21251

DIAL

13

21W-98-21582

PLATE, OPERATING

14

21W-06-21310

LAMP

15

20U-06-21381

CONTROLLER ASS'Y

16

01010-80816

BOLT

17

01643-30823

WASHER

18

20C-972-3150

WIRING HARNESS

19

08036-10810

CLIP

20

08034-20414

BAND

21

20P-06-81820

SWITCH

22

08021-00400

CONNECTOR

23

08022-04001

CONNECTOR

24

08034-30521

BAND

25

21W-98-21620

PLATE

26

22K-972-1140

PLATE

27

01435-00816

BOLT

28

20C-972-3142

BRACKET

29

08037-01610

GROMMET

30

01010-80630

BOLT

31

01643-30623

WASHER

32

01643-30623

WASHER

33

01580-10605

NUT

34

22K-972-1112

BRACKET

35

22K-972-1131

COVER

36

01435-00816

BOLT

37

20C-972-3160

SLEEVE

38

22K-43-15170

SHEET

39

22K-43-15180

SHEET

40

22K-43-15161

SHEET
