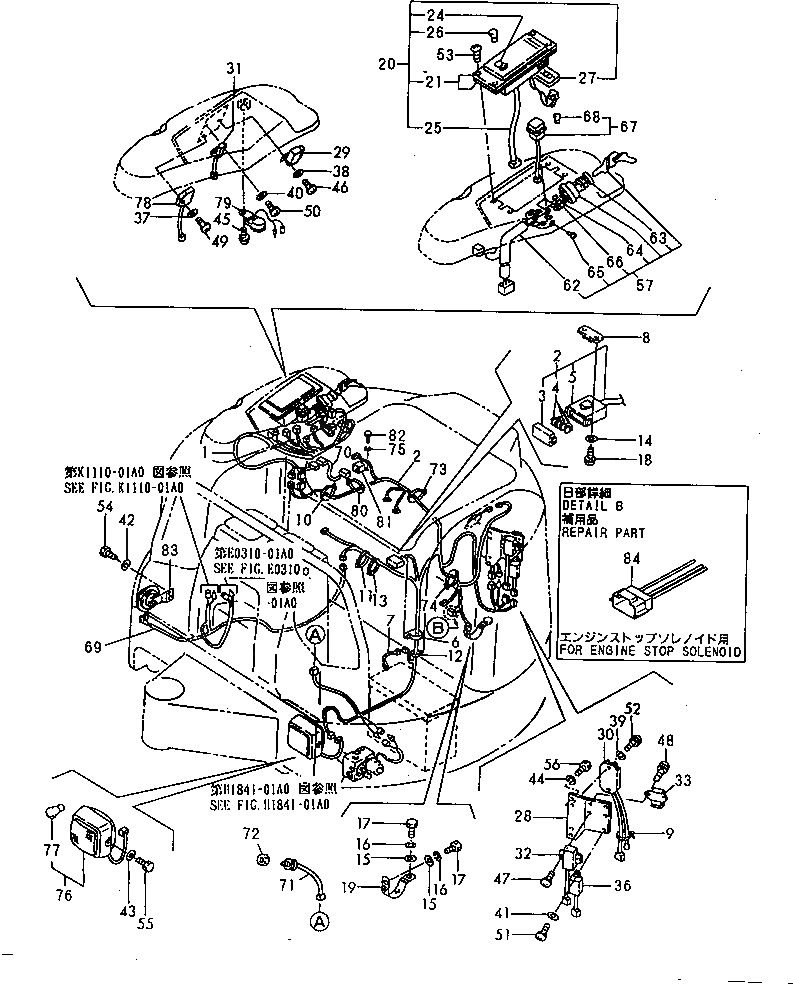

Запчасти Komatsu PC20FR-2 WIRRING (Э/ПРОВОДКА) ЭЛЕКТРИКА
№
Артикул
Название
Примечание
Количество
1
YM172183-16502
WIRING HARNESS,WIRE
2
YM172183-16511
WIRING HARNESS,WIRE
3
YM172183-16590
COVER
4
YM29420-150000
FUSE
5
YM172183-16580
BODY,FUSE
6
YM1A1380-59480
CLAMP
7
YM172183-16540
LINK,FUSIBLE
8
YM172183-16550
BRACKET,FUSE
9
YM194202-56460
BAND
10
YM194202-56460
BAND
11
YM172122-79930
CLAMP
12
YM194202-56460
BAND
13
YM172183-16560
CLIP,HOSE
14
YM22137-060000
WASHER
15
YM22137-100000
WASHER
16
YM22217-100000
WASHER
17
YM26116-100162
BOLT
18
YM26557-060122
SCREW
19
YM933171-15801
WIRE,EARTH
20
YM172162-17101
BOX ASS'Y,INDICATOR
21
YM172162-17270
COVER,FRONT
24
YM172162-17240
FO METER ASS'Y,FUEL
25
YM172162-17250
HARNESS
26
YM172162-17120
VALVE
27
YM172162-17130
HOURMETER
28
YM17218317100K
BRACKET
29
YM119247-77100
RELAY,SAFETY
30
YM119640-77711
LIMITER,CURRENT
31
YM121522-77721
INDICATOR,CHARGING
32
YM129155-77810
REGISTOR
33
YM119650-77910
RELAY,GLOW
36
YM119632-77922
TIMER
37
YM22137-060000
WASHER
38
YM22137-060000
WASHER
39
YM22137-060000
WASHER
40
YM22137-060000
WASHER
41
YM22137-060000
WASHER
42
YM22217-060000
WASHER
43
YM22217-060000
WASHER
44
YM22217-080000
WASHER
45
YM26022-060122
SCREW
46
YM26022-060122
SCREW
47
YM26022-060122
SCREW
48
YM26022-060122
SCREW
49
YM26022-060162
SCREW
50
YM26022-060162
SCREW
51
YM26022-060162
SCREW
52
YM26022-060252
SCREW
53
YM26589-040202
SCREW
54
YM26116-060162
BOLT
55
YM26116-060162
BOLT
56
YM26116-080162
BOLT
57
YM172983-17100
SWITCH ASS'Y,STARTER
62
YM172983-16520
WIRING HARNESS,STARTER
63
YM172964-17120
NUT,RING
64
YM172983-16530
TUBE
65
YM26587-040082
SCREW
66
YM172987-16530
PIPE,FUEL
67
YM172141-17190
SWITCH,WORK LAMP
68
YM172141-17230
BULB
69
YM172183-16521
WIRING HARNESS,WIRE
70
YM172183-16620
WIRING HARNESS,WIRE
71
YM172164-17140
SWITCH
72
YM26776-160002
NUT
73
YM194202-56460
BAND
74
YM194202-56460
BAND
75
YM22217-060000
WASHER
76
YM172183-17120
LAMP ASS'Y,HEAD
77
YM172156-17420
BULB
78
YM172141-17141
UNIT,CHECKER
79
YM172141-17150
BUZZER
80
YM194202-56460
BAND
81
YM119650-77910
RELAY,GLOW
82
YM26116-060162
BOLT
83
YM933110-05300
HORN
84
YM172183-16900
CONNECTOR
Выбрано товаров: 76
