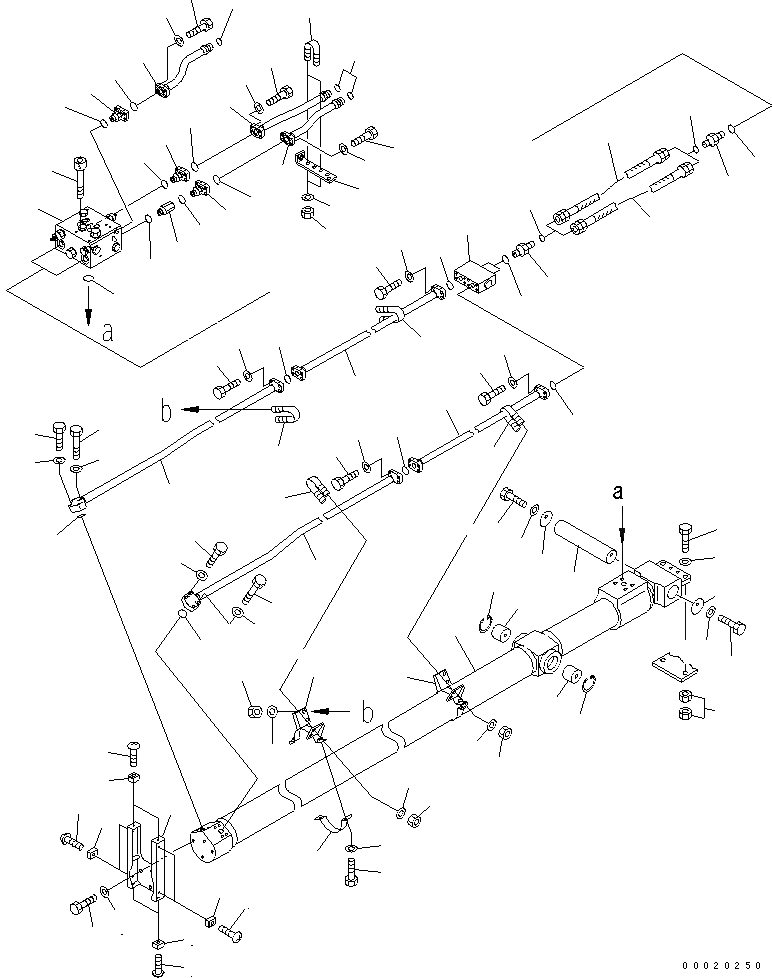

Запчасти Komatsu PC200SC-7-M1 TELESCO РУКОЯТЬ (SLIDE ЦИЛИНДР) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

20Y-957-5111

CYLINDER

2

01010-81675

BOLT

3

01643-31645

WASHER

4

01580-11613

NUT

5

20Y-957-5251

BRACKET

6

20Y-957-5260

PAD

7

01220-40812

SCREW

8

01010-81230

BOLT

9

01643-31232

WASHER

10

20Y-957-5291

TUBE

11

20Y-957-5311

TUBE

12

07372-21045

BOLT

13

01643-51032

WASHER

14

07372-21060

BOLT

15

01643-51032

WASHER

16

07372-21035

BOLT

17

01643-51032

WASHER

18

07000-13030

O-RING

19

20Y-957-6140

TUBE

20

20Y-957-5271

BAND

21

20Y-957-5281

BRACKET

22

01010-81035

BOLT

23

01643-51032

WASHER

24

07283-22738

CLIP

25

01599-01011

NUT

26

01643-31032

WASHER

27

20Y-957-5350

BLOCK

28

07372-21035

BOLT

29

01643-51032

WASHER

30

07000-13030

O-RING

31

201-62-71820

JOINT

32

21K-62-34310

FLANGE

33

02781-00628

UNION

34

07002-12434

O-RING

35

02896-11018

O-RING

36

02756-00605

HOSE

37

20Y-957-3860

TUBE

38

20Y-957-3850

TUBE

39

20Y-957-3840

TUBE

40

02896-11018

O-RING

41

07000-13030

O-RING

42

07372-21035

BOLT

43

01643-51032

WASHER

44

20Y-957-5714

VALVE ASS'Y

45

07000-13035

O-RING

46

01253-71425

BOLT

47

20Y-957-5240

PIN

48

04065-06020

RING

49

20Y-957-5230

PIN

50

20Y-957-2280

PLATE

51

01010-81225

BOLT

52

01643-31232

WASHER

53

20Y-957-6890

BRACKET

54

07283-32738

CLIP

55

01597-01009

NUT

56

01643-31032

WASHER
