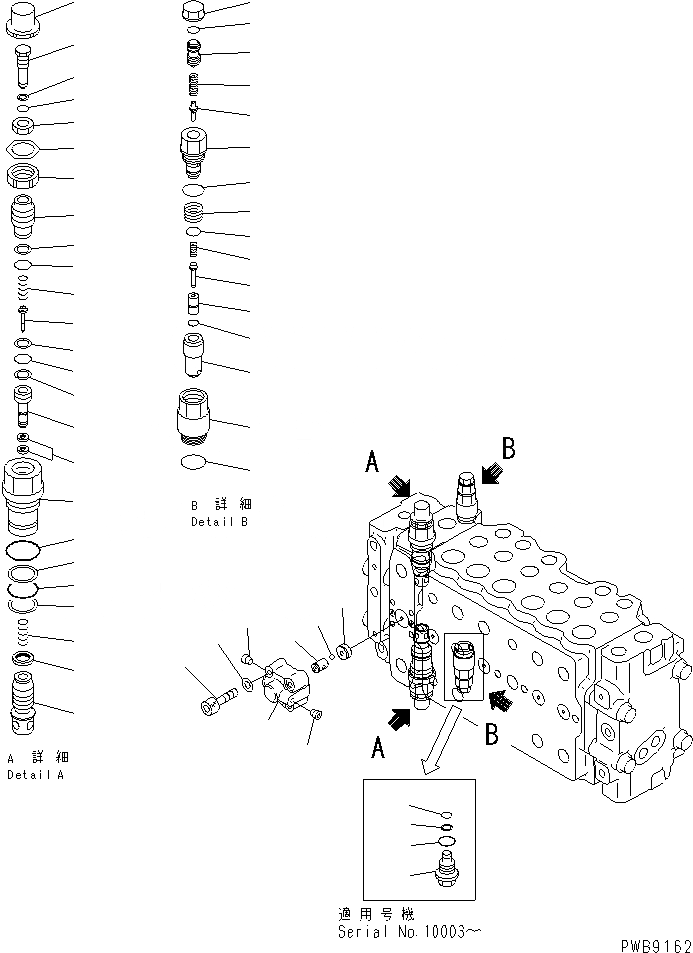

Запчасти Komatsu PC200SC-6 ОСНОВН. КЛАПАН (-АКТУАТОР) (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-47-13903

CONTROL VALVE

|1

723-47-13901

CONTROL VALVE

|1

723-47-13900

CONTROL VALVE

|1

723-47-12302

CONTROL VALVE

|1

723-47-12301

CONTROL VALVE

|1

723-47-12300

CONTROL VALVE

|1

BODY SUB ASS'Y

|1

723-46-48100

VALVE ASS'Y

1

SLEEVE

2

VALVE

3

SEAT

4

POPPET

5

PLUG

6

SCREW

7

NUT

8

NUT

9

SPRING

10

SPRING

11

PLATE

12

CAP

13

SEAL

14

SEAL

15

700-93-11320

O-RING

16

723-46-41950

RING

17

07002-13634

O-RING

18

O-RING

19

RING

20

O-RING

21

RING,BACK-UP

22

01252-60845

BOLT

23

01643-50823

WASHER

|24

723-40-66300

VALVE ASS'Y

24

CASE

25

SEAT

26

SEAT

27

BALL

28

PLUG

|29

723-20-60101

VALVE ASS'Y,SUCTION AND SAFETY

|29

723-20-60101

VALVE ASS'Y,SUCTION AND SAFETY

29

SLEEVE

30

SLEEVE

31

POPPET

32

PISTON

33

PLUG

34

POPPET

35

SCREW

36

SPRING

37

SPRING

38

SPRING

39

SEAL

40

SEAL

41

709-25-11390

O-RING

42

O-RING

43

O-RING

44

NUT

45

709-74-91510

PLUG

46

709-25-11390

O-RING

47

07000-11009

O-RING

48

07001-01009

RING,BACK-UP
