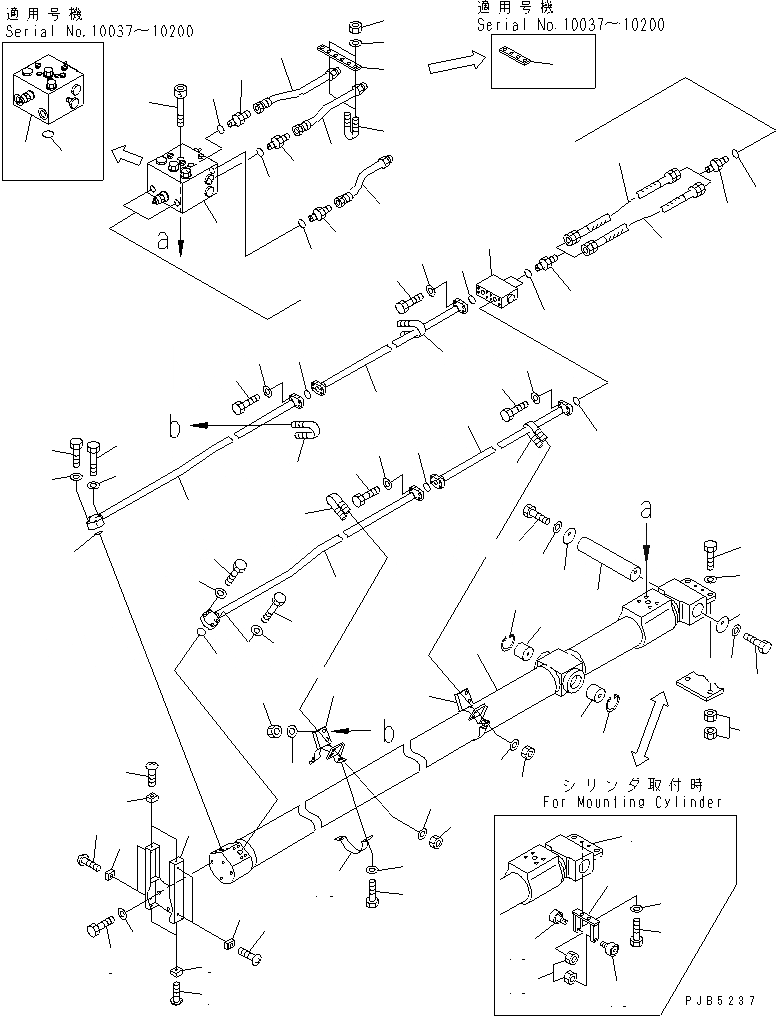

Запчасти Komatsu PC200SC-6 TELESCO РУКОЯТЬ SLIDE ЦИЛИНДР(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

20Y-957-5111

CYLINDER,(SEE FIG. Y1957-21A0)

|1

20Y-957-5110

CYLINDER

2

01010-81675

BOLT

3

01643-31645

WASHER

4

01580-11613

NUT

5

20Y-957-5251

BRACKET

6

20Y-957-5260

PAD

7

01220-40812

SCREW

8

01010-81230

BOLT

9

01643-31232

WASHER

10

20Y-957-5290

TUBE,L.H.

11

20Y-957-5310

TUBE,R.H.

12

07372-21045

BOLT

13

07372-21060

BOLT

14

07372-21035

BOLT

15

01643-51032

WASHER

16

07000-13030

O-RING

17

20Y-957-6140

TUBE

18

20Y-957-5271

BAND

19

20Y-957-5281

BRACKET

20

01010-81035

BOLT

21

01643-51032

WASHER

22

07283-22738

CLIP

23

01599-01011

NUT

24

01643-31032

WASHER

25

20Y-957-5350

BLOCK

26

07372-21035

BOLT

27

01643-51032

WASHER

28

07000-13030

O-RING

29

07230-20628

UNION

30

07002-12434

O-RING

31

07121-00605

HOSE

32

20Y-957-5360

TUBE,R.H.

33

20Y-957-5380

TUBE,L.H.

34

20Y-957-5370

TUBE,L.H.

35

20Y-957-5712

VALVE

|35

20Y-957-5711

VALVE

|35

20Y-957-5710

VALVE

35A

07000-13035

O-RING

36

01253-71420

BOLT

37

20Y-957-5240

PIN

38

04065-06020

RING

39

20Y-957-5230

PIN

40

20Y-957-2280

PLATE

41

01010-81225

BOLT

42

01643-31232

WASHER

43

20Y-957-5340

CLAMP

|43

20Y-957-5390

CLAMP

44

07283-32738

CLIP

45

01597-01009

NUT

46

01643-31032

WASHER

47

20Y-957-5210

BRACKET

48

20Y-957-5220

CAM FOLLOWER

49

01582-11210

NUT

50

01010-81230

BOLT

51

01643-31232

WASHER
