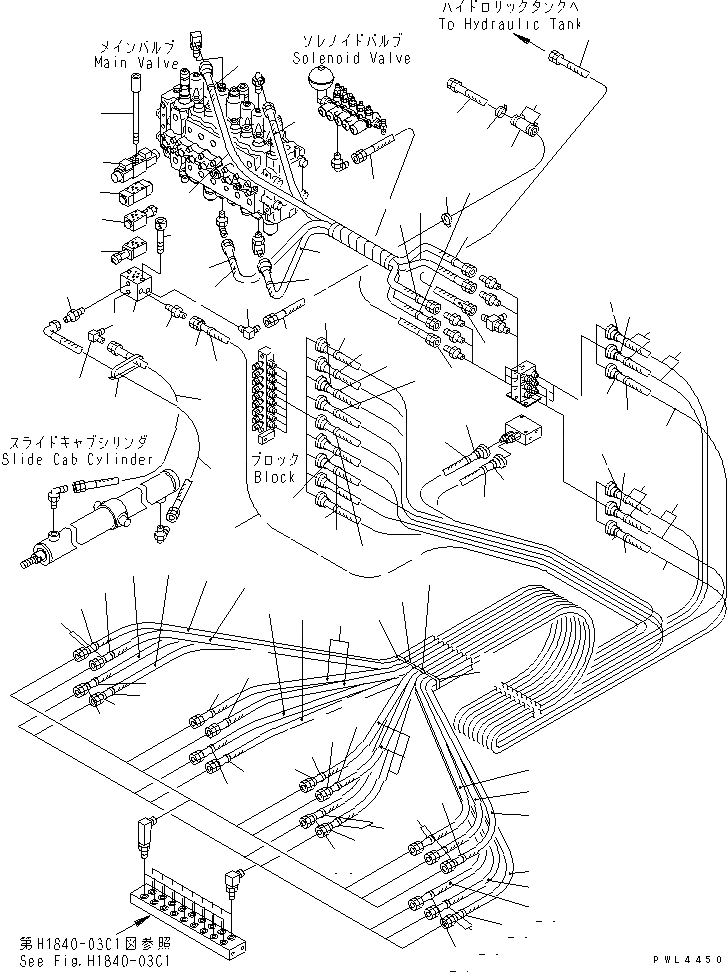

Запчасти Komatsu PC200SC-6 ОСНОВН. ЛИНИЯ PPC (SLIDE ЦИЛИНДР И PPC СОЕД-Е ШЛАНГИ) (ДЛЯ SLIDE КАБИНА)(№-) ГИДРАВЛИКА

1

21N-62-35720

HOSE

2

209-62-77730

HOSE¤ 2100MM

3

201-62-71940

HOSE¤ 1300MM

4

20Y-62-22592

HOSE¤ 900MM

5

20Y-62-23862

HOSE

6

20Y-62-22790

BAND¤ RED

7

20Y-62-22820

BAND¤ BLUE

8

20Y-62-22850

BAND¤ GREEN

9

20Y-62-26690

VALVE

|9

07000-01009

O-RING

10

20Y-62-26710

BLOCK

11

20Y-62-26720

VALVE

|11

07000-01009

O-RING

12

20Y-62-26790

VALVE

|12

07000-01009

O-RING

13

20Y-62-26731

VALVE

14

20Y-62-26741

BOLT KIT

15

01252-70880

BOLT

16

205-62-53461

ELBOW

17

07238-10315

CONNECTOR

18

566-35-14370

UNION

19

07102-20320

HOSE

20

08034-00536

BAND

21

209-62-77940

HOSE¤ 600MM

22

20Y-62-26641

HOSE

23

20Y-62-26661

HOSE

24

20Y-62-26671

HOSE

25

20Y-62-26681

HOSE

26

20Y-62-22790

BAND¤ RED

27

20Y-62-22810

BAND¤ YELLOW

28

20Y-62-22820

BAND¤ BLUE

29

20Y-62-22830

BAND¤ WHITE

30

08034-00519

BAND

31

20Y-62-26641

HOSE

32

20Y-62-22790

BAND¤ RED

33

20Y-62-22820

BAND¤ BLUE

34

20Y-62-22830

BAND¤ WHITE

35

20Y-62-22840

BAND¤ BLACK

36

20Y-62-22850

BAND¤ GREEN

37

08034-00519

BAND

38

20Y-62-26651

HOSE

39

20Y-62-26661

HOSE

40

20Y-62-22830

BAND¤ WHITE

41

20Y-62-22840

BAND¤ BLACK

42

20Y-62-22850

BAND¤ GREEN

43

20Y-62-22860

BAND¤ BROWN

44

08034-00519

BAND

45

203-62-66220

HOSE¤ 4200MM

46

20Y-62-26641

HOSE

47

20Y-62-26681

HOSE

48

20Y-62-22790

BAND¤ RED

49

20Y-62-22810

BAND¤ YELLOW

50

20Y-62-22820

BAND¤ BLUE

51

20Y-62-22830

BAND¤ WHITE

52

20Y-62-22850

BAND¤ GREEN

53

08034-00519

BAND

54

21N-62-35841

HOSE¤ 2500MM

55

205-62-72140

COVER

56

08034-00536

BAND

57

08034-00876

BAND
